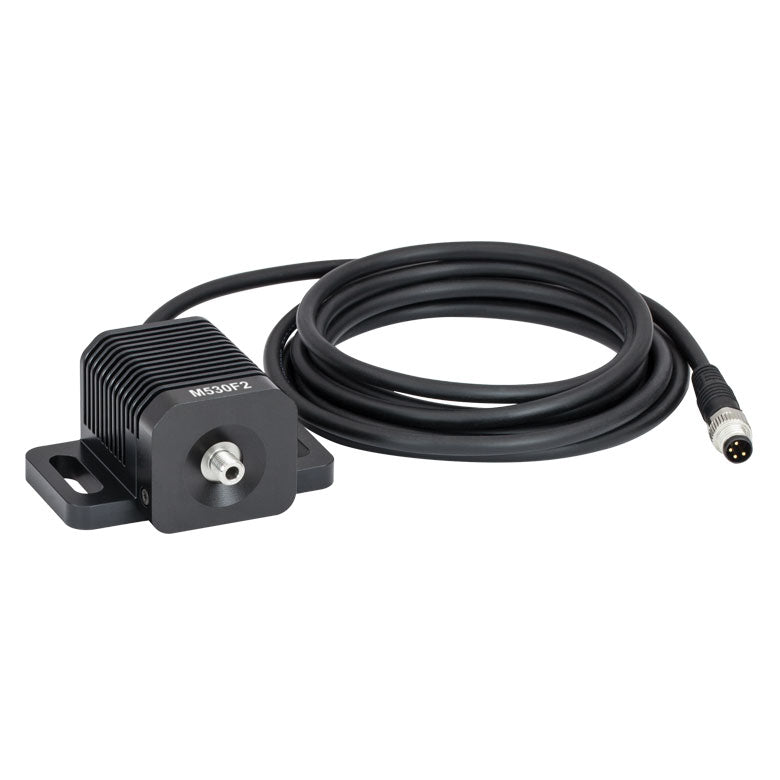

TH-M530F2 - 530 nm, 6.8 mW (Min) Fiber-Coupled LED, 1000 mA, SMA

TH-M530F2 - 530 nm, 6.8 mW (Min) Fiber-Coupled LED, 1000 mA, SMA

Wavelength 530nm

Typical Opsin C1V1, VChR1

Output Power 9.6 mW

Color Green

Typical Ø200 µm Core Fiber Output Power 3.2 mW

Minimum Ø400 µm Core Fiber Output Power 6.8 mW

Typical Ø400 µm Core Fiber Output Power 9.6 mW

Maximum Current (CW) 1000 mA

Forward Voltage 3.1 V

Bandwidth (FWHM) 30 nm

Typical Lifetime >50 000 h

Product Drawing
