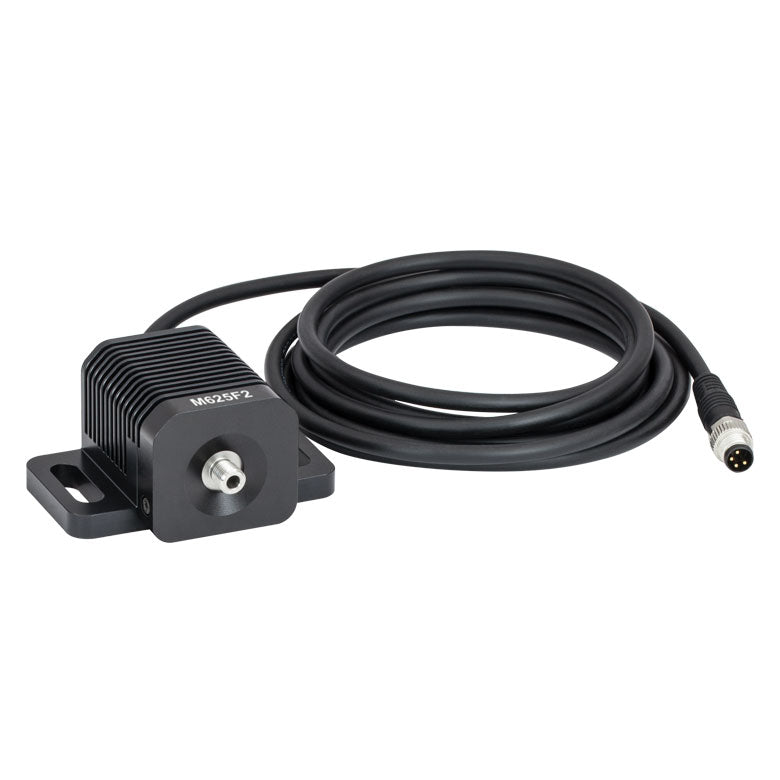

TH-M625F2 - 625 nm, 13.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA

TH-M625F2 - 625 nm, 13.2 mW (Min) Fiber-Coupled LED, 1000 mA, SMA

Product Drawing

Wavelength 625nm

Typical Opsin ReChR

Output Power 17.5 mW

Color Red

Typical Ø200 µm Core Fiber Output Power 5.7 mW

Minimum Ø400 µm Core Fiber Output Power 13.2 mW

Typical Ø400 µm Core Fiber Output Power 17.5 mW

Maximum Current (CW) 1000 mA

Forward Voltage 2.2 V

Bandwidth (FWHM) 15 nm

Typical Lifetime >50 000 h
