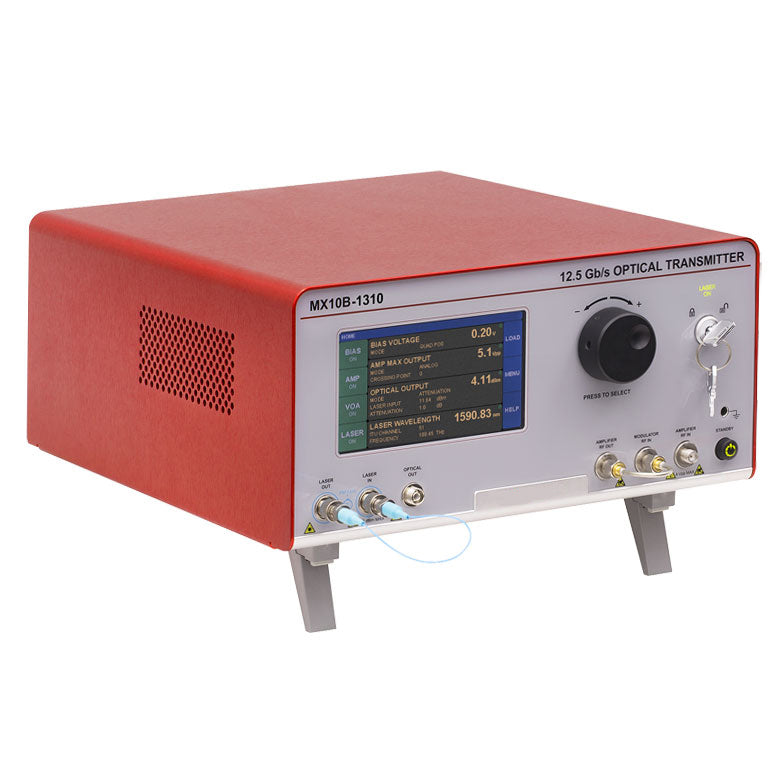

TH-MX10B-1310 - 12.5 Gb/s Max Digital Reference Transmitter, 1310 nm Laser, Limiting Amplifier
Product Drawing
| Internal Laser Specificationsa
|
| Item # Suffix |
THMX10B
|
THMX10B-LB |
THMX10B-1310 |
| Laser Type |
C-Band Tunable |
L-Band Tunable |
Fixed Wavelength |
| Wavelength Range |
1527.6 - 1565.5 nm |
1570.0 - 1608.8 nm |
1310 nm |
| Frequency Range |
191.50 - 196.25 THz |
186.35 - 190.95 THz |
- |
| Optical Output Power |
13.5 dBm |
13.5 dBm |
13.5 dBm |
| Frequency Accuracy |
±1.5 GHz |
±1.5 GHz |
- |
| Tuning Resolution |
50 GHz |
50 GHz |
N/A |
| Fine Tuning Resolution |
1 MHz |
1 MHz |
N/A |
| Tuning Speed (Between Wavelengths) |
10 s |
10 s |
N/A |
| Fine Tuning Range |
±30 GHz |
±30 GHz |
N/A |
| Side Mode Suppression Ratio |
55 dB |
55 dB |
35 dB (Min) |
| Optical Signal Noise Ratio |
60 dB |
60 dB |
- |
| Intrinsic Linewidth |
10 kHz |
10 kHz |
2 MHz |
| Relative Intensity Noise |
-145 dB/Hz (Max) |
-145 dB/Hz (Max) |
- |
| Back Reflection |
-14 dB (Max) |
-14 dB (Max) |
- |
| Polarization Extinction Ratio |
18 dB (Min) |
18 dB (Min) |
20 dB |
| Key System Specificationsa
|
| Item # |
THMX10B-1310 |
|
Bit Rate (Maximum)
|
12.5 Gb/s |
| Internal Laser Typeb |
Fixed Wavelength |
| Internal Laser Wavelengthb |
1310 nm |
|
RF Amplifier Gain
|
34 dB |
| Small Signal Bandwidth |
7 GHz |
