TH-MX40G-850 - Calibrated Electrical-to-Optical Converter, Fixed 852 nm (Typ.) Laser, 40 GHz
TH-MX40G-850 - Calibrated Electrical-to-Optical Converter, Fixed 852 nm (Typ.) Laser, 40 GHz

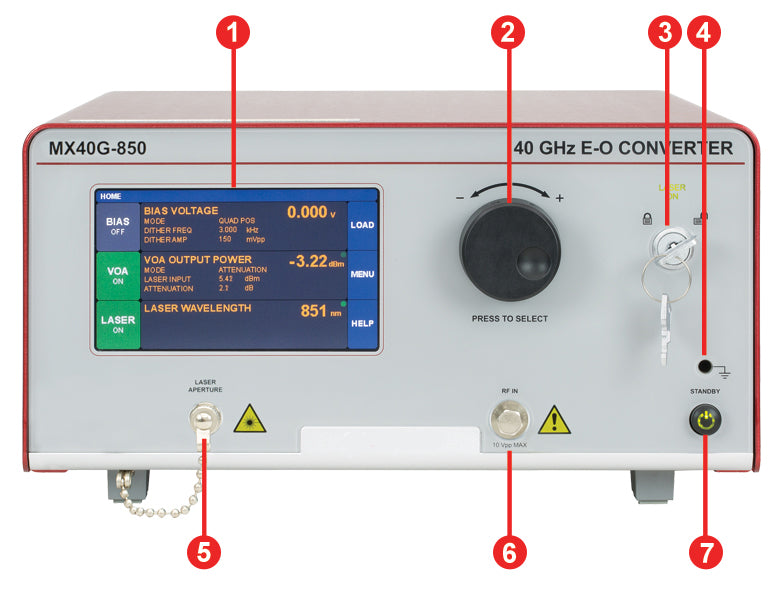

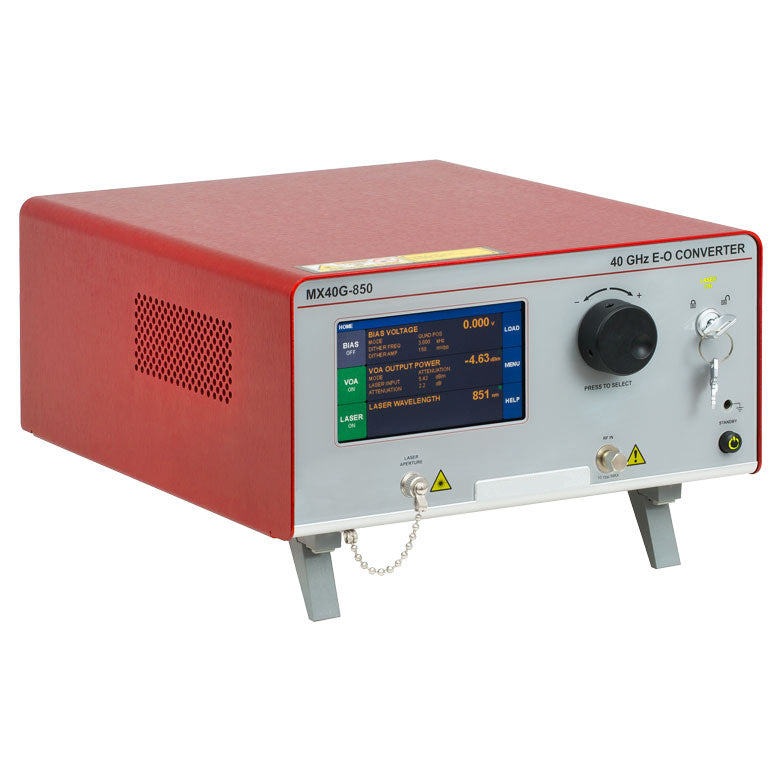

| Description | |
|---|---|
| 1 | Touchscreen Display and Control |
| 2 | Value Adjustment Knob |
| 3 | Key Switch and Status Indicator Light for Internal Laser |
| 4 | Earth Ground Port for ESD Wrist Strap Banana Plug |
| 5a | Optical Out: Final Output from Modulator |
| 6b | Modulator RF In: Signal to Modulator, 2.92 mm Female |
| 7 | On/Standby Button |
| Internal Laser Specificationsa | |
|---|---|
| Item # | THMX40G-850 |
| Laser Type | Fixed Wavelength |
| Wavelength | 852 nm (Typ.) |
| Frequency Range | - |
| Optical Output Power | 10 dBm |
| Frequency Accuracy | - |
| Tuning Resolution | N/A |
| Fine Tuning Resolution | N/A |
| Tuning Speed (Between Wavelengths) | N/A |
| Fine Tuning Range | N/A |
| Side Mode Suppression Ratio | 35 dB (Min) |
| Optical Signal Noise Ratio | - |
| Intrinsic Linewidth | 2 MHz |
| Relative Intensity Noiseb | - |
| Back Reflection | - |
| Polarization Extinction Ratio | 20 dB |
|

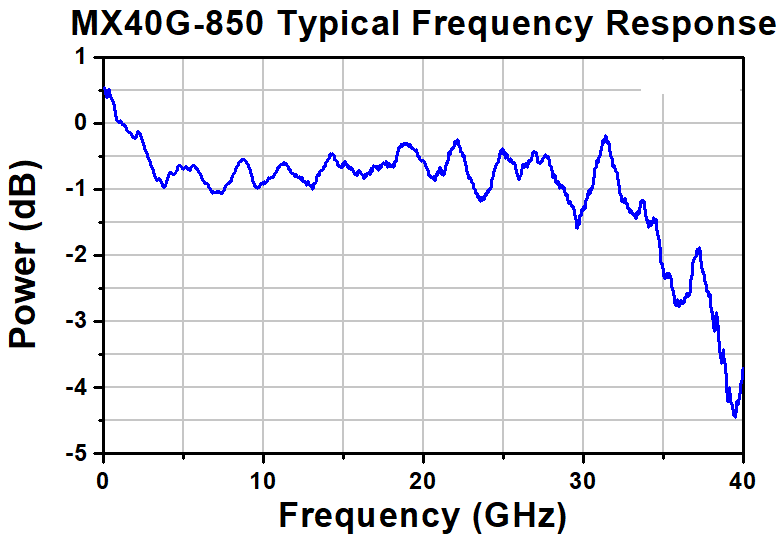

Uncertainty of Supplied Magnitude Responsea |
40 MHz to 20 GHz: ±1.20 dB 20 GHz to 40 GHz: ±2.30 dB |
|
| Input RF Connector Type | 2.92 mm Connectorb | |
| Internal Laser | (See Table Below) | |
| External Laserd |
Wavelength Rangee | N/A |
| Optical Input Power | N/A | |
| Power Calibration Points | 850 nm | |
| RF Optical Extinction Ratio | 13 dB (Typical Max) | |
| Modulator Drive Voltage (Vπ)f | 4.8 Vpp | |
| Optical Insertion Loss (Typical)g | 5.5 dB | |
| Absolute Stabilityh | 0.2 dB (Dither Mode)i | |
| Relative Stabilityk | 0.2 dB (Dither Mode)i | |
| Internal Optical Fiber | SM Port: 780HP | |
| Fiber Connectors | FC/PC, 2.0 mm Narrow Key | |
| Internal Laser Type | Fixed Wavelength |
| Internal Laser Wavelength | 852 nm (Typ.) |
| External Laser Support | None |
| Input RF Connector Type | 2.92 mm Connectorc |
