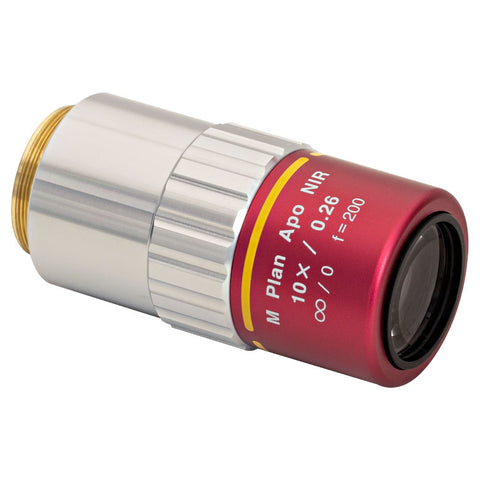

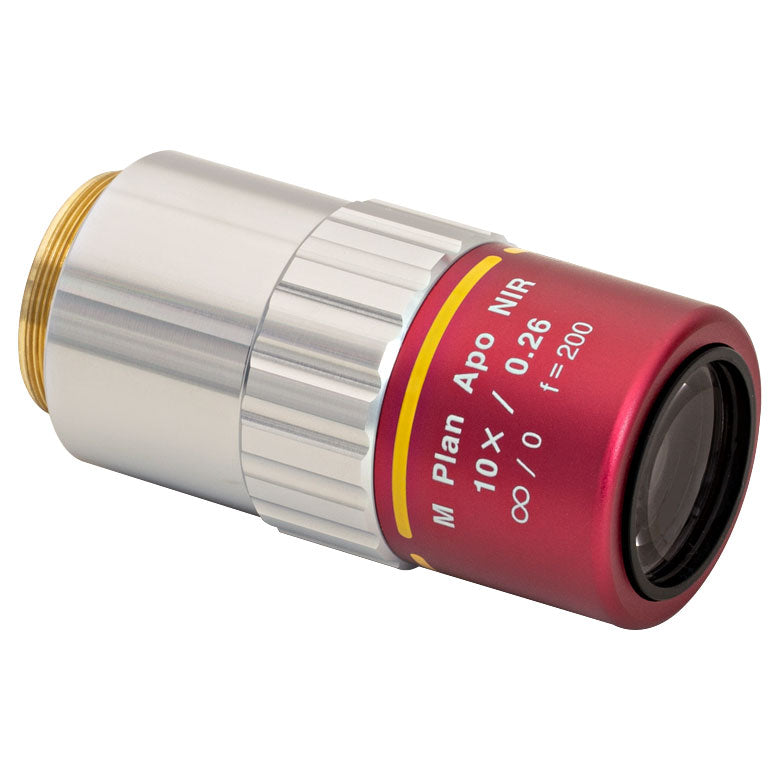

TH-MY10X-823 - 10X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.26 NA, 30.5 mm WD

TH-MY10X-823 - 10X Mitutoyo Plan Apochromat Objective, 480 - 1800 nm, 0.26 NA, 30.5 mm WD

• Long Working Distance
• Infinity-Corrected Plan Apochromat Design
• M26 x 0.706 Threading
• Designed for a Tube Lens Focal Length of 200 mm
• 95 mm Parfocal Length

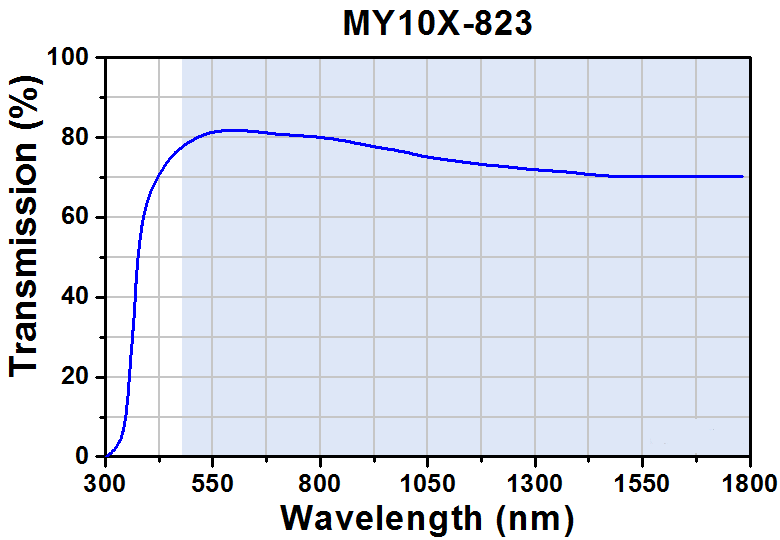

Wavelength Range 480 - 1800 nm

Magnification 10X

Working Distance 30.5  mm

Effective Focal Length 20 mm

Numerical Aperture 0.26

Entrance Pupil Diameter 10.4 mm

Resolution 1.3 µm

Optical Field Number 24

Parfocal Length 95 mm

Cover Glass Thickness 0 mm

AR Coating Reflectance Proprietary

Objective Threading M26 x 0.706; 5 mm Depth

Product Drawing
