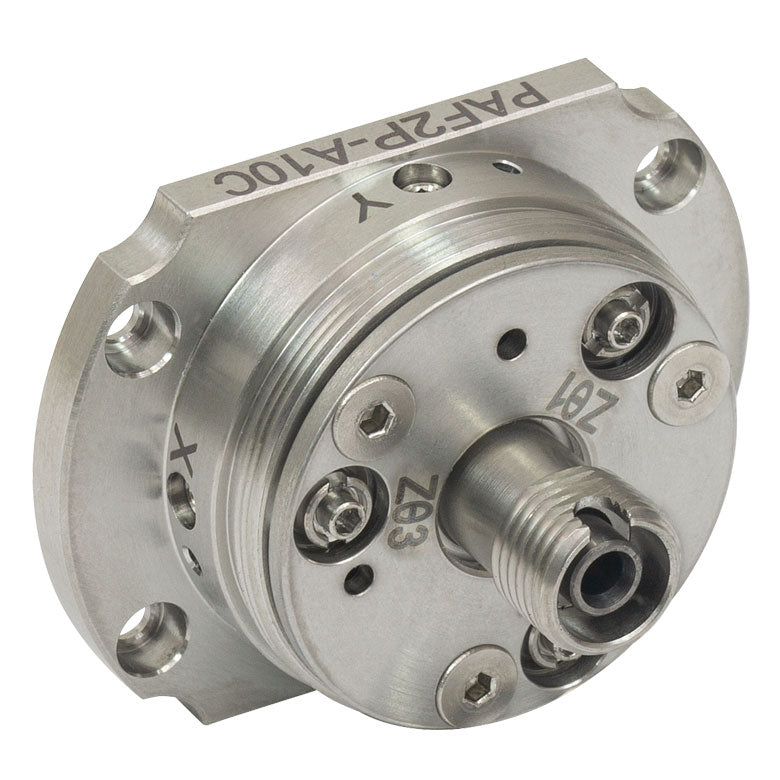

TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist
TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist
TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist
Roll over image to zoom in Click on image to zoom
TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm WaistTH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm WaistTH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist

TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist

Fosco ConnectSKU: THPAF2P-A10C
Price:
$ 850.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-PAF2P-A10C - Achromatic FiberPort, FC/PC, f = 10.0 mm, 1050 - 1700 nm, Ø1.99 mm Waist

Product Drawing

EFL 10.0 mm

Input Mode Field Diameter 10.4 µm

Output 1/e2 Waist Diameter 1.99 mm

Max Waist Distance 922 mm

Divergence 0.990 mrad

Clear Aperture >4.5 mm

NA 0.23

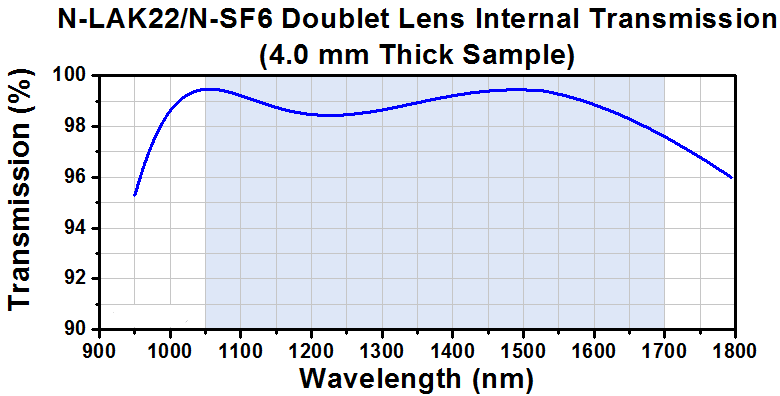

Wavelength range of the antireflection coating 1050 - 1700 nm

The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.87" (22.2 mm)
