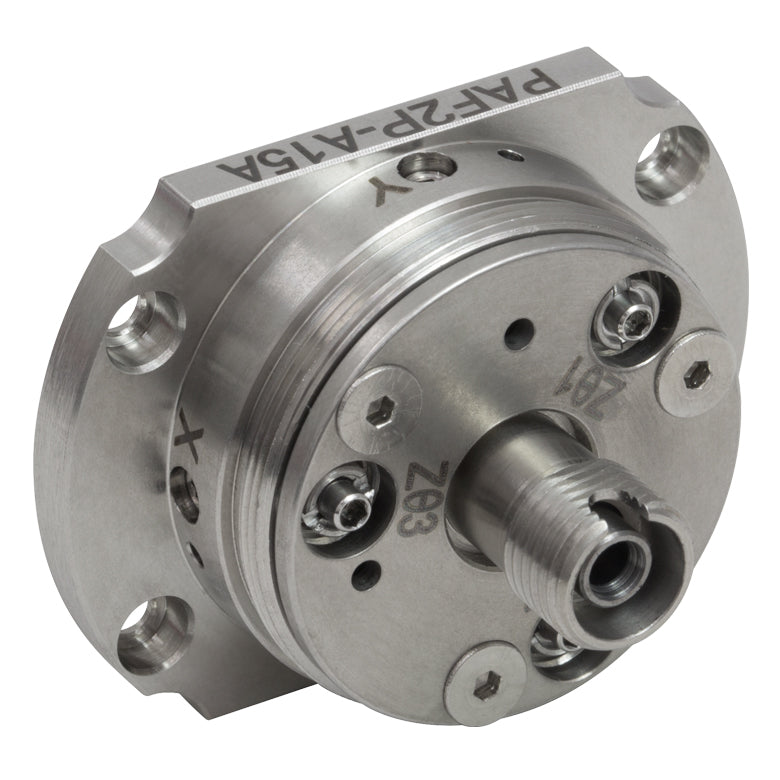

TH-PAF2P-A15A - Achromatic FiberPort, FC/PC, f = 15.0 mm, 400 - 700 nm, Ø2.46 mm Waist

Product Drawing

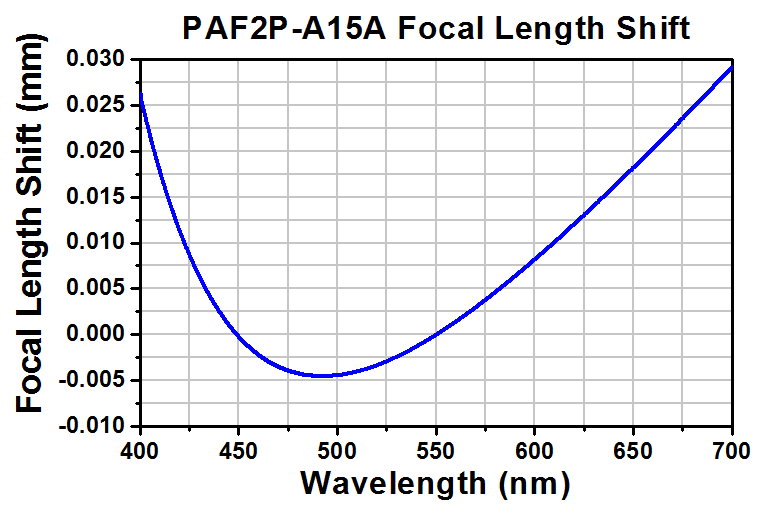

EFL 15.0 mm

Input Mode Field Diameter 3.5 µm

Output 1/e2 Waist Diameter 2.46 mm

Max Waist Distance 5277 mm

Divergence 0.233 mrad

Clear Aperture >4.5 mm

NA 0.15

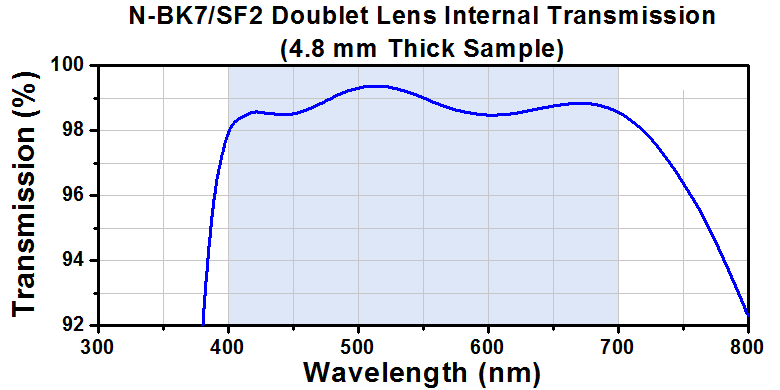

Wavelength range of the antireflection coating 400 - 700 nm

The length from the tip of the connector bulkhead to the face of the FiberPort flange 0.87" (22.2 mm)
