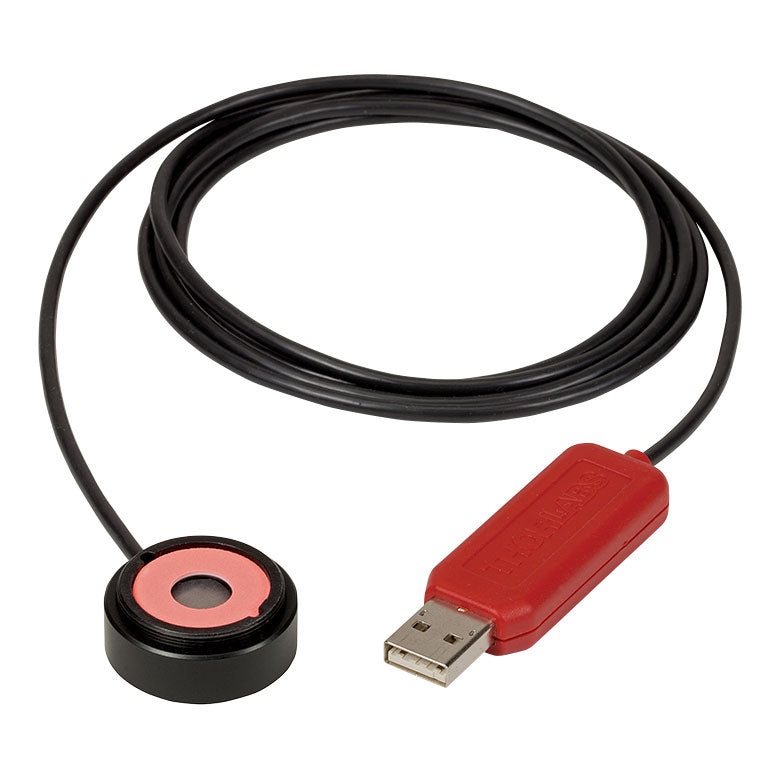

TH-PM16-120 - USB Power Meter, Standard Photodiode Sensor, Si, 400 - 1100 nm, 50 mW Max
TH-PM16-120 - USB Power Meter, Standard Photodiode Sensor, Si, 400 - 1100 nm, 50 mW Max
Detector Type Silicon Photodiode
Wavelength Range 400 - 1100 nm
Optical Power Range 50 nW - 50 mW
| Item #a | THPM16-120 |
|---|---|
| Detector Type | Silicon Photodiode |
| Wavelength Range | 400 - 1100 nm |
| Optical Power Range | 50 nW - 50 mW |
| Aperture Size | Ø9.5 mm |
| Resolution | <1 nW |
| ND Filter | Reflective ND (OD1) |
|
Sensor Housing Dimensions |
Ø30.5 mm x 12.7 mm (1.2" x 0.50") |
| Post Mounting | 8-32 and M4 Combined Tap |
