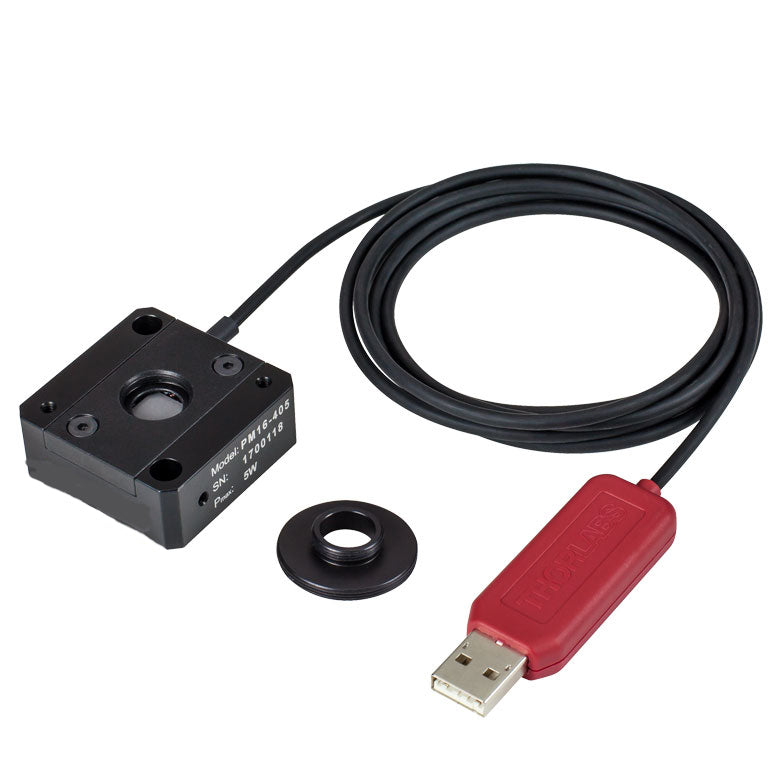

TH-PM16-405 - USB Power Meter, Thermal Sensor, 0.19 - 20 µm, 5 W Max
| Detector Type | Thermal Surface Absorber (Thermopile) |
| Wavelength Range | 190 nm - 20 µm |
| Optical Power Range | 100 µW - 5 W |
| Max Optical Power Density | 1.5 kW/cm² (Avg.) |
| Aperture Size | Ø10 mm (Ø0.39") |
| Resolution | 5 µW |
| Sensor Coating | High Power Broadband |
|
Sensor Housing Dimensions |
(1.60" x 1.60" x 0.63") |
| Post Mounting | Universal 8-32 / M4 Taps (Post Not Included) |
| 30 mm Cage Mounting | Two 4-40 Tapped Holes & Two Ø6 mm Through Holes |
| Aperture Threads | Internal SM05 |
| Removable Heat Sink | - |
| Accessories | Externally SM1-Threaded Adapter |
