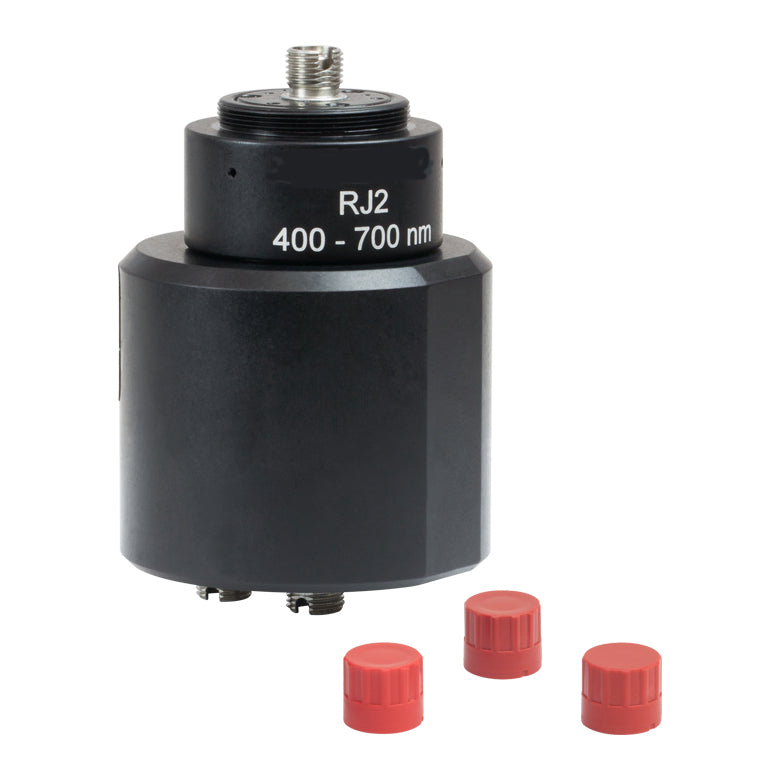

TH-RJ2 - 1x2 Rotary Joint Splitter, 400 - 700 nm, 50:50 Split
TH-RJ2 - 1x2 Rotary Joint Splitter, 400 - 700 nm, 50:50 Split
- Rotary Joint Protects Against Fiber Damage Caused by Moving Specimen
- 400 – 700 nm Wavelength Range
- 50:50 Intensity Split of Input Light
- Low Transmission Variation During Rotation (See Performance Tab)
- Precision Bearings Provide Extremely Smooth Rotation
- Recommended for ≥Ø200 µm Core, 0.22 to 0.50 NA Patch Cables
| Specificationsa | ||
|---|---|---|
| Operating Wavelength | 400 – 700 nm | |
| Split Ratio | 50:50 ± 5% (Typ.) | |

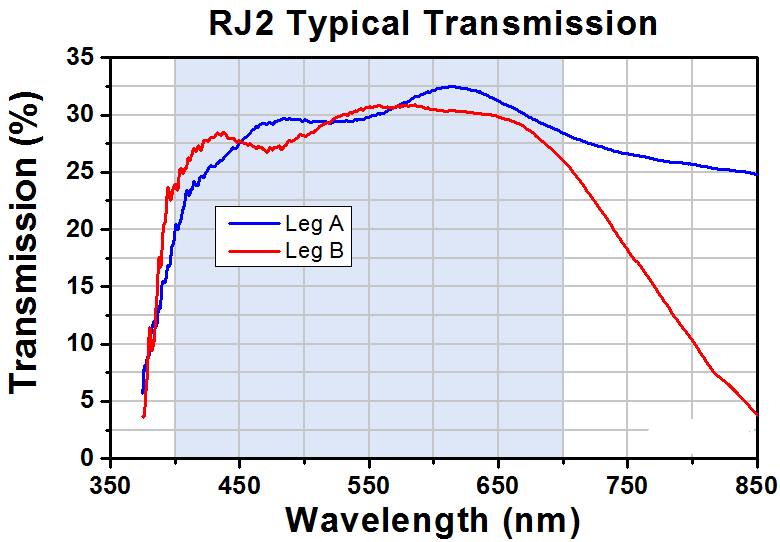

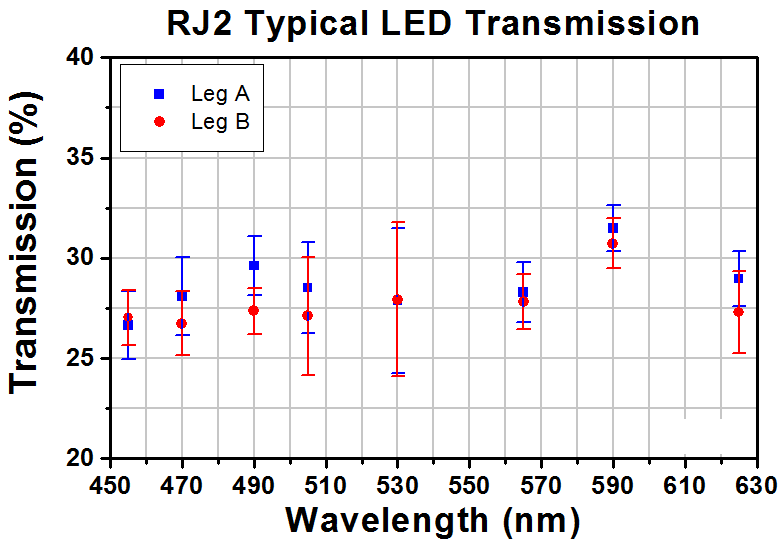

| Transmissionb | LED | 30% Per Leg (Typ.) |
| Laser | 35% Per Leg (Typ.) | |

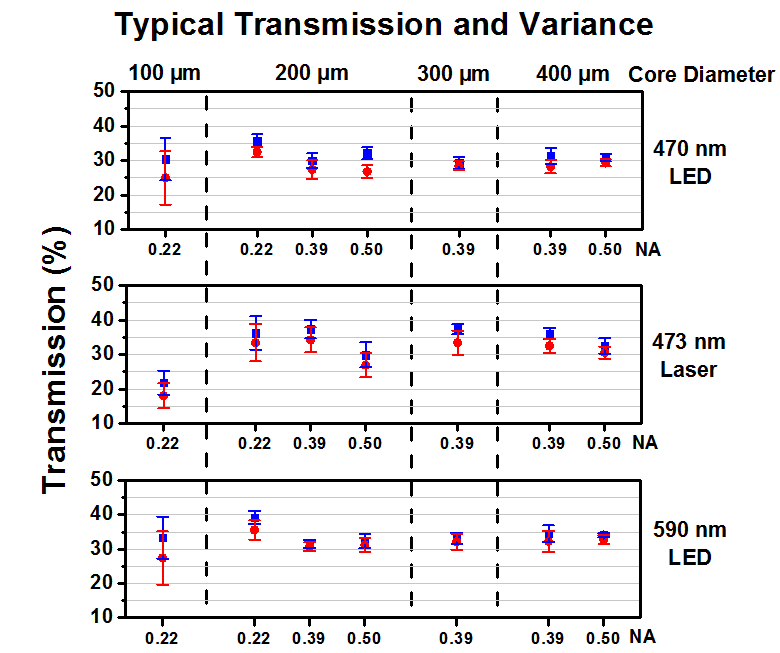

| Rotational Variation of Transmissionc | LED | <±3.5% ±1.75% (Typ.) |
| Laser | <±6.0% ±3.5% (Typ.) |
|
| Start-Up Torque | <150 µN·m | |
| Recommended Fiber Core Diameter | ≥200 µm | |

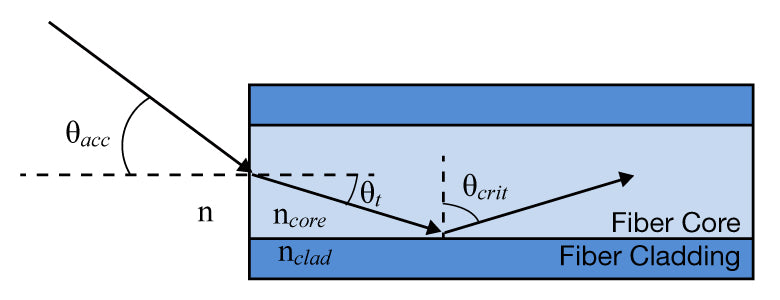

| Recommended Fiber NA | 0.22 – 0.50 | |
