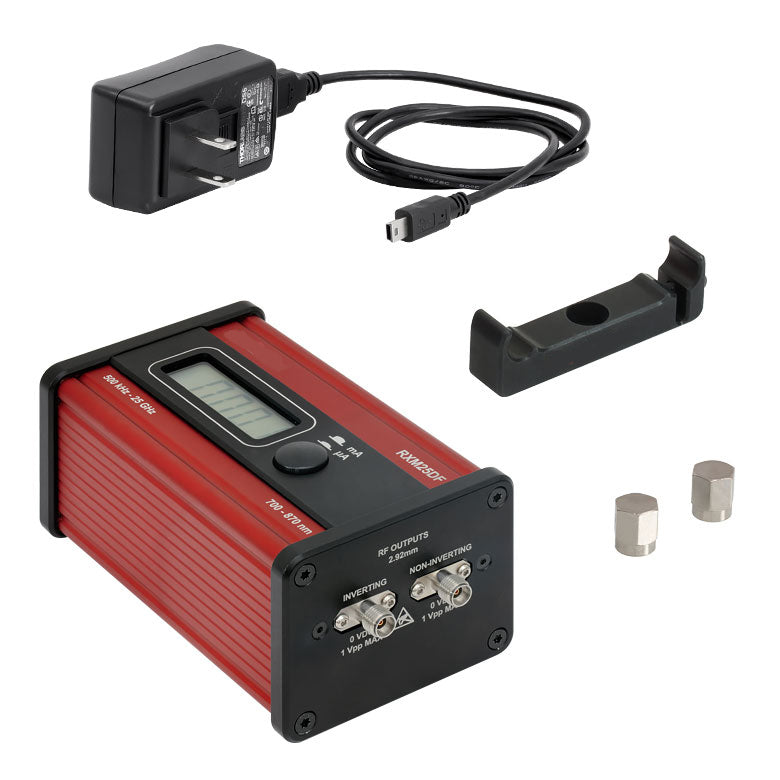

TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC
Roll over image to zoom in Click on image to zoom
TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC

TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC

Fosco ConnectSKU: THRXM25DF
Price:
$ 7,350.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-RXM25DF - Multimode Ultrafast Receiver, 700 - 870 nm, 500 kHz - 25 GHz, FC/PC

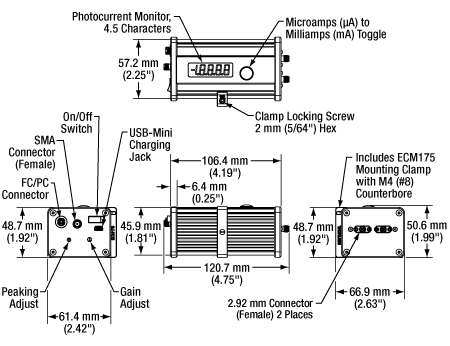

Product Drawing

Fiber Type Ø50 µm MM OM4

Bandwidth 500 kHz - 25 GHz

Wavelength Range 700 - 870 nm

Responsivity 0.5 A/W

Conversion Gain 75-4800 V/W

Optical Return Loss (Max) -14 dB

Noise-Equivalent Power (NEP) 24 pW/√Hz

Current Monitor Output 200 mV/mA
