TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC
Roll over image to zoom in Click on image to zoom
TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PCTH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC

TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC

Fosco ConnectSKU: THRXM38AF
Price:
$ 8,585.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-RXM38AF - Single Mode Ultrafast Receiver, 800 - 1650 nm, 45 kHz - 38 GHz, FC/PC

Fiber Type Ø9 µm SMF-28

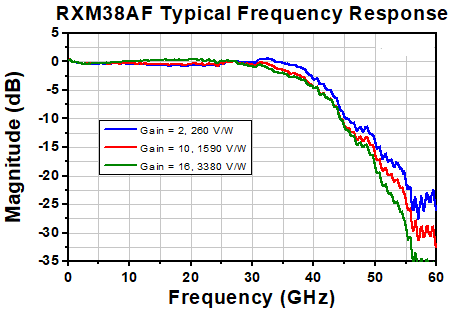

Bandwidth 45 kHz - 38 GHz

Wavelength Range 800 - 1650 nm

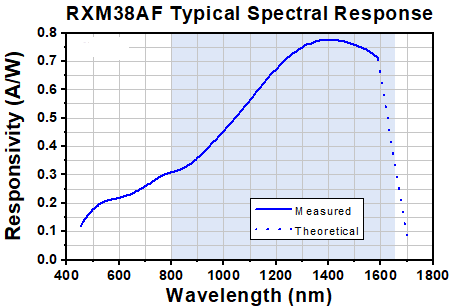

Responsivity 0.75 A/W

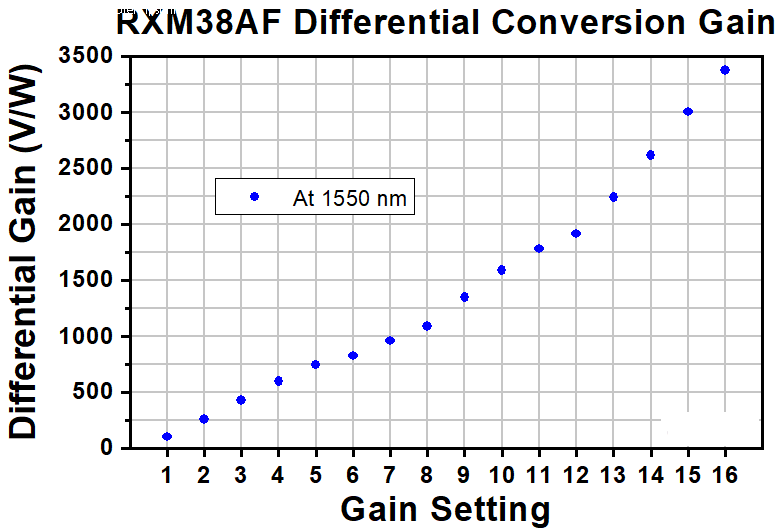

Conversion Gain 100-3300 V/W

Optical Return Loss (Max) -25 dB

Noise-Equivalent Power (NEP) 19 pW/√Hz

Current Monitor Output 200 mV/mA

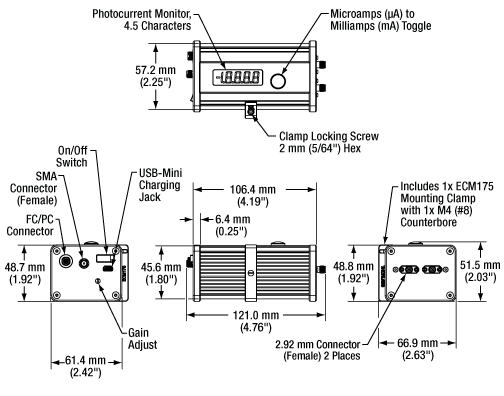

Product Drawing
