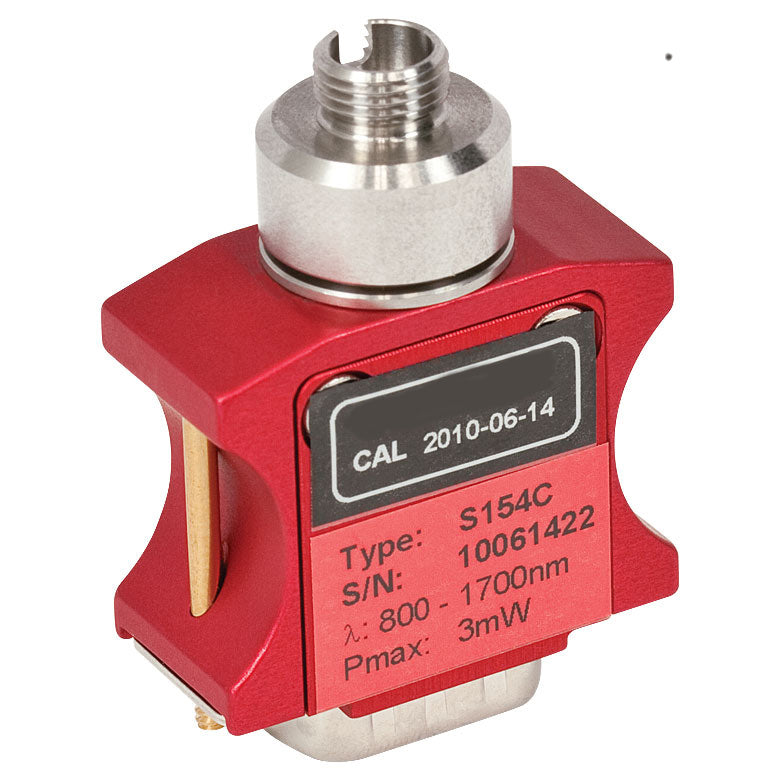

TH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mW
TH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mW
Roll over image to zoom in Click on image to zoom
TH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mWTH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mW

TH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mW

Fosco ConnectSKU: THS154C
Price:
$ 815.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-S154C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 3 mW

Product Drawing

Wavelength Range 800 - 1700 nm

Power Range 100 pW to 3 mW (-70 dBm to +5 dBm)

Detector Type InGaAs Photodiode

Linearity ±0.5%

Resolutionb 10 pW (-80 dBm)

Measurement Uncertaintyc ±5%

Coating/Diffuser N/A

Head Temperature Measuremente NTC Thermistor 3 kΩ

Aperture Thread External SM05 (0.535"-40)
