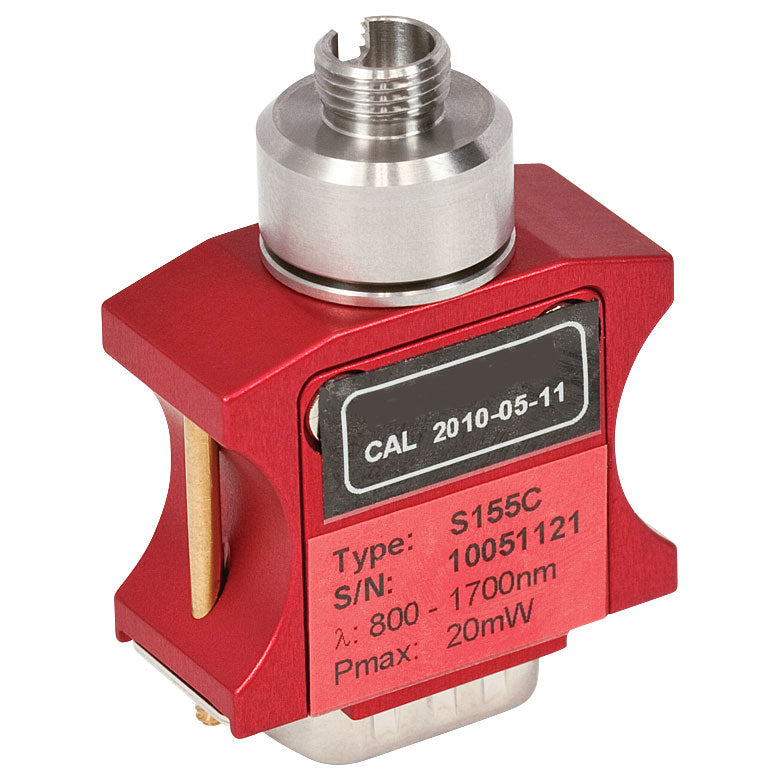

TH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mW
TH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mW
Roll over image to zoom in Click on image to zoom
TH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mWTH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mW

TH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mW

Fosco ConnectSKU: THS155C
Price:
$ 950.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-S155C - Compact Fiber Photodiode Power Sensor, InGaAs, 800 - 1700 nm, 20 mW

Product Drawing

Wavelength Range 800 - 1700 nm

Power Range 1 nW to 20 mW (-60 dBm to +13 dBm)

Detector Type InGaAs Photodiode

Linearity ±0.5%

Resolutionb 100 pW (-70 dBm)

Measurement Uncertaintyc ±5%

Coating/Diffuser N/A

Head Temperature Measuremente NTC Thermistor 3 kΩ

Aperture Thread External SM05 (0.535"-40)
