TH-S170C - Microscope Slide Power Sensor, 350 - 1100 nm, 150 mW
Roll over image to zoom in Click on image to zoom
TH-S170C - Microscope Slide Power Sensor, 350 - 1100 nm, 150 mW

TH-S170C - Microscope Slide Power Sensor, 350 - 1100 nm, 150 mW

Fosco ConnectSKU: THS170C
Price:
$ 2,120.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-S170C - Microscope Slide Power Sensor, 350 - 1100 nm, 150 mW

Product Drawing

Item #a THS170C
Sensor Image

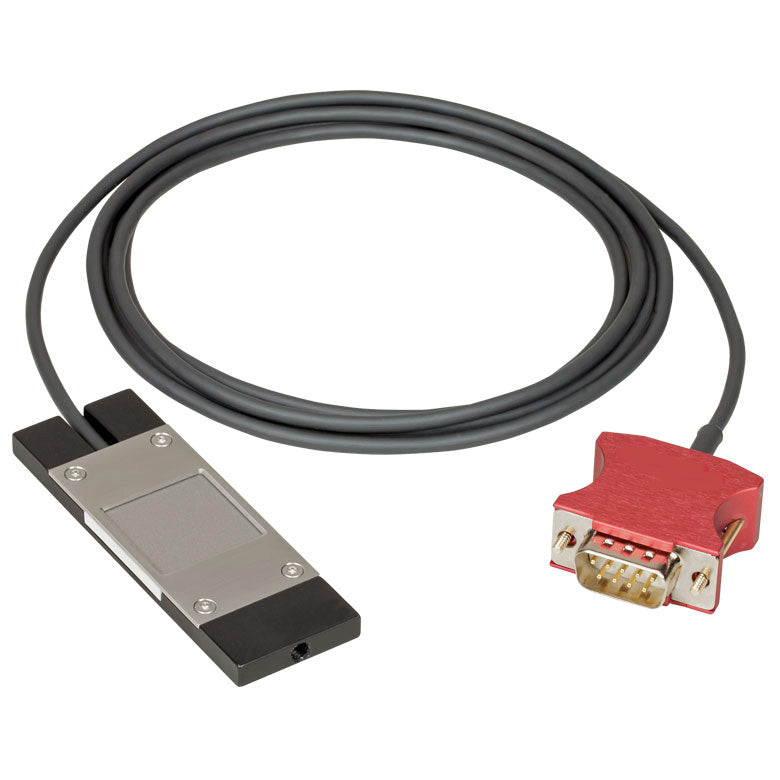

(Click Image to Enlarge) 		S170C Microscope Slide Power Head
Overall Dimensions 76.0 mm x 25.2 mm x 5.0 mm
(2.99" x 0.99" x 0.20")
Active Detector Area 18 mm x 18 mm
Input Aperture 20 mm x 20 mm
Wavelength Range 350 - 1100 nm
Optical Power Working Range 10 nW - 150 mW
Detector Type Silicon Photodiode
Linearity ±0.5%
Resolutionb 1 nW
Calibration Uncertaintyc ±3% (440 - 980 nm)
±5% (350 - 439 nm)
±7% (981 - 1100 nm)
