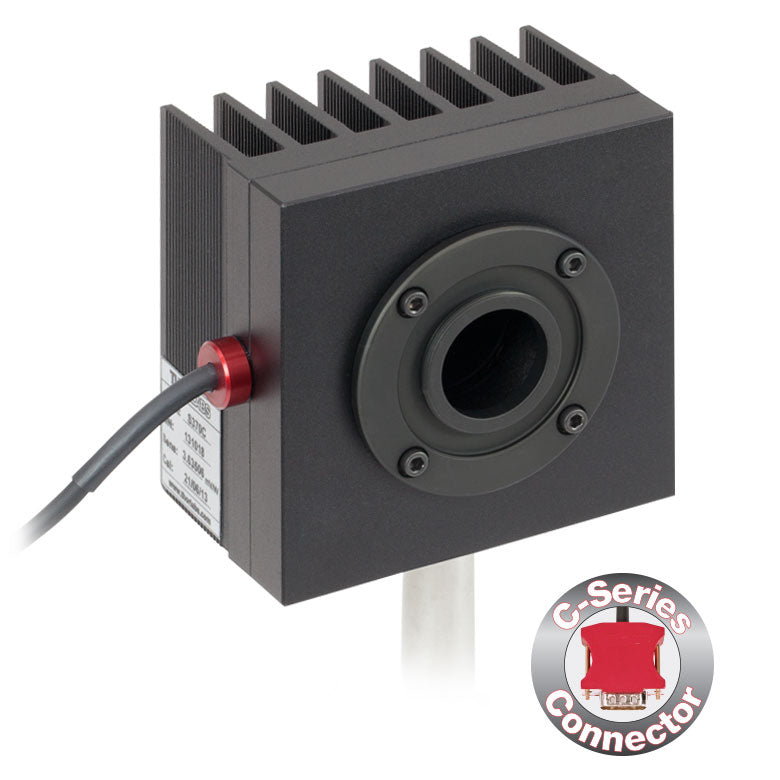

TH-S370C - Thermal Power Sensor Head, Volume Absorber, 0.4 - 5.2 µm, 10 W, Ø25 mm
TH-S370C - Thermal Power Sensor Head, Volume Absorber, 0.4 - 5.2 µm, 10 W, Ø25 mm
| Wavelength Range | 400 nm - 5.2 µm |
| Optical Power Range | 10 mW - 10 W (15 Wb) |
| Input Aperture Size | Ø25 mm |
|
Active Detector Area |
Ø25 mm |
| Max Optical Power Density | 35 W/cm² (Avg.); 100 GW/cm² (Peak) |
| Detector Type | Thermal Volume Absorber (Thermopile) |
| Linearity | ±1% |
| Resolutionc | 250 µW |
| Measurement Uncertaintyd | ±3% @ 1064 nm ±5% @ 400 nm - 1064 nm |
| Response Timee | 45 s (3 s from 0 to 90%) |
| Cooling | Convection (Passive) |
| Housing Dimensions (Without Adapter, if Applicable) |
(2.95" x 2.95" x 2.02") |
| Temperature Sensor (In Sensor Head) |
N/A |
| Cable Length | 1.5 m |
| Post Mounting | M6 Threaded Taps, Includes Ø1/2" Post, 75 mm Long |
| 30 mm Cage Mounting | Four 4-40 Tapped Holes |
| Aperture Threads | - |
| Accessories |
