THL-USC2 - Ultrasonic Fiber Cleaner with Bare Fiber Holder Nest

• Ultrasonic Cleaner with Nest for Ø125 - Ø600 µm Bare Fiber
• Includes Slotted Vapor Shield, Lid, and Power Supply with Location-Specific Cord
• Interchangeable Fiber Holder Nests Sold Separately Below
• Compatible with Isopropyl Alcohol

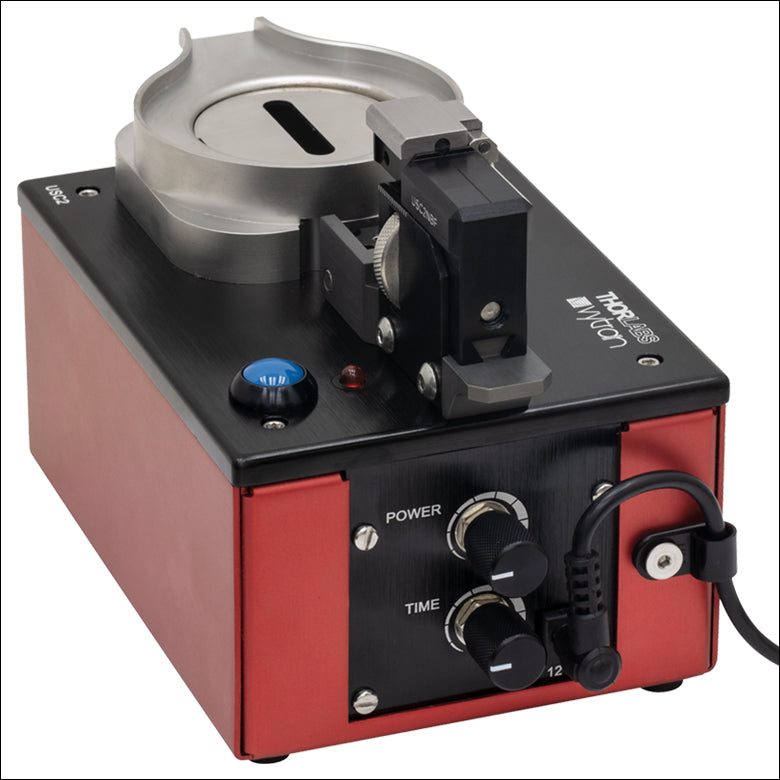

The USC2 Ultrasonic Cleaner for Bare Fiber features adjustable cleaning intensity, duration, and immersion depth. The intensity and duration of the cleaning cycle is adjusted using the knobs on the rear of the unit, as shown in the photo to the right. The immersion depth is set by rotating the knurled adjuster under the fiber nest. The adjustment range is approximately 0.5" (12.7 mm) and the dunking jig offers engraved graduations as a guide.

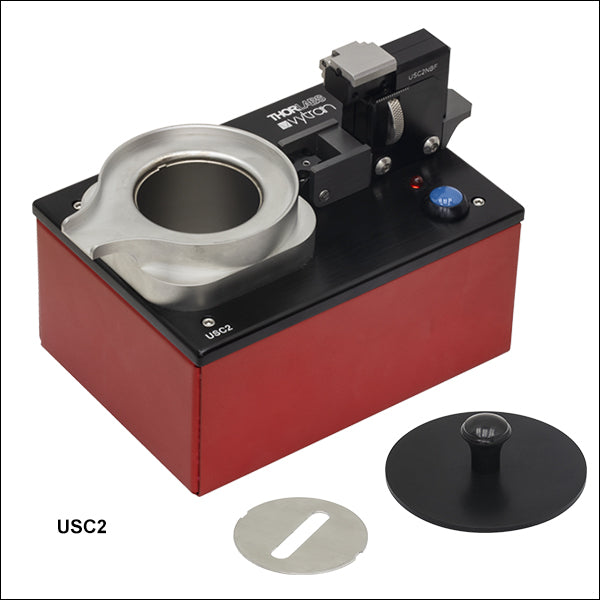

The cleaner includes a bare fiber nest for Ø125 - Ø600 µm fiber, as shown in the photos to the right. This fiber nest features a V-groove and rubber pad design to hold the fiber without damaging it. The stainless steel hinge assembly on the side of the magnetic clamp can be adjusted to hold larger diameter fiber. It can also be flipped to accommodate a left-handed orientation.
