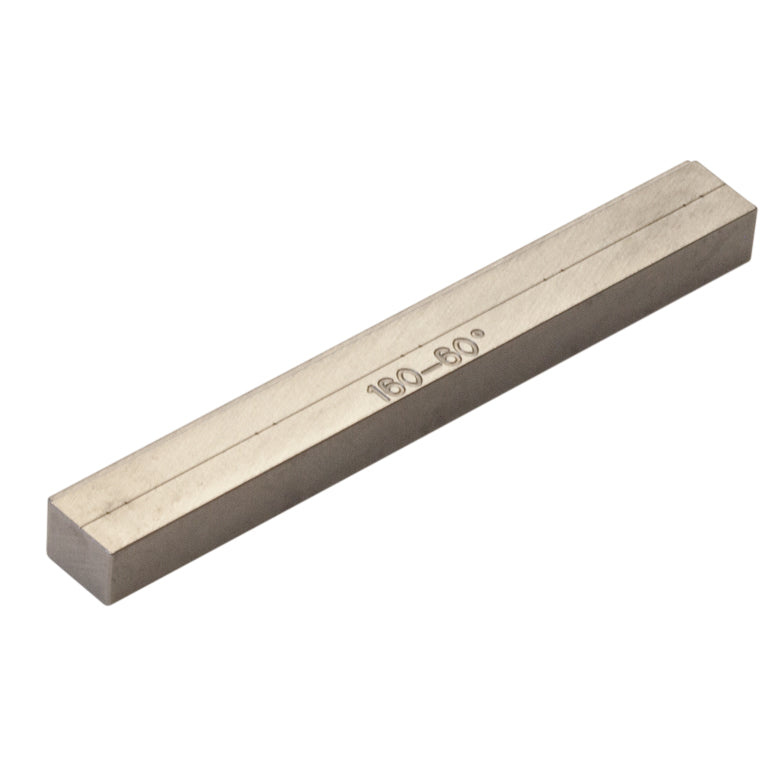

THL-VHD160 - Fiber Holder Bottom Insert, Ø112 µm - Ø208 µm
THL-VHD160 - Fiber Holder Bottom Insert, Ø112 µm - Ø208 µm
- Two are Required to Use the THL-LDC401 or THL-LDC401A
- Clamp Fiber Outer Diameters from 57 µm to 3.198 mm when Used with Top Inserts (Available Above)
- VHD and VHF Series of Inserts Have Holes for Vacuum Suction to Aid in Positioning Small Fibers when Used in the THL-LDC401 or THL-LDC401A (See the Table to the Right)
- VHF Transfer Inserts are Used with VHT1 Transfer Clamp to Aid in Transferring a Fiber with ≤Ø1.047 mm Coating between Compatible Vytran Systems
| Fiber Holder Bottom Insertsa | ||||
|---|---|---|---|---|
| Item # | Transfer Insert |
Side 1 Min/Max Accepted Diameter |
Side 2 Min/Max Accepted Diameter |
Vacuum Holes |
| VHD080 | No | 57 µm / 100 µm | N/A | Yes |
| VHD125 | No | 88 µm / 161 µm | N/A | Yes |
| VHD160 | No | 112 µm / 208 µm | N/A | Yes |
| VHF160 | Yesb | |||
| VHD250 | No | 177 µm / 323 µm | N/A | Yes |
| VHF250 | Yesb | |||
| VHD400 | No | 279 µm / 519 µm | N/A | Yes |
| VHF400 | Yesb | |||
| VHD500 | No | 346 µm / 795 µm | N/A | Yes |
| VHF500 | Yesb | |||
| VHD750 | No | 516 µm / 1047 µm | N/A | Yes |
| VHF750 | Yesb | |||
| VHE10 | No | 773 µm / 1271 µm | 1034 µm / 1523 µm | No |
| VHE15 | No | 1280 µm / 1769 µm | 1534 µm / 2007 µm | No |
| VHE20 | No | 1787 µm / 2267 µm | 2033 µm / 2513 µm | No |
| VHE25 | No | 2270 µm / 2844 µm | N/A | No |
| VHE30 | No | 2692 µm / 3198 µm | N/A | No |
