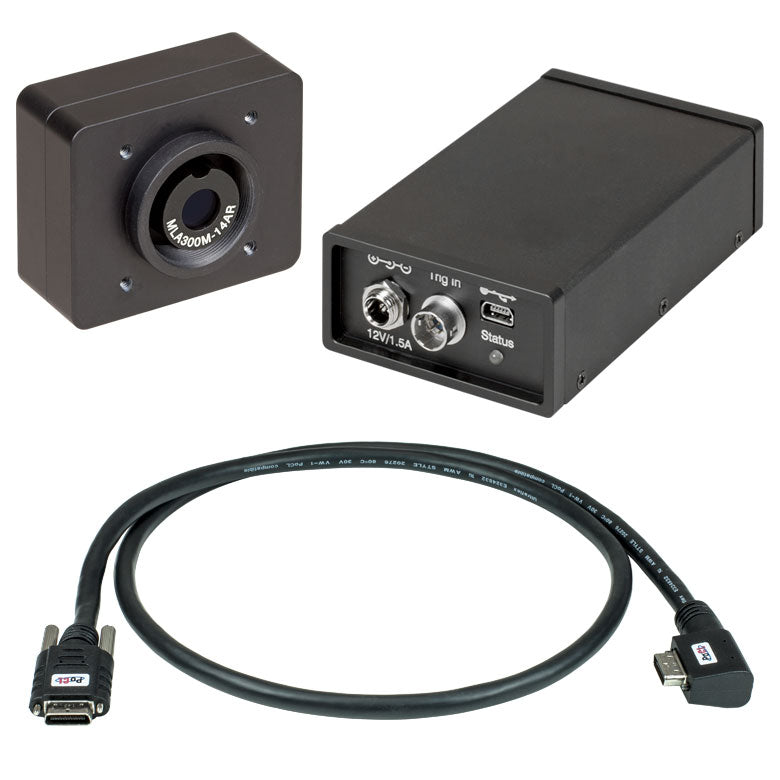

THWFS20-14AR-M - Fast Shack-Hartmann WFS, 300 µm Pitch, AR Coated: 400 - 900 nm, M4 Taps

THWFS20-14AR/M - Fast Shack-Hartmann WFS, 300 µm Pitch, AR Coated: 400 - 900 nm, M4 Taps

Control Box Auto PDF File

Product Drawing

Wavelength Range 400 - 900 nm

Effective Focal Length 14.6 mm

Lenslet Array Coating AR Coated

Lenslet Pitch 300 µm

Wavefront Accuracy (at 633 nm) λ/60 rms

Wavefront Sensitivity (at 633 nm) λ/200 rms

Frame Rate 28 - 1120 Hz

Camera Resolution 1440 x 1080 Pixels Max, Software Selectable

High-Speed Control Box with PoCL and Table Clamps YES

Included Cable USB 2.0 Type-A to Mini-B Cable, 2 m
