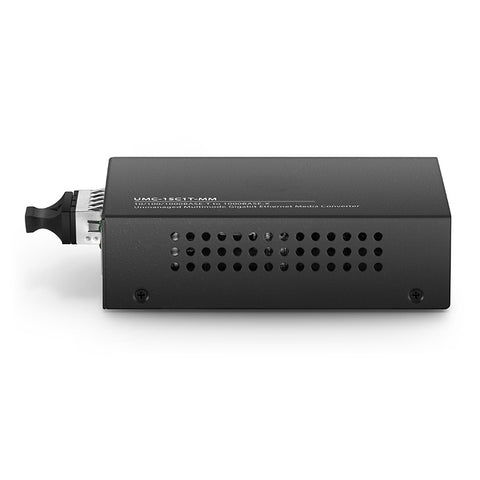

Unmanaged 1x 10/100/1000Base-T to 1x 1000Base-X Multimode SC 850nm 220/550m Gigabit Ethernet Media Converter, American Plug Standard

The Unmanaged Gigabit Ethernet Media Converter extends communication distance with high performance of data transmission via 50/125μm or 62.5/125μm multimode fiber optic cable. It can build the ISP network solution of FTTH or FTTC for ISPs and FTTBs, or for small office network environment of enterprises.

It also supports advanced features such as Auto-Negotiation, Auto-MDIX, LFP, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. The Unmanaged Gigabit Ethernet Media Converter is plug-and-play and supports installation in a 1U 15-Slot Chassis.

Specifications

• Port Type: 1x 10/100/1000Base-T RJ45; 1x 1000Base-X SC

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

• Cable Type (Fiber): Multimode 50/125µm, 62.5/125µm

• Cable Type (Copper): Cat5/5e/6

• Power Consumption: 4.6W

• DIP Switc: LFP

• Speed: Twisted pair-10/100Mbps for half/full duplex; 1000Mbps for full duplex; Fiber Optic-100Mbps/1000Mbps for full duplex

• Jumbo Frame: 9K

• MTBF (hrs): >50,000Hrs

• Dimensions (Hx Wx D): 1.02''x 2.76''x 3.82'' (26x70x97mm)

• Installation: Standalone

• Matching Products: MFMC-12DP

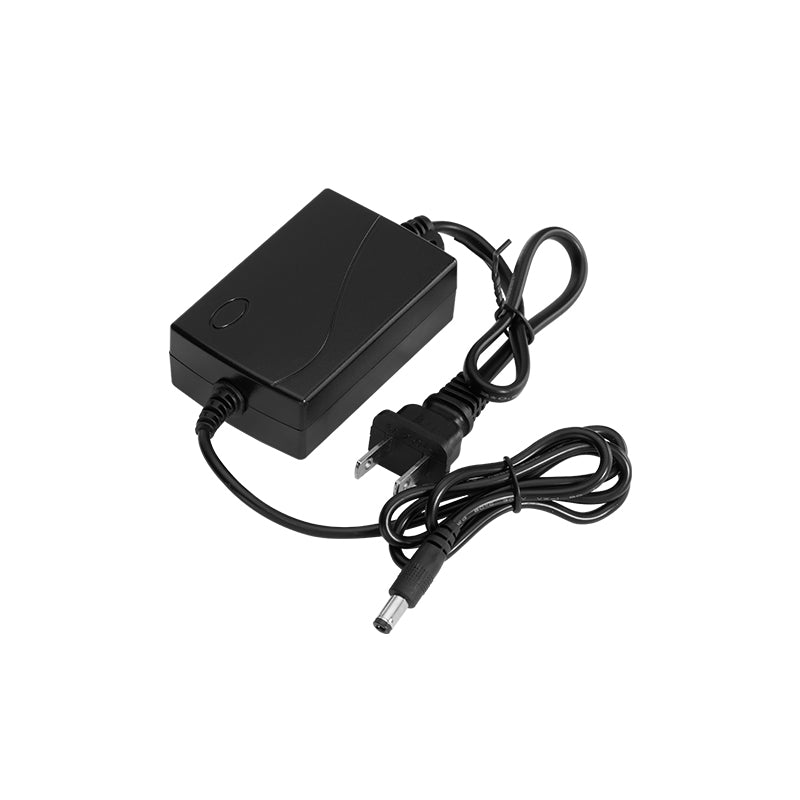

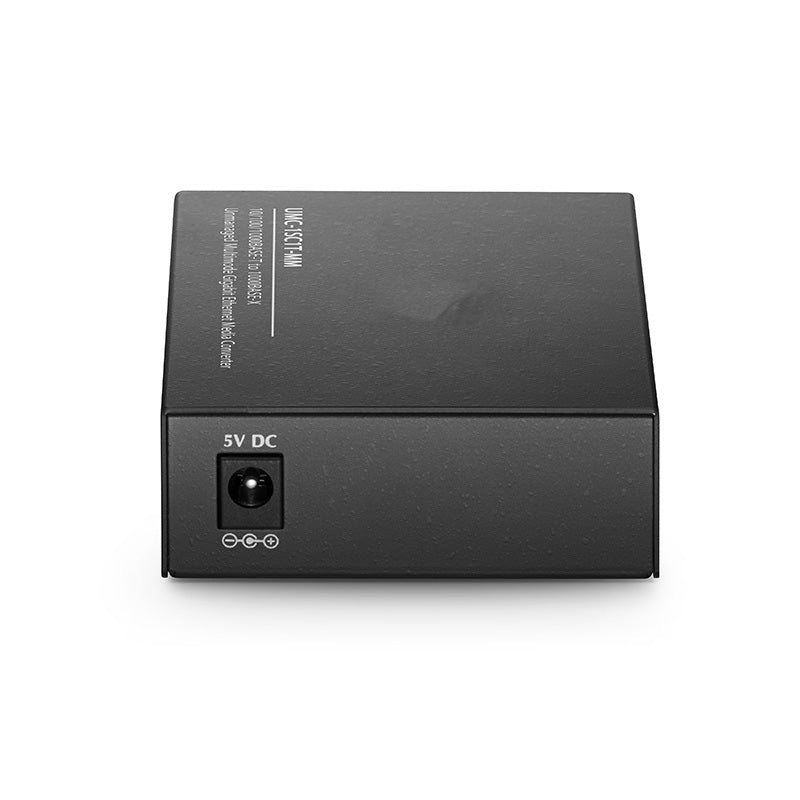

• Input Power: 5V DC, 2A max

• Operating Temperature: 0 to 50°C (32 to 122℉)

• Storage Temperature: -10 to 70°C (14 to 158℉)

Product Highlights

• Auto-Negotiation and Auto-MDI/MDIX on RJ45 Port

• Auto-negotiation of Half-Duplex / Full-Duplex Transfer Mode

• Extends Fiber Distance up to 550M

• Advanced Features: LFP (Link Fault Pass Through)

• Plug-and-play, Support 1U 15 Slots Chassis

• Comply with IEEE 802.3/802.3u/802.3ab/802.3z
• Wave Length: 1310nm
• Fiber Number: Dual Fiber
• Transmission Media: Single-mode
• Transmission Diatance: 40km

Connectivity Solutions

Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 1000Base-X Multimode SC port and 1x 10/100/1000Base-T RJ45 port extend communication distance with high performance of data transmission.

Convert and Extend Signals Within Your Ethernet Network
The Converter extends links over greater distances with fibre optic cable, making it perfect for IT professionals and secure setups in government, business, or educational applications.

Simple & Quick Operation
The hot-swappable design makes these converters easy to install and troubleshoot for newbies, which allows simple communication with other devices.

LFP Alarm Link Failure Within a Short Period of Time
With the LFP (link fault pass through) function, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.
