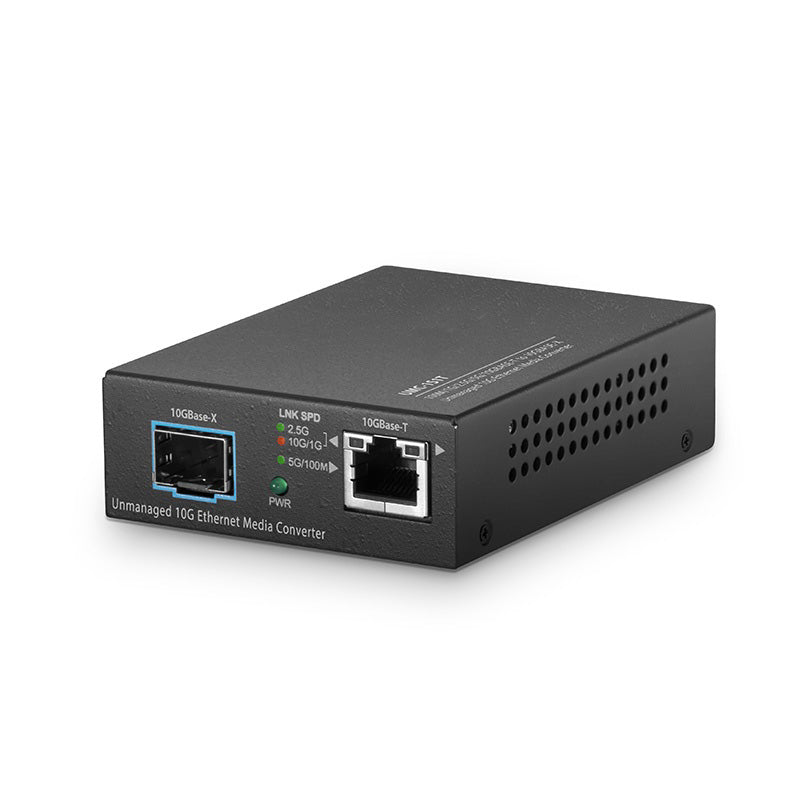

Unmanaged 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10Gigabit Ethernet Media Converter, American Plug Standard

The Unmanaged 10Gigabit Ethernet Media Converter transparently connects 100M/1G/2.5G/5G/10GBase-T Ethernet links over multimode or single mode fiber, up to 100km transmission distance.

It provides an economical path to extend Ethernet data transmission distances or convert network speeds, suitable for data center cloud computing, enterprise backbone, campus networks and carrier infrastructure.

It's compatible with a wide range of 10G transceiver modules, such as general 10GBase SFP+ transceiver modules, BIDI transceiver modules, CWDM transceiver modules, etc. Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at the both ends of the media converter are consistent.

The Unmanaged Gigabit Ethernet Media Converter is plug-and-play and supports installation in a 1U 15-Slot Chassis.

Specifications

• Port Type:  1x 100M/1G/2.5G/5G/10GBase-T RJ45; 1x 10GBase-X SFP+

• Standards and Protocols: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x

• Cable Type (Fiber): Multimode 50/125µm, 62.5/125µm; Single-mode 9/125µm
• Cable Type (Copper): Cat5/5e/6/6a/7

• LED Indicators: PWR, 2.5G, 10/1G, 5G/100M

• Power Consumption: 3.75W

• Jumbo Frame: 16K

• Speed: Twisted pair-100Mbps for half/full duplex 1/2.5/5/10G for full duplex Fiber Optic-10G for full duplex

• Dimensions (HxWxD): 1.02''x 2.76''x 3.7'' (26x70x94mm)

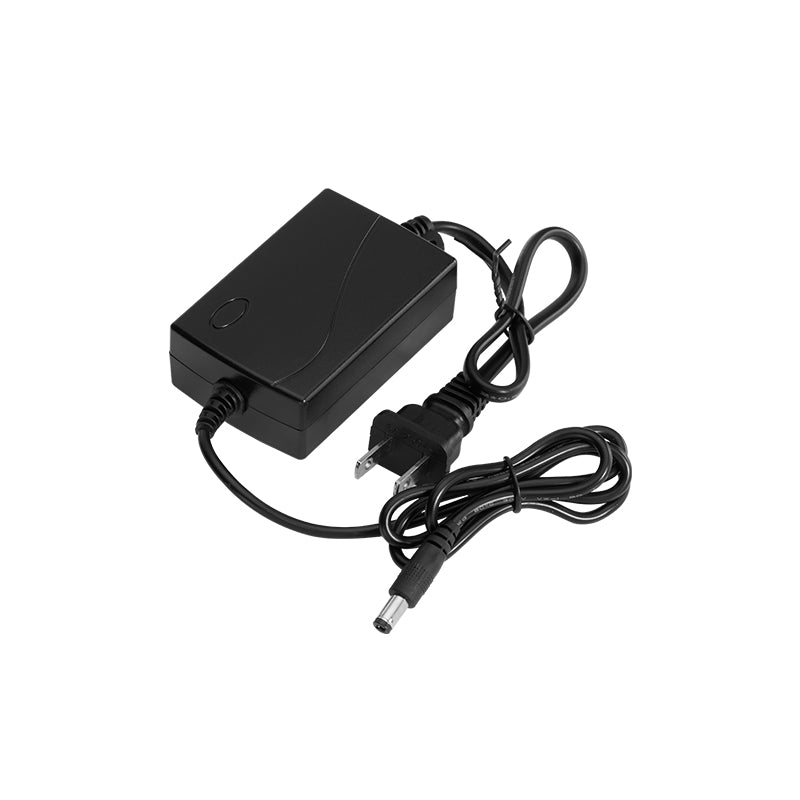

• Input Power: 5V DC, 2A max.

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -10°C to 70°C

• MTBF (hrs): >50,000Hrs

• Installation: Desktop or Shelf

• Matching Products: MFMC-12DP


Product Highlights

• 1x 100M/1G/2.5G/5G/10G Auto-Negotiation RJ45 Port

• Max Transmission Distance Depends on Inserted Modules

• Plug-and-play, a Standalone Unit for Desktop or Shelf

• Auto-negotiation of Half-Duplex/Full-Duplex Transfer Mode

• Plug-and-play, Support 1U 15 Slots Chassis

• Complies with Various IEEE 802.3 Standards
• Transmission Diatance: Depends on the Inserted Modules
• Transmission Media: Depends on the Inserted Modules
• Fiber Number: Depends on the Inserted Modules
• Wave Length: Depends on the Inserted Modules

Extend the Network Distance of 10Gigabit Fiber Links

10Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 10GBase-X SFP+ port and 1x 100M/1G/2.5G/5G/10GBase-T RJ45 port extend communication distance with high performance of data transmission.

Convert and Extend Signals Within Your Ethernet Network
The Converter extends links over greater distances with fibre optic cable,making it perfect for data center cloud computing, enterprise backbone, campus networks and carrier infrastructure.

Simple & Quick Operation
The hot-swappable design makes these converters easy to install and troubleshoot for newbies, which allows simple communication with other devices.
