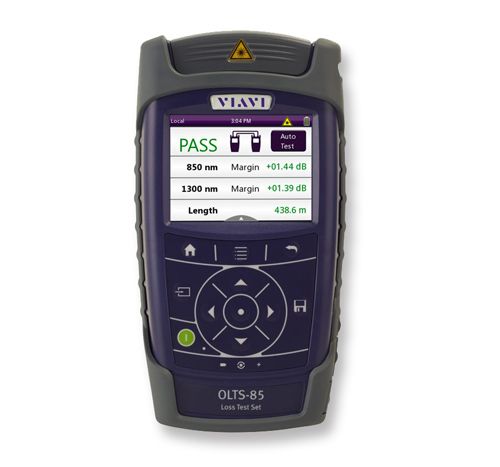

VIAVI 2325/34 SmartClass OLTS-85 MM Tier 1 Optical Loss Test Set
VIAVI 2325/34 SmartClass OLTS-85 MM Tier 1 Optical Loss Test Set
The VIAVI 2325/34 SmartClass™ OLTS-85 Multimode Optical Loss Test Set is used for tier 1 fiber certification. It performs specific tests for a fiber optic link or channel: measuring the length and optical loss, as well as checking the polarity of the installed fiber optic links. The OPM offers a high dynamic range (-75 to +15 dBm) for professional auto pass/fail fiber inspection and optical power measurements from 800 to 1700 nm wavelengths. The LED light source with 850/1300 nm wavelengths features an adjustable output level (-22 to -25 dBm), tone generator (270 Hz, 1 kHz, and 2 kHz), plus CW, tone, auto-λ & multi-λ modes. The OLTS-85 has a high-contrast 3.5" color touch-screen LCD and data storage for up to 10,000 loss test results.
The 2325/34 multimode kit includes local and remote test sets, li-ion battery pack, AC/DC power supply, USB cable, carry case and test reference cords (FC-LC, LC-LC).
VIAVI Solutions SmartClass Fiber OLTS-85/85P lets installers and technicians work fiber smart by integrating industry-leading fiber inspection with Tier 1 testing. This efficient, easy-to-use solution promotes best practices while cutting testing and certification time in half. Have confidence in your network quality and optimize your workflow with a single solution - the OLTS-85 and 85P.
- Certify installations faster, correctly, and on time"”the first time
- Test to industry standards
- Eliminate guesswork with pass/fail results
- Optimize technician efficiency
Power Meter
Specification
Optical interface: Interchangeable adapter LC/PC, LC/ APC (optional 2014-style adapters: SC, ST, FC, DIN, E2000 and UPP 2.5 mm and UPP 1.25 mm)
Detector type: InGaAs
Wavelength range/settings: 800 to 1700 nm/in 1 nm steps
Calibrated wavelengths: 850, 980, 1310, 1490, 1550, 1625 nm
Power Measurement Range: –75 to +15 dBm
Max. permitted input level: +15 dBm
Absolute measurement uncertainty: ±0.15 dB (±3.5%)
Overall measurement uncertainty: 850 nm ±0.35 dB ±0.25 nW; 980 nm ±0.35 dB±0.25 nW; 1310 nm ±0.25 dB ±0.05 nW; 1490 nm ±0.25 dB ±0.05 nW; 1550 nm ±0.25 dB ±0.05 nW; 1625 nm ±0.35 dB ±0.05 nW
Linearity: 0.1 dB
Automatic offset nulling: Yes
Measurement units: dB, dBm, Watt
Display resolution: 0.01 dB/0.0001 µW
Power meter functions: Absolute, relative, pass/fail, Auto λ, Tone detection
Warm-up time: None, instant-on
Light Source Multimode
Specification
Optical interface: Interchangeable adapter FC/PC (optional 2155-style adapters: SC, ST, and LC)
Source type and wavelengths: LED source; 850 nm ± 20 nm; 1300 nm ± 20 nm
Spectral width: 50/170 nm
Launch condition: Encircled Flux compliant to TIA-526-14 and IEC 61280-4-1
Output power settable in 0.1 dB steps: –22 to –25 dBm 0 to –3 dBm
Stability 15 min/8 hr: ±0.02/0.2 dB
Source modes: CW, tone, auto-λ, multi-λ
Tone generator: 270 Hz, 1 kHz, 2 kHz
Light Source Single-Mode
Specification
Optical interface: Interchangeable adapter SC/PC (optional 2155-style adapters: FC, ST and LC)
Source type and wavelengths: Fabry-Perot laser diode; 1310 nm ± 20 nm; 1550 nm ± 20 nm
Spectral width: 5/5 nm
Launch condition: -
Output power settable in 0.1 dB steps: 0 to –3 dBm
Stability 15 min/8 hr: ±0.02/0.2 dB
Source modes: CW, tone, auto-λ, multi-λ
Tone generator: 270 Hz, 1 kHz, 2 kHz
Loss/Length (Tier 1)
Specification Multimode
Testing speeds: Remote mode <6 seconds
Testing speeds: Loopback mode ≤3 seconds
Pass/fail limit standards: TIA 568.3, ISO 11801 and; ISO/IEC 14763-3, link validation
Fiber types: 50/125 µm or 62.5/125 µm
Nominal test wavelengths: 850/1300 nm
Maximum length measurement: 12 km
Length measurement accuracy: ± 1.5 m plus ± 1% of length
Loss measurement uncertainty: <0.2 dB
Specification Single-Mode
Testing speeds: Remote mode <6 seconds
Testing speeds: Loopback mode ≤3 seconds
Pass/fail limit standards: TIA 568.3, ISO 11801 and; ISO/IEC 14763-3, link validation
Fiber types: 9/125 µm
Nominal test wavelengths: 1310/1550 nm
Maximum length measurement: 100 km
Length measurement accuracy: ± 1.5 m plus ± 1% of length
Loss measurement uncertainty: <0.2 dB
General
Specification OLTS-85
Display: High-contrast 3.5” color LCD with touch-screen functionality
Data memory: Up to 10.000 loss test results (>1000 including inspection)
Data readout: Via client USB interface, and wireless via USB; WiFi/Bluetooth adapter (option)
Electrical interfaces: 2 x USB host, 1x micro USB, Ethernet
Power supply: 12 V, 2A with interchangeable wall plug for EU, UK, US, and AU
Battery: Li-ion pack 3.7 V, 20 Wh (optional 8 NiMH/dry batteries)
Battery life (Li-ion battery pack): >12 hr
Recommended recal. interval: 3 years
Dimensions(H x W x D): 208 x 112 x 64 mm (8.2 x 4.4 x 2.5 in)
Weight: 750 g (1.6 lb)
Operating temperature range: –5˚ to +45˚C (23˚ to 113˚F)
Storage temperature range: –25˚ to +55˚C (–13° to 131°F)
