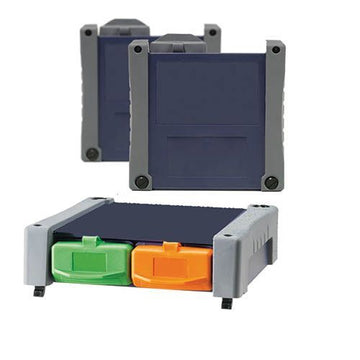

Viavi 4100 Module B OTDR 1310/1550nm APC
SKU: E4126BAPC
Product Name: Viavi 4100 Module B OTDR 1310/1550 nm APC
Connector Type: APC
Wavelengths: 1310 nm ±20 / 1550 nm ±20
Series: B Module
Platform Compatibility:
-
T-BERD/MTS-2000 V2
-
T-BERD/MTS-4000 V2
-
T-BERD/MTS-5800
-
OneAdvisor 800
Download Product Spec Sheet:
Key Specs from Data Sheet:
| Specification | Value |
|---|---|
| Dynamic Range | 42 dB @ 1310 nm, 40 dB @ 1550 nm |
| Event Dead Zone | 0.65 m |
| Attenuation Dead Zone | 2.5 m |
| Sampling Points | Up to 256,000 |
| Distance Range | 0.1 to 400 km |
| Pulse Width | 3 ns to 20 µs |
| Tone Generation | 270Hz, 330Hz, 1 kHz, 2 kHz |
| Output Power Level (CW) | –3.5 dBm |
Features:
-
SmartAcq multi-pulse acquisition: Improved event detection without heavy launch cables.
-
Smart Link Mapper (SLM): Icon-based OTDR interpretation.
-
SmartTEST mode: Step-by-step testing guidance.
-
Field-upgradable to FiberComplete PRO for loopback, bi-directional testing, and MPO.
