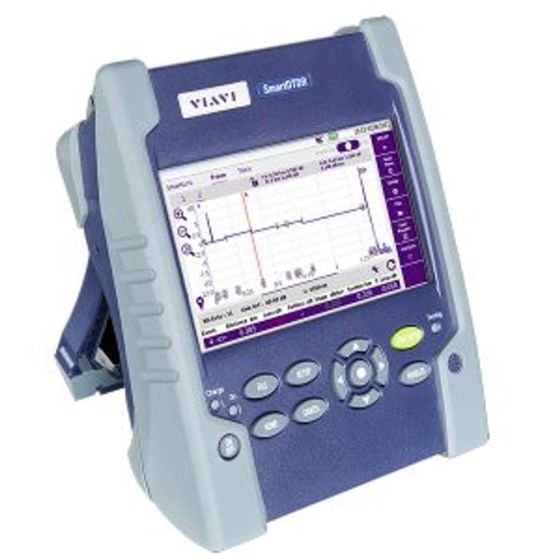

Viavi SmartOTDR Fiber Install Tester Premium Kit – 1310/1550nm (40/40 dB), APC

The Viavi SmartOTDR Premium Kit is a compact, user-friendly fiber installation and maintenance solution tailored for field technicians working in FTTH, access, and metro fiber networks. Equipped with dual-wavelength OTDR at 1310/1550 nm, this unit delivers 40/40 dB dynamic range, ensuring precise testing over both short and long-distance fiber links.

This premium bundle includes Power Meter (PM), Light Source (LS), Visual Fault Locator (VFL), WiFi/Bluetooth connectivity, and the FTTH-SLM base for smart link mapping and guided diagnostics. Housed in a rugged, portable design, the SmartOTDR is ideal for efficient Tier-2 testing and documentation in the field.

Key Features

• Dual-wavelength OTDR: 1310 & 1550 nm

• Dynamic Range: 40 dB (both wavelengths)

• Integrated Power Meter, Light Source, and VFL

• Built-in WiFi & Bluetooth for wireless connectivity and remote control

• SmartLink Mapper (SLM) simplifies trace analysis with icon-based link views

• Fast boot-up and intuitive touchscreen interface

• Rugged, handheld design suitable for outdoor environments

• APC connector interface reduces reflectance for accurate readings

Included in Premium Kit

• SmartOTDR Main Unit with 1310/1550nm OTDR (40/40 dB)

• Optical Power Meter (OPM)

• Optical Light Source (OLS)

• Visual Fault Locator (VFL)

• WiFi/Bluetooth Module

• FTTH-SLM Base license

• Soft carry case and accessories

Applications

• Tier-2 OTDR testing for FTTH and access networks

• In-field fiber certification and documentation

• Fault location and troubleshooting

• Bidirectional testing with launch/reception cables

• SmartLink Mapper for tech-friendly diagnostics

Specifications

• Wavelengths: 1310 nm / 1550 nm

• Dynamic Range: 40 dB @ 1310 & 1550 nm

• Event Dead Zone: ~0.8 m

• Attenuation Dead Zone: ~4 m

• Built-in Tools: PM, LS, VFL

• Connectivity: WiFi and Bluetooth

• Software: SmartLink Mapper (FTTH-SLM)

• Interface: APC
