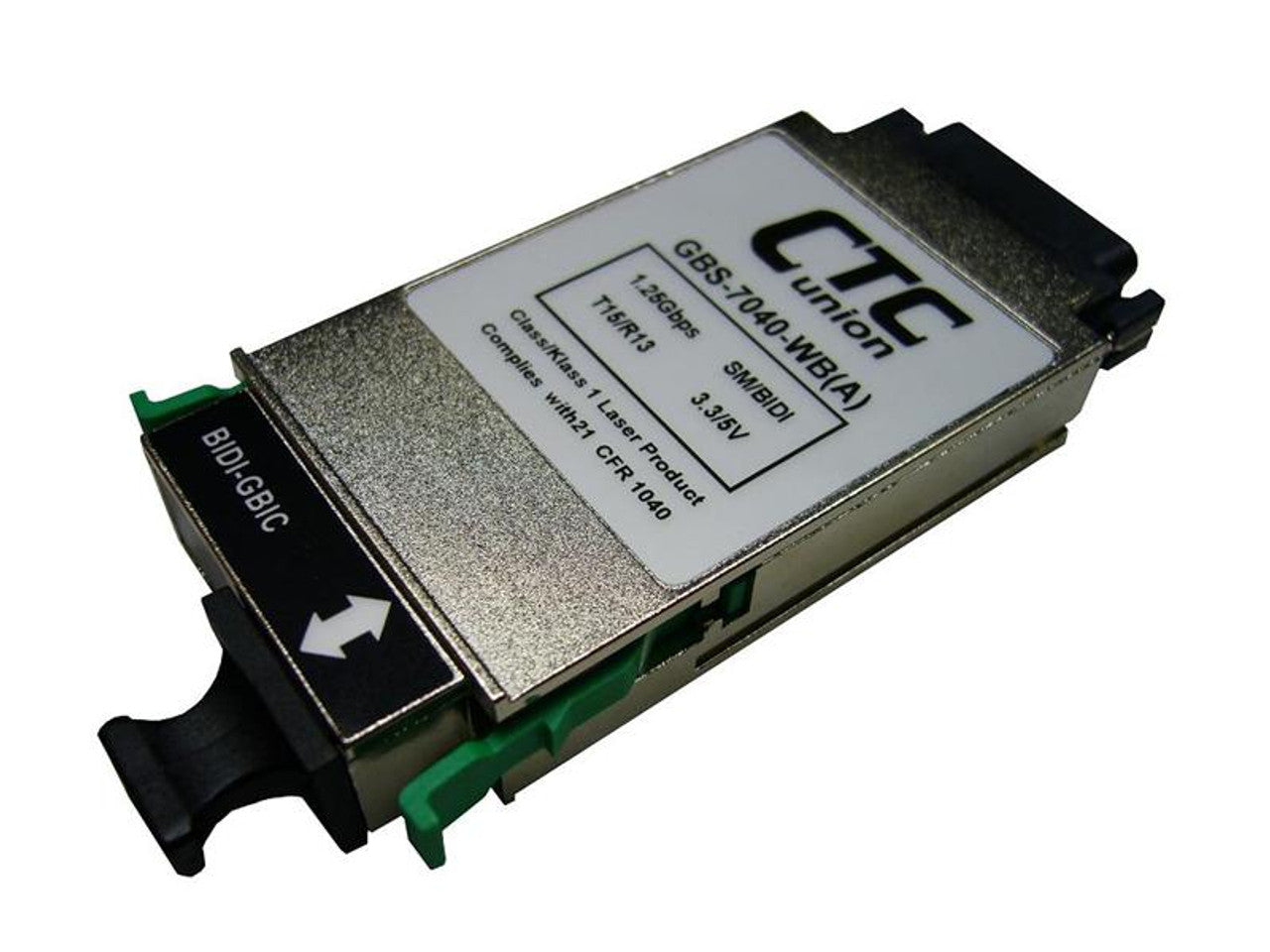

GBIC Gigabit optical modules, single mode, single strand BiDi WDM up to 80km range
Product description
GBIC optical modules are equipped with the industry standard SC optical connector. The capacity of GBIC modules is 1.25 GigaBit.
The GBIC Bi-Directional single strand series covers single strand fiber optic applications for single-mode long haul fiber (20km to 80km).
GBIC modules are extremely versatile, working with any active equipment that support the GBIC type of interface: Ethernet switches, routers and other networking equipment.
Fiber power budget according to available models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| GBS-7020-WA | 20Km | Tx:1310nm Rx:1550nm | -8 | -23 | 15 |
| GBS-7020-WB | 20Km | Tx:1550nm Rx:1310nm | -8 | -23 | 15 |
| GBS-7040-WA | 40Km | Tx:1310nm Rx:1550nm | -3 | -23 | 20 |
| GBS-7040-WB | 40Km | Tx:1550nm Rx:1310nm | -3 | -23 | 20 |
| GBS-7060-WA | 60Km | Tx:1310nm Rx:1550nm |
0 | -24 | 24 |
| GBS-7060-WB | 60Km | Tx:1550nm Rx:1310nm |
-2 | -25 | 23 |
| GBS-7080-WA | 80Km | Tx:1490nm Rx:1550nm | 0 | -27 | 27 |
| GBS-7080-WB | 80Km | Tx:1550nm Rx:1490nm | 0 | -27 | 27 |
Additional information on available optical modules: PDF datasheet
