Industrial grade Gigabit Ethernet 4 port switch with web based management support

CTC Union Part No.: FRM220A-1002ES

  • $ 250.00 or



Product description
The FRM220A-1000ES is a 4 port Gigabit Ethernet switch with two 10/100/1000Base-T copper and two SFP slots on a single card. Any 1000Base-SX/LX/LHX/ZX or WDM/CWDM SFP transceiver can be installed in the SFP slots of the FRM220A-1000ES unit. The switch is industrial grade hardened, which means it can safely operate at extreme temperatures such as -40 to +85 Celsius degrees.
FRM220A-1002ES supports VLAN settings and QinQ operation. Bandwidth control functions and Digital Diagnostic features for the SFP slots on FRM220A-1002ES are available via local console or SNMP/web when installed in the FRM220 or FRM220A chassis. Other features like Jumbo Packet 10K size support, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test are also available. The FRM220A-1002ES can accommodate any type of miniGBIC (SFP) optical modules, either multi-mode, single-mode or single strand Bi-Directional type. Unit is offering unparalleled flexibility and easy migration from short-haul to long haul fiber connections by simply changing the optical module interface. The Gigabit copper interface has auto-negotiation and speed selection from 10 to 1000 Mbps.
The FRM220A-1002ES Gigabit Ethernet switch is extremely versatile. Besides the standard AC powered standalone version, there is a DC48V version available on request as well as a dual AC and DC version. Please contact the sales department by for such versions bye-mailortelephone.

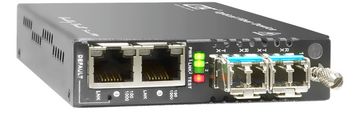

NOTE: Pictures show the FRM220A-1002ES unit loaded with SFPs. The SFPs are NOT part of the FRM220A-1002ES product and must be purchased separately.
Technical specifications

Interfaces: Two RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and two SFP slots for 802.3z 1000Base- SX/LX/ZX standards
Connectors: 2 x RJ-45 copper 10/100/1000 Mbps and 2 x SFP slot 1000Mbps
UTP port: MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 10Kbytes (Jumbo Packets supported)
Optical slots: Small Form Pluggable - supports Auto and Forced mode operation
Front LEDs: FEF, Fiber Link 1, Fiber Link 2, ACT, Link 3, Link 4
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: -40 8°C (Operating); -40 8°C (Storage)
Humidity: 0 95% non condensing (Operating)
Consumption: less than 5W
Dimensions(WxDxH): 88mm x 155mm x 23mm
Weight: 120g (without AC adapter)
Compliance: CE, FCC Class A
MTBF: 65,000 hours

Product Sheet:
