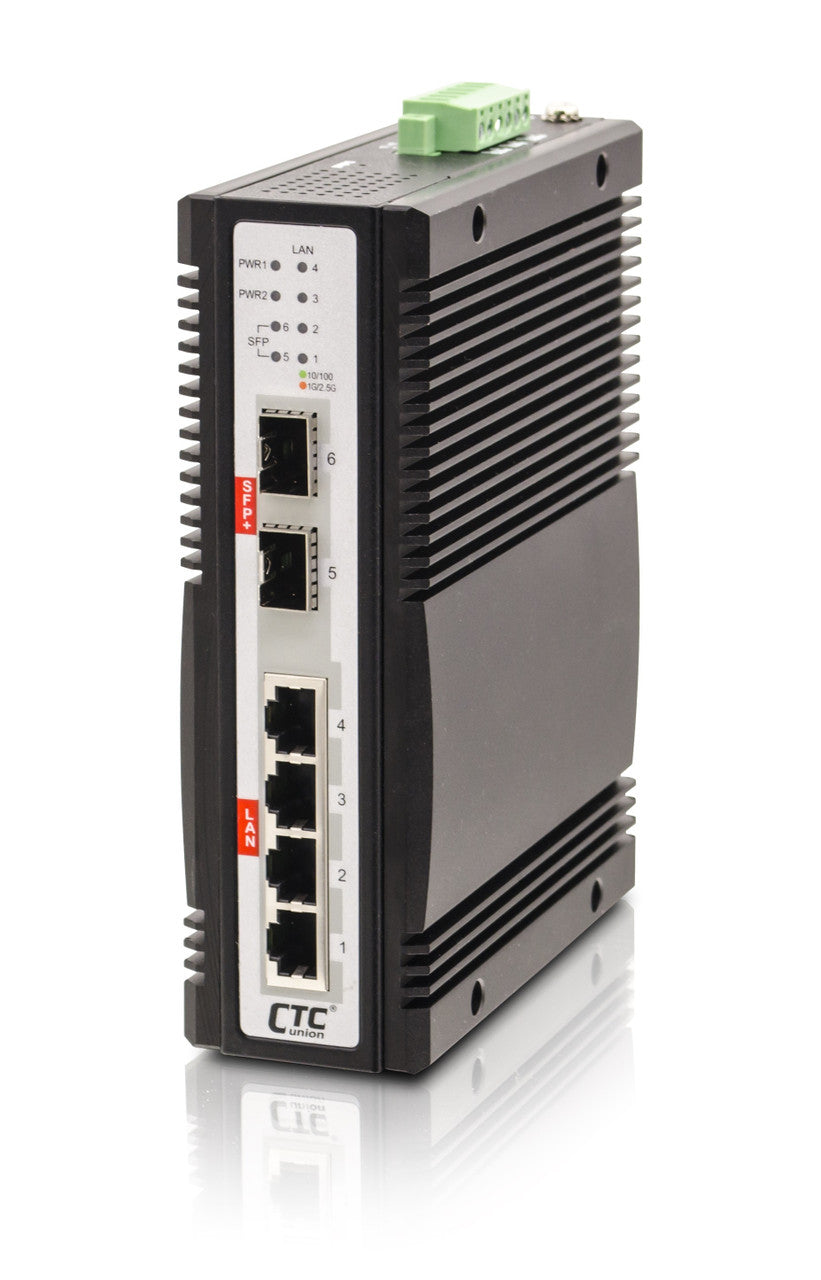

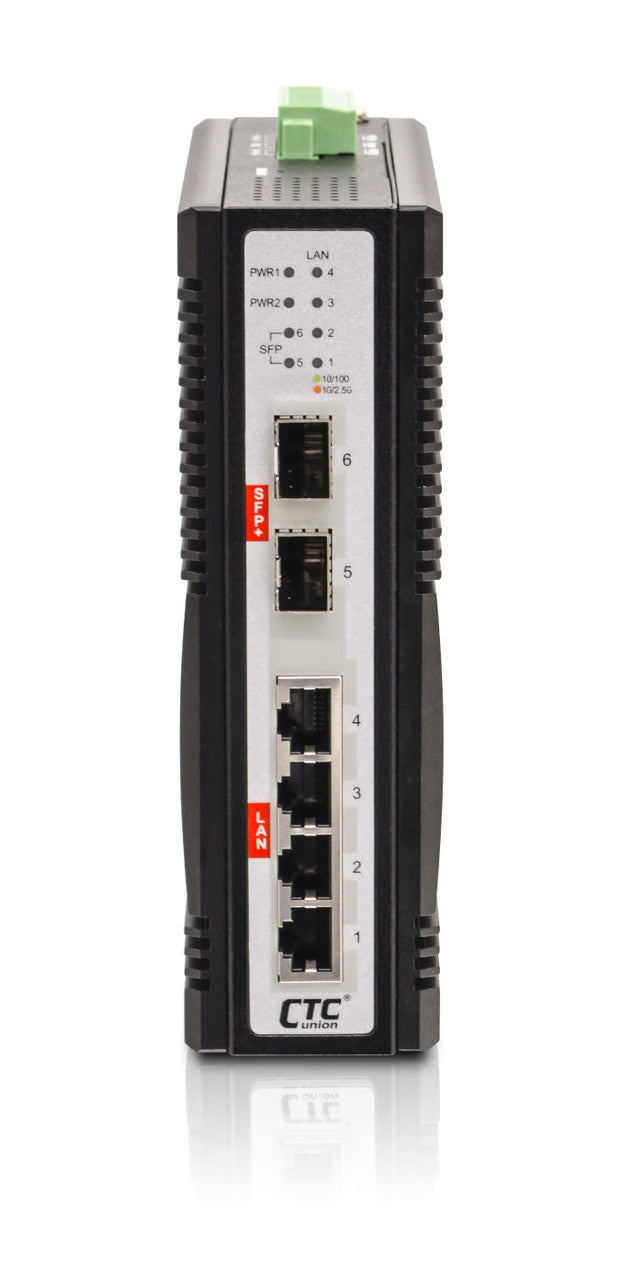

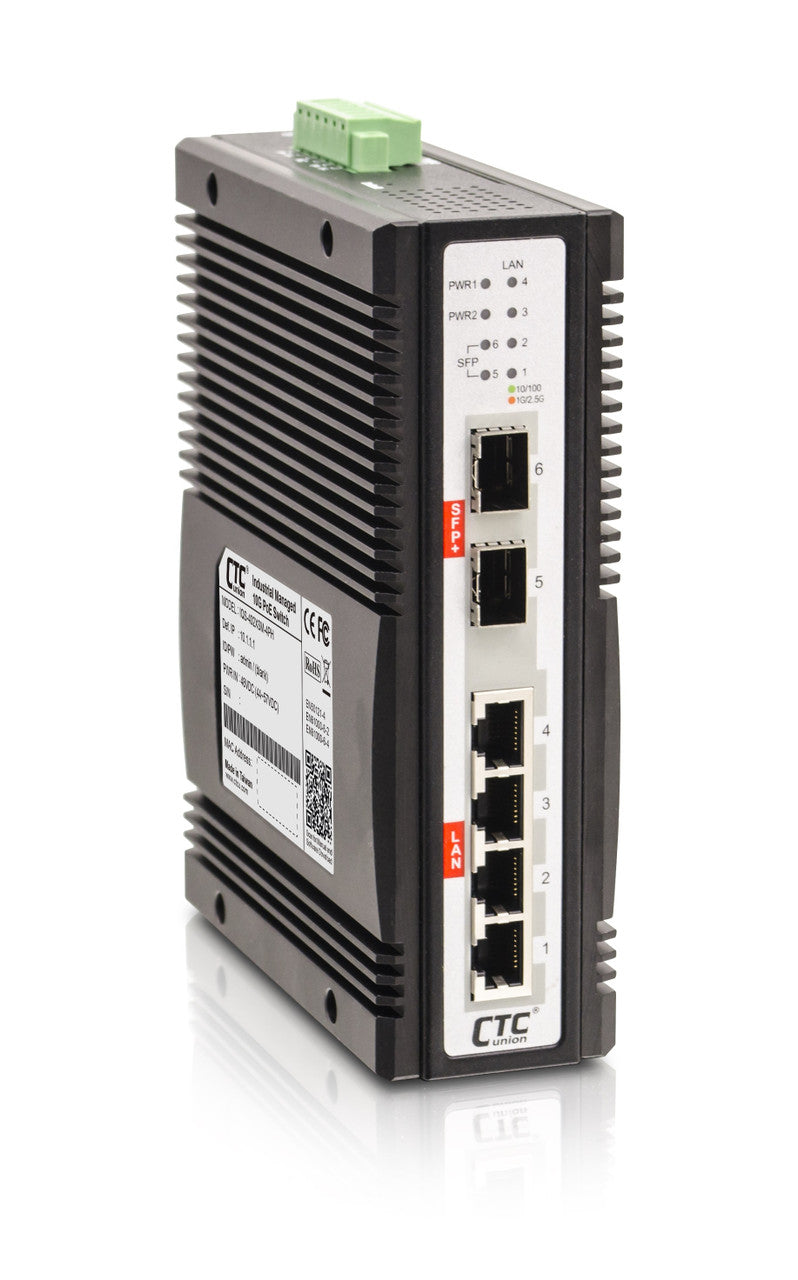

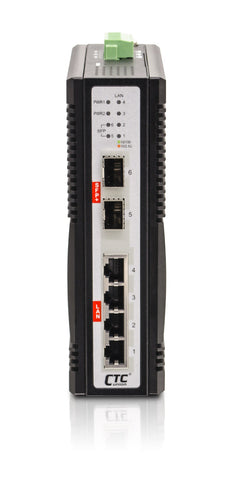

The IQS-402XSM industrial 2.5G managed Ethernet switch has 4 2.5Gbps copper ports and 2 SFP+ slots running 1G/2.5G/10Gbps speeds in order to meet high-bandwidth transmission requirements.

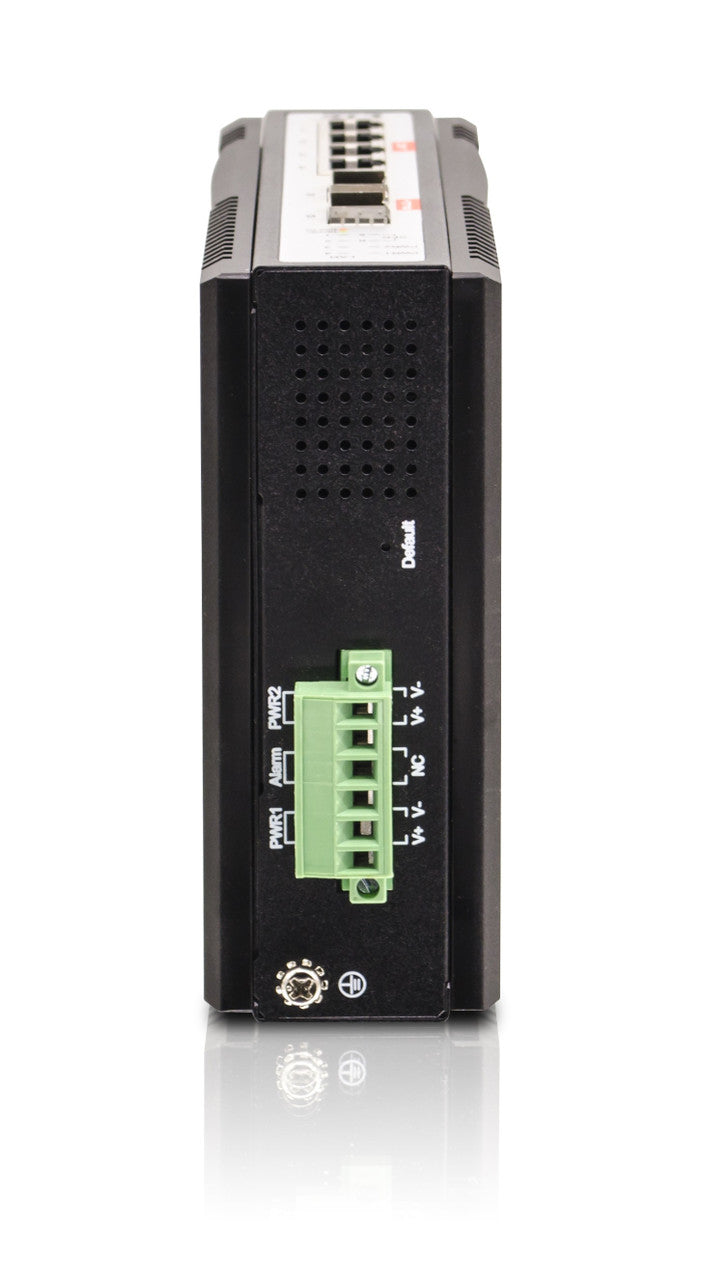

Switch has a fanless design, high MTBF, supports wide operating temperature, and redundant 12/24/48VDC power input.

It is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.

Features:

• 4x 10M/100M/1G/2.5GBase-T RJ-45+ 2x 1G/2.5G/10GBase-X SFP+
• Provides 3 ring instances that each can support μ-Ring, μ-Chain or Sub -Ring type for flexible uses.
• Supports up to 3 rings in one device (Please see CTC μ-Ring white paper for more details and more topology application)
• DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
• QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
• IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
• IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
• Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
• RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
• Supports IPv6 Telnet server /ICMP v6
• CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management

Additional information on IQS-402XSM series: PDF Installation Manual.
