12-Position Fiber Optic Fusion Splice Tray

This 12-position fiber optic splice tray is designed for secure and organized splice management inside fiber optic closures, wall-mount enclosures, and rack-mounted panels. The tray accommodates fusion, mechanical, or bare fiber splices depending on the splice chip used, and fits most standard splice enclosures.

The tray features integrated fiber routing channels and molded tie-down holes to maintain proper bend radius and reduce stress on fibers. A snap-together or slide-together design allows multiple trays to be stacked for higher-density installations. Injection-molded construction using UL94 fire-retardant material ensures durability and safety in demanding network environments.

Download product spec sheet (PDF)

Specifications

• Holds up to 12 fusion splice sleeves

• Supports 12 fusion splices, 12 mechanical splices, or 12 bare fiber splices (splice chip dependent)

• Integrated molded fiber routing

• Molded fiber tie-down holes

• Snap-together or slide-together stacking design

• Material: Injection-molded UL94 fire-retardant plastic

• Fits most standard fiber optic splice closures

• Dimensions: 7.1" L x 4.25" W x 0.48" H

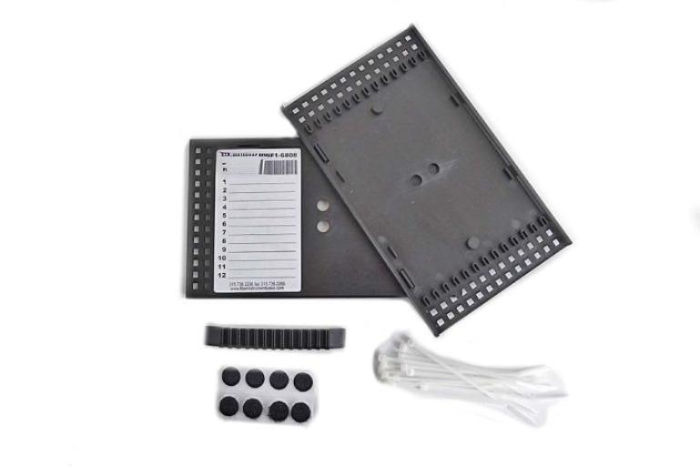

Included Accessories

• (12) 4" zip ties

• (1) 12-position fusion splice chip

• (1) tray label

• (4) adhesive Velcro dots
