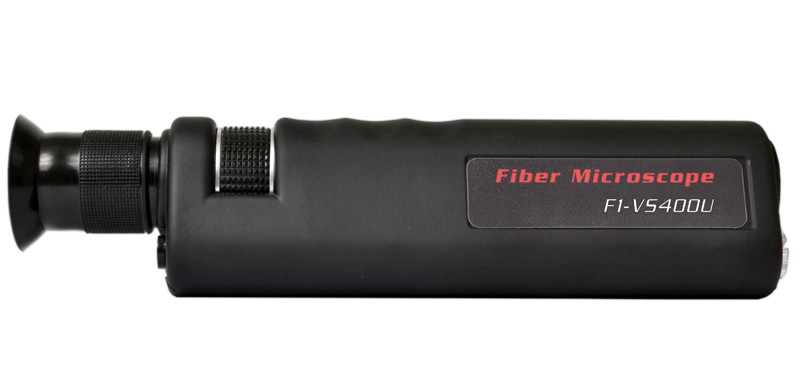

The 400x Handheld Microscope utilizes a white LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the endface.
This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination. Other features include Ergonomic soft hand grip, eye relief boot, interchangeable connector adapters, and battery life. Microscope light switch must be continually held down for light operation.
The 400x Handheld Microscope utilizes a white LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the endface.
This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination. Other features include: Ergonomic soft hand grip, eye relief boot, interchangeable connector adapters, and battery life.
Features:
- Low Cost, High Quality
- 400X Magnification, White LED Light
- Provides Coaxial Illumination
- Reveals Scratches, Defects and Contamination
- 40 Hours Battery Life
- Microscope light switch must be continually held down for light operation.
- Includes Universal 1.25mm & 2.5mm Adapter
- Can be used for SMA adapter (Note: SMA adapter not included, please order separately.)
Specifications
Optical Magnification: 200x (F1-VS200U), 400X (F1-VS400U)
Power Source: 3 X AAA alkaline batteries
Light Source: White LED, rated for 100,000 hours; 40 hour battery life
Weight: 0.6 Kg
Size: 225 mmL X 32mm diameter, 8.76” L x 2.16” H
Controls: Momentary on/off switch for light source, fine focus control wheel
Adapter Interface: 2.5mm universal adapter included, other types available
