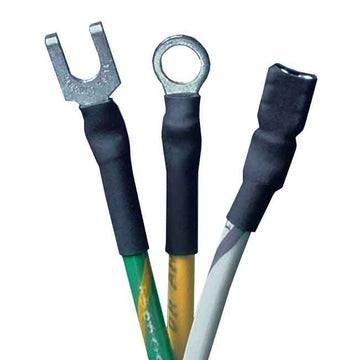

Thin Wall Polyolefin Heat Shrink, Black, 3/4" 4ft
Features:
- Shrink ratio of 2:1 insulates a wide range of diameters and irregular shapes
- Cross-linked, UV resistant material improves flame retardancy, chemical, and temperature resistance
Specifications:
| Part number | HSTT75-48-5 |
 RoHS Compliancy Status |
Compliant |
|
Part Description |
Thin Wall Polyolefin Heat Shrink |
|
Material |
Flame retardant polyolefin cross-linked except clear |
|
Color |
Black |
|
CSA Certified |
Yes |
|
Military Specification |
AMS-DTL-23053/5 Class 1 (material performance only) |
|
UL Recognized |
E122770 |
|
Length (ft.) |
4 |
|
Length (m) |
1.2 |
|
CE Compliant |
No |
|
Max. Recovered I.D. (In.) |
0.375 |
|
Max. Recovered I.D. (mm) |
9.5 |
|
Min. Expanded I.D. (In.) |
0.750 |
|
Min. Expanded I.D. (mm) |
19.1 |
|
Nominal Diameter (In.) |
0.750 |
|
Nominal Diameter / Size |
0.750 |
|
Nominal Recovered Wall Thickness (In.) |
0.030 |
|
Nominal Recovered Wall Thickness (mm) |
0.8 |
|
Pricing Description |
Heat Shrink Thin, .75"(19.0mm) Dia, Black |
|
Shrink Ratio |
2:1 |
|
Temperature Range |
-67øF 275øF (-55øC 135øC) |
|
Type |
Heat Shrink |
