Part number	PLT1M-C186
RoHS Compliancy Status	Compliant

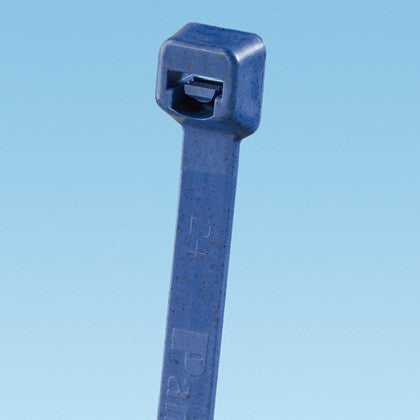

Part Description	Cable Tie, 3.9"L (100mm), Metal Detectable Polypropylene, Miniature cross section, Dark Blue
Product Type	Cable Ties
Material	Metal Impregnated Polypropylene
Color	Dark Blue
CSA Certified	No
UL Listed (File #E56854)	No
UL Recognized (File #E56854)	No
Length (In.)	3.9
Length (mm)	100
Width (In.)	0.098
Width (mm)	2.5
CE Compliant	No
Cross Section	Miniature
Head Height (In.)	0.186
Head Height (mm)	4.8
Head Width (In.)	0.188
Head Width (mm)	4.8
Locking Style	Locking
Material Flammability Rating	HB
Max. Bundle Diameter (In.)	0.87
Max. Bundle Diameter (mm)	22
Max. Continuous Use Temperature	239øF (115øC)
Min. Bundle Diameter (In.)	0.13
Min. Bundle Diameter (mm)	3.3
Min. Loop Tensile Strength (Lbs.)	15
Min. Loop Tensile Strength (N)	67
Plenum-Rated	No
Pricing Description	Cable Tie, 3.9"L (100mm), Miniature, Metal Detectable Polypropylene, Dark Blue
Thickness (In.)	0.044
Thickness (mm)	1.1
Tool	GTS, GTSL, GS2B, STS2

Features:

• Metal impregnated material allows identification by metal detectors or x-ray inspection to meet food, beverage and pharmaceutical safety standards by helping to reduce product contamination
• One-piece design with locking wedge provides low thread force and reliable installation to improve productivity and reduce operator fatigue
• Distinct blue color per common industry practices provides easy identification on conveyor belts and in finished products, reducing waste due to product contamination
• Excellent solution for general purpose maintenance and repair applications; ideal for use in control panels and overhead cable runs
• For indoor use
