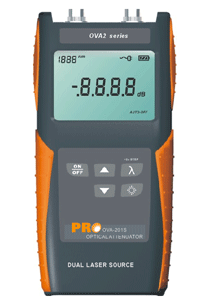

Variable Attenuator Instrument (0 ~ 60 dB Attenuation)

Precision Rated Optics Part No.: OVA-202S

  • $ 3,395.00 or



The OVA digital variable optical attenuator is a compact, portable instrument widely used in fiber link certification and routine maintenance.†

Features
  • Low insertion loss, wide attenuation range
  • Three attenuation steps available: 10dB, 1.0dB, 01dB
  • Low power consumption
Download Spec Sheet: OVA-202S Variable Attenuator Instrument PDF Spec Sheet


Specifications:

OVA-201S OVA-202S
Wavelength (nm) 1310nm/1550nm
Attenuation Range*** 0-80dB 0 -60dB
Max Input Power 24 dBm
Linearity =<0.3dB
Accuracy*** 0.2 dB @ 3-30dB;
1.0dB@30-60dB;
2.0dB@60-80dB
0.2 dB @ 3-30dB;
0.5dB@20-50dB;
1.0dB@50-60dB
Insert ion Loss <3 dB
Return Loss >50dB(PC),>60dB(APC)
Working time >10hours (2x size AA)
Fiber Type SMF 9/125µm
Connector Interchangeable FC/PC, ST/PC, SC/PC connectors( FC/APC, SC/APC is available at the time of ordering)
Operating Temperature -10 C to 50 C
Storage Temperature -20 C to 60 C
Dimension (mm) 160L*76W*45H (mm)
Weight 360g( including battery)

Note: *** Valid at 1550nm, CW, 23†ñ3, Relative humidity 70%, with an FC connector†

Standard Accessories:

  • FC/SC/ST interchangeable connectors
  • Carrying Case
  • User Manual
  • Worldwide compatible AC/DC adapter
