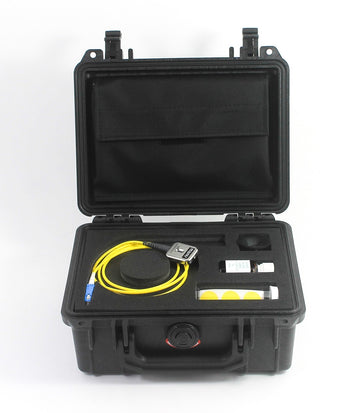

Anritsu FiberConnect OTDR Bare Fiber Pigtail Kit with Single Mode SC/UPC pigtail
Anritsu FiberConnect OTDR Bare Fiber Pigtail Kit with 9/125µm Single Mode SC/UPC pigtail
Now you can test without terminating!
The FiberConnect is the ultimate time-saving solution for coupling unterminated fiber or optical components to test equipment. Save time by testing optical fibers without connectorizing. Easy-to-use, only a single drop of index matching oil is required. Strip, clean and cleave the fiber then insert it into the unit until the end face meets the permanently mounted fiber.
The FiberConnect is extremely easy-to-use - only a single drop of index matching oil is required. The fiber to be tested is stripped, and cleaned and cleaved, then inserted into the unit until the end face meets the permanently mounted fiber. The result is a low loss, low reflectance connection optimal for any testing application.
Features and Benefits:
- Highly repeatable
- Low insertion loss and back reflection
- Evaluation of fiber span or components without termination
- Significant reduction of test time
- Index Matching Oil
- Maintenance Kit
- Cleaning Brush
- Magnetic Stand
- Carry Case
- Spare Pigtail
- Fiber type: Single-mode: 9/125 µm
- Pigtail length: 1 m
- Insertion loss: (Typical) <0.6 dB
- number of insertions: 2000 minimum
- Back reflectance: <-50 dB
Download Product Spec Sheet:
