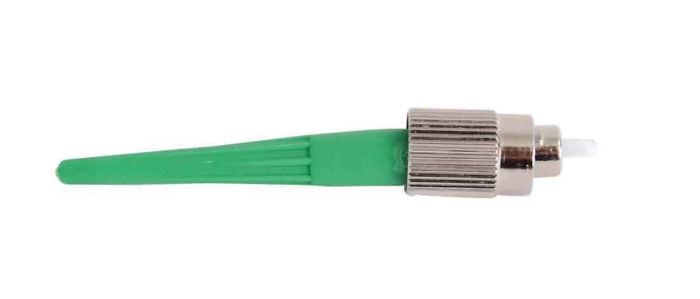

Cheetah FC APC Splice-On Connector, Singlemode 900µm, Green – 10 Pack

The Cheetah FC APC Splice-On Connector is engineered for precise, high-performance singlemode fiber terminations in demanding applications. Featuring a pre-cleaved, factory-polished pigtail and an integrated 27mm fusion splice sleeve hidden within a custom strain relief boot, this connector enables fast, space-saving installation without the need for splice trays or extra hardware. Compatible with leading fusion splicers from FIS, AFL, Sumitomo, and Fitel, the FC APC Cheetah delivers superior return loss and long-term durability.

Key Features:

• Connector type: FC APC

• Fiber type: Singlemode, 9/125µm

• Jacket size: 900µm, green

• Polish type: APC (Angled Physical Contact)

• Format: 10-pack

Product Highlights:

• Factory pre-polished and pre-cleaved for fast and consistent installation

• Built-in 27mm fusion splice sleeve protected by custom strain relief boot

• Eliminates need for splice trays, chips, or excess enclosure space

• Compatible with most major fusion splicers that support removable fiber holders

• Constructed with zirconia ferrules for optimal optical alignment

• Industry-leading return loss specs:

  • APC: -65 dB

  • UPC: -55 dB

  • PC: -30 dB

Package Includes:

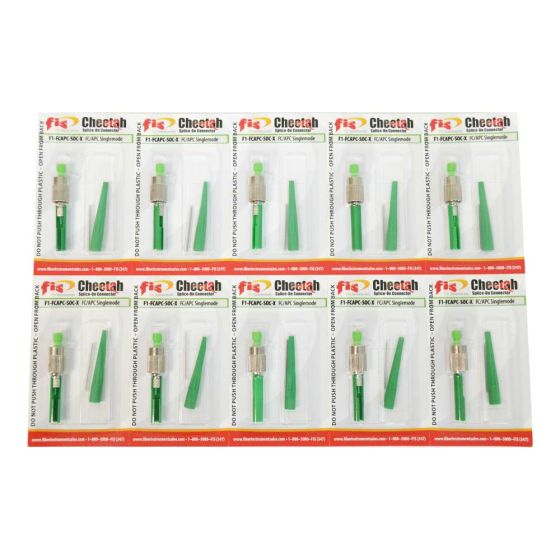

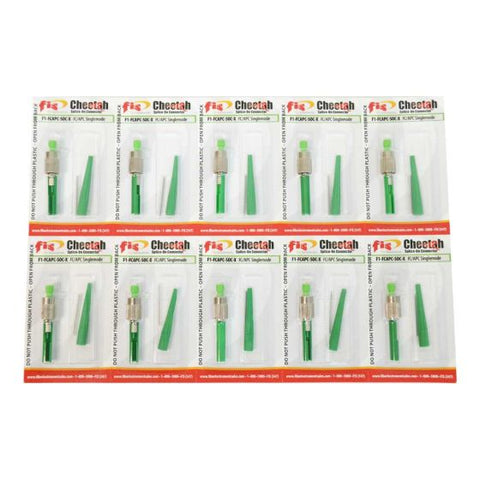

• 10x Cheetah FC APC Splice-On Connectors (singlemode, green)

• 10x 27mm fusion splice sleeves

• 10x integrated strain relief boots

Ideal for singlemode applications requiring low back reflection, such as long-haul networks, high-speed telecom, and CATV systems.
