Cheetah FC PC Splice-On Connector, Multimode OM3 50µm, 900µm, Aqua – 100 Pack

The Cheetah FC PC Splice-On Connector is purpose-built for fast, high-performance field terminations in OM3 multimode fiber networks. Each connector comes factory pre-cleaved and pre-polished to reduce prep time and ensure consistency across large-scale installations. The 27mm fusion splice sleeve is integrated into a custom strain relief boot, eliminating the need for separate splice trays and saving space in dense patching environments. Fully compatible with top fusion splicers from FIS, AFL, Sumitomo, Fitel, and others.

Key Features:

• Connector type: FC PC

• Fiber type: Multimode OM3, 50/125µm

• Jacket size: 900µm, aqua

• Polish type: PC (Physical Contact)

• Format: 100-pack

Product Highlights:

• Factory pre-cleaved and pre-polished for rapid, reliable installation

• Integrated 27mm fusion splice sleeve concealed within strain relief boot – no splice tray required

• Compatible with most industry-leading fusion splicers using removable fiber holders

• High-performance zirconia ferrules ensure precise core alignment and long-term stability

• Return loss performance meets or exceeds:

  • APC: -65 dB

  • UPC: -55 dB

  • PC: -30 dB

Package Includes:

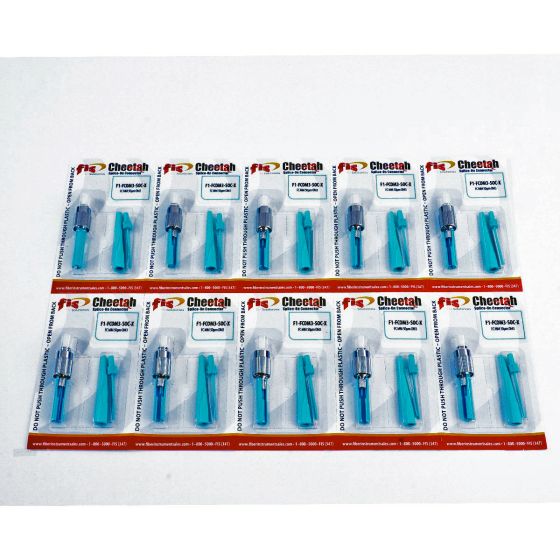

• 100x Cheetah FC PC Splice-On Connectors (OM3, aqua)

• 100x 27mm fusion splice sleeves

• 100x integrated strain relief boots

An excellent choice for multimode applications in data centers, campus networks, and high-bandwidth LANs where speed, density, and performance are paramount.
