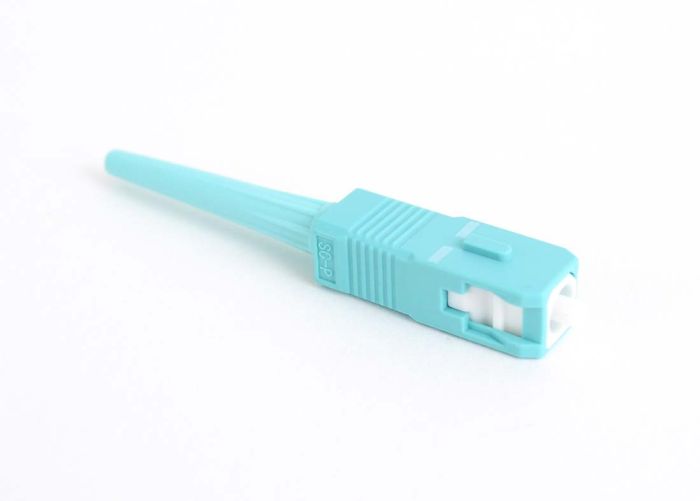

Cheetah SC PC Splice-On Connector, Multimode OM3 50µm, 900µm, Aqua – 100 Pack

The Cheetah SC PC Splice-On Connector delivers a fast, reliable, and space-saving termination solution for OM3 multimode fiber networks. Each connector is pre-cleaved and factory-polished, ensuring quick and consistent installation with minimal prep time. The integrated 27mm fusion splice sleeve is concealed within a custom strain relief boot, eliminating the need for splice trays or bulky enclosures. Designed for seamless compatibility with leading fusion splicers such as FIS, AFL, Sumitomo, and Fitel.

Key Features:

• Connector type: SC PC

• Fiber type: Multimode OM3, 50/125µm

• Jacket size: 900µm, aqua

• Polish type: PC (Physical Contact)

• Format: 100-pack

Product Highlights:

• Factory pre-cleaved and pre-polished for the fastest possible field installation

• Built-in 27mm fusion splice sleeve within a strain relief boot – no splice tray needed

• Compatible with most industry-standard fusion splicers using removable fiber holders

• High-performance zirconia ferrules for precise core alignment and durability

• Meets or exceeds return loss standards:

  • APC: -65 dB

  • UPC: -55 dB

  • PC: -30 dB

Package Includes:

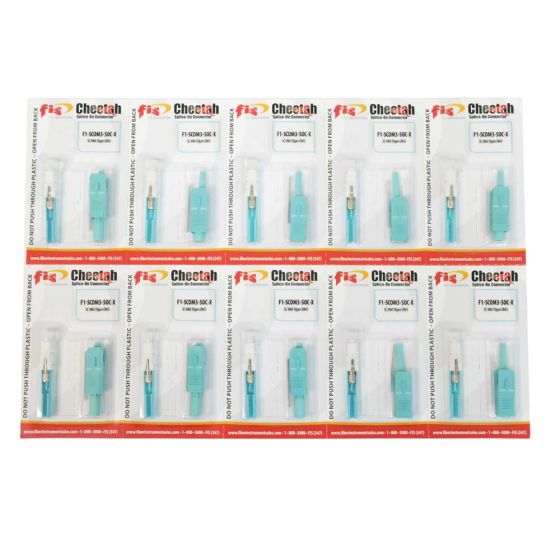

• 100x Cheetah SC PC Splice-On Connectors (OM3, aqua)

• 100x 27mm fusion splice sleeves

• 100x integrated strain relief boots

A reliable, high-speed solution for multimode fiber terminations in data centers, enterprise backbones, and high-bandwidth LAN environments.
