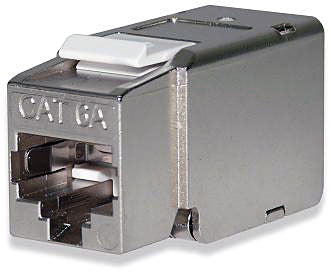

Cat 6A Shielded Keystone Jack 568A/B, Mfr SignaMax

SignaMax Part No.: KJS458-C6A

  • $ 10.29 or



Category 6A Screened Jacks are designed for the same high level of performance standards as our unscreened (UTP) jacks. This uniquely designed connector features a toolless termination method for quick and easy installation. The connectors contact design provides enhanced plug-to-jack connection integrity and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Jacks are fully shielded to optimize protection from EMI including alien crosstalk.

Category 6A screened keystone jacks are compatible with Signamax keystone faceplates, surface mount boxes, and 24- and 48-port screened snap-in patch panels providing flexibility in field installation and easy connection to the telecommunications bonding and grounding system.

Product Features:

  • Designed to meet IEEE 802.3an transmission requirements
  • Support category 6A 100-meter channel performance
  • Guaranteed to meet or exceed TIA-568-C.2 channel performance
  • Overall solid screened design
  • Compatible with Signamax screened snap-in patch panels
  • Rated for at least 750 plug insertions providing for the highest level of system reliability
  • Contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 po-sition plugs
  • T568A and T568B wiring with an easy to read color-code wiring label for maximum flexibility
  • 110-type contacts provide improved wire retention and ease of termination
  • Terminated with tool-less termination cap

Download Product Spec Sheet:

Specifications:

TRANSMISSION PERFORMANCE: ANSI/TIA-568-B.2-10: Meets or exceeds category 6A (1 - 500 MHz) channel specifications

TRANSMISSION MEDIA: Unscreened or screened twisted pair (UTP/ScTP/FTP/SFTP)

JACK TYPE: 8p8c (8-position, 8-contact) "RJ45" type

WIRING SCHEME: ANSI/TIA/EIA-568-B.2: T568A & T568B,ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

WIRE GAUGE: 22-24 AWG (0.644 - 0.511 mm)

ELECTRICAL: Insulation resistance: min 500 MOhm @ 100 Vdc, Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min, 1,500 Vdc/ac peak contact to panel @ 60 Hz for 1 min, Spring wire contact resistance: max 20 Mohm,IDC contact resistance: max 2.5 MOhm

CONSTRUCTION: Housing: zinc-alloy fully shielded, Jack spring wire: phosphor bronze alloy plated with 50 ‰_in of gold over 70-100 ‰_in of nickel, IDC: 110 type, phosphor bronze alloy with 100 ‰_in 100% tin alloy

MECHANICAL: Total contact force: min 800 g for 8 wire leads, Retention: 50 N (11 lbf) for 60†ñ5 s, Mating cycle life: min 750 cycles

FOOTPRINT: Standard keystone footprint

MOUNTING DIMENSIONS: D 41.8 mm H 19.3 mm W 17.0 mm, D 1.65 in H 0.76 in W 0.67 in

ENVIRONMENTAL CONDITIONS: Storage: -40†­C - +70†­C (-40†­F - +158†­F), Operation: -10†­C - +60†­C (+14†­F - +140†­F), RH (operation): max non-condensing 93%

COMPLIANCE: ANSI/TIA-568-C.2, IEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, IEC 60603-7

APPLICATIONS: X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

WARRANTY: 5-year limited component warranty, 10-year Signamax Link/Channel Warranty, 15-year Signamax Extended Component Warranty, 25-year Signamax Cabling System Warranty
