PLP Dome Enclosure 6.5"x22" Central Tube w/o Buff 144 Splice
PLP Dome Enclosure 6.5"x22" Central Tube w/o Buff 144 Splice
6.5" x 22"
Max Splice Capacity: (240) Single Fusion (LGSTS72)
(648) Ribbon/Mass Fusion (LGSTR216 Tray)
- Butt/Expressed Splice Configuration
- Application: Direct buried, below grade, pole/wall mount or aerial
- Quick to assemble, no special tools required
- Tested in accordance to GR-771-CORE by an independent outside lab
- Available in flame retardant material
- Collar system allows for quick re-entry
- Segmented end plate design provides independent access to every cable
- Flexible grommet sealing technology supports a wide range and quantity of flat or round cable profiles.
- Standard 6-1/2" Dome Kits provided with (2) 8003691 grommets and (2) 8003692 grommets. Customized kits available upon request.
- Standard 9-1/2" Dome Kits provided with (2) 8003692 grommets and (2) 8003693 grommets. Customized kits available upon request.
- In-Line options available

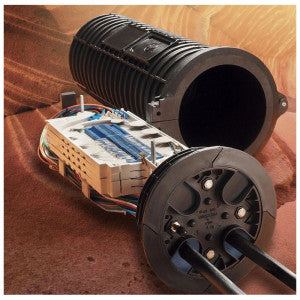

The COYOTE® Dome Closures have the versatility and features that make it a perfect choice for fiber-to-the premises networks. Both the 6.5" and 9.5" dome closure designs use PLP’s patented segmented end plate system which allows independent access to each cable port without disruption to surrounding cables.
ECCN EAR99
Country of Origin US - United States
Brand COYOTE
Max. Single Fusion Splice Capacity 36
Style Splice Case
