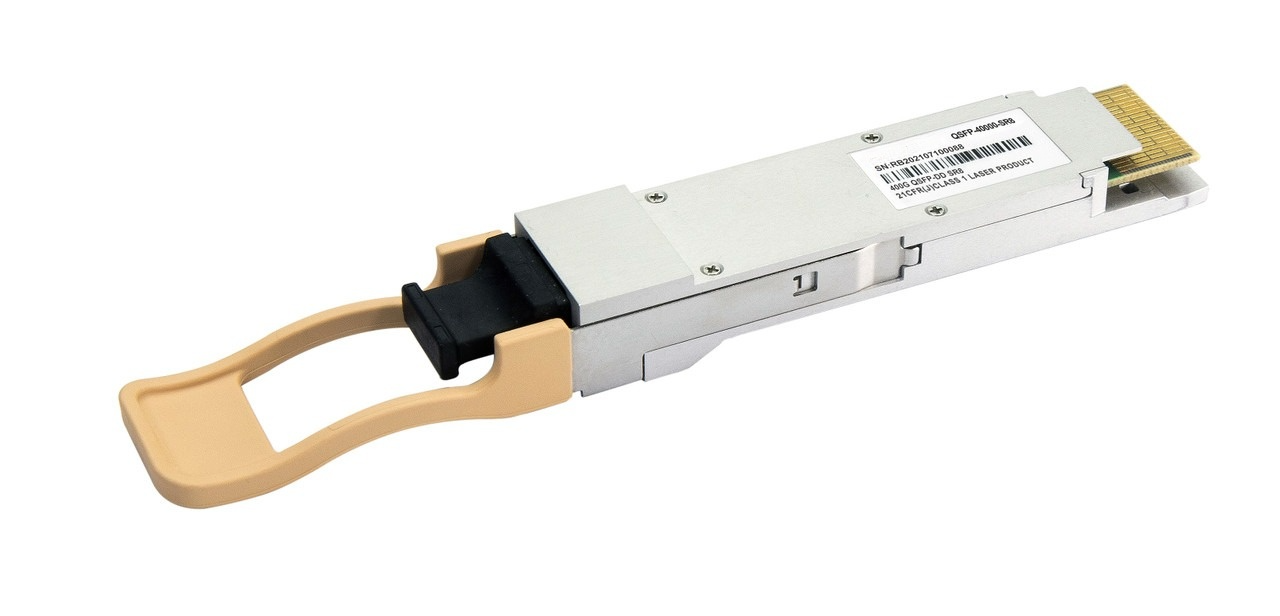

QSFP-DD 400G SR8 optical transceiver, multimode, 100m, MPO-16 connector
Product description
The QSFP-40000-SR8 is a parallel 8x 50Gb/s Quad Small Form-factor Pluggable Double Density (QSFP-DD) optical transceiver. It provides increased port density and total system cost savings.
The QSFP-DD format achieves data speeds of 400G full-duplex. The QSFP-DD full-duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.
Tested compatible on various 400G Ethernet switches from Cisco, Arista, Juniper, and Edge-Core, and many other manufacturers adopting open MSA compliant slot policies.
Additional information on QSFP-40000-SR8 transceiver: Product Datasheet
QSFP-40000-SR8 400G QSFP-DD MMF module specifications
| Form factor | QSFP-DD |
| Speed | 8 x 50Gb/s (400G) |
| Optical connector | MPO-16 APC |
| Operating distance | max. 100m (OM3) |
| Power | single 3.3V |
| Compliance | MSA type 2 60-pin connector, RoHS |
| Operating mode | multi-mode, VCSEL light source |
| Fiber type | Multi-mode 50/125um OM3, OM4 MPO cable |
| Wavelength | 850nm |
| Digital Diagnostic | Yes (SFF-8636 compliant) |
