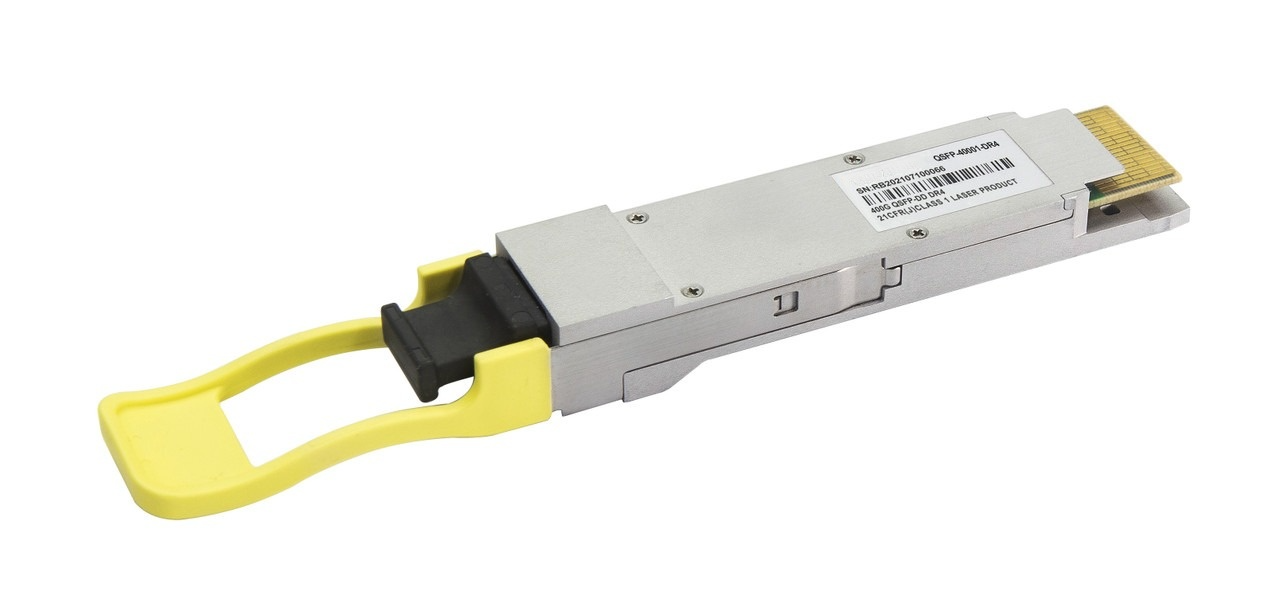

QSFP-DD 400G DR4 optical transceiver, single-mode 4 channels single lambda 1310nm, 500m reach over SMF, MPO connector, QSFP-40001-DR4
Product description
The QSFP-40001-DR4 is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 500m reach over SMF optical communication applications.
Module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
It uses an MPO 12 strand connector to carry 4 parallel channels of 100G capacity each, using 1310nm EML lasers.
Unit can reach up to 500m distances on G.652 types of SMF and requires 8 strands of SMF terminated into an MPO-12 connector.
The transceiver has been tested and found compatible on 400G QSFP-DD ready Ethernet switches from Arista, Cisco, Juniper, and Edge-Core. Transceiver operates into any 3rd party vendor equipment that follows the MSA open slot standard.
QSFP-40001-DR4 400G QSFP-DD SMF module specifications
| Form factor | QSFP-DD |
| Speed | 400G, IEEE 802.3bs 400GBASE-DR4 spec. compliant |
| Optical connector | MPO 12 |
| Operating distance | 500m with FEC |
| Power | single 3.3V |
| Compliance | QSFP-DD MSA, RoHS 2.0 |
| Operating mode | 8x53.125Gb/s electrical interface (400GAUI-8), 60 pin |
| Fiber type | Single-mode 9/125um, minimum 8 strands MPO |
| Wavelength | 1310nm, EML laser, 50Gbps PAM |
| Digital Diagnostic | Yes (SFF-8472, SFF-8636 compliant) |
Additional information on QSFP-40001-DR4 transceiver:
PDF Datasheet
