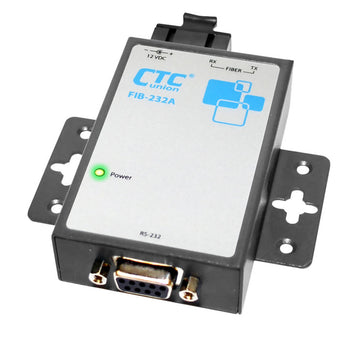

RS-232 over multi-mode fiber media converter, SC connector, 2Km range

CTC Union Part No.: FIB-232A-SC002

  • $ 120.00 or



The FIB-232A-SC002 provides a fiber converter solution to extend 3 wire serial RS-232 interface transmission up to 2km over multi mode fiber. Unit is also available with longer range optics, multi-mode and BiDi WDM optical modules for operation on single strand fiber optic circuits. The FIB-232A secures data transmission over EMI resistant fiber at speeds up to 230.4kbps for asynchronous RS-232. It is presented in a compact size with wall mounting holes and it is available also with optional DIN rail mounting.

Technical specifications

Interfaces: DB-9 female connector for RS-232 serial asynchronous port and dual SC fiber port
Operating wavelength: 1310nm multi-mode
Operating distance: 2Km on 62.5/125um or 50/125um fiber
Optical connector: SC duplex, ST or FC available on request
Front LEDs: Power
Power: External 90-260V AC switching adapter 12VDC@400mA with NEMA1-15(2 blades only), US type main plug
Temperature: 0 ~ 5°C (Operating); 0 ~ 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 50mm x 95mm x 22mm
Weight: 90g (without AC adapter)
Compliance: CE, FCC Class A
MTBF: 65,000 hours

Product Sheet:
