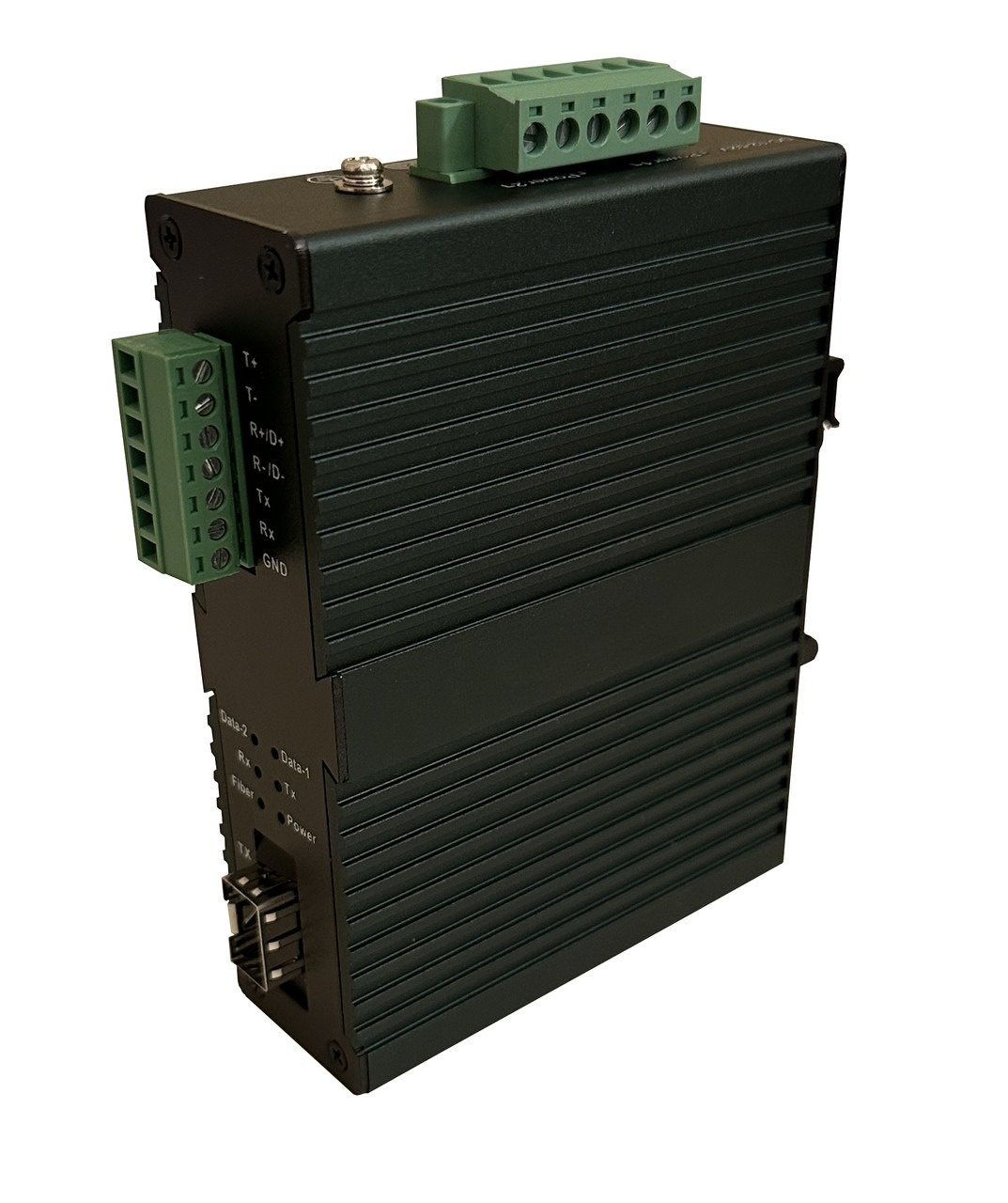

HC-SERIAL-SFP - 1x RS-232 and 1x RS-485/422 over single strand fiber industrial media converter, 8kV isolation, enhanced -40 to 75 Celsius temp. SET of TWO

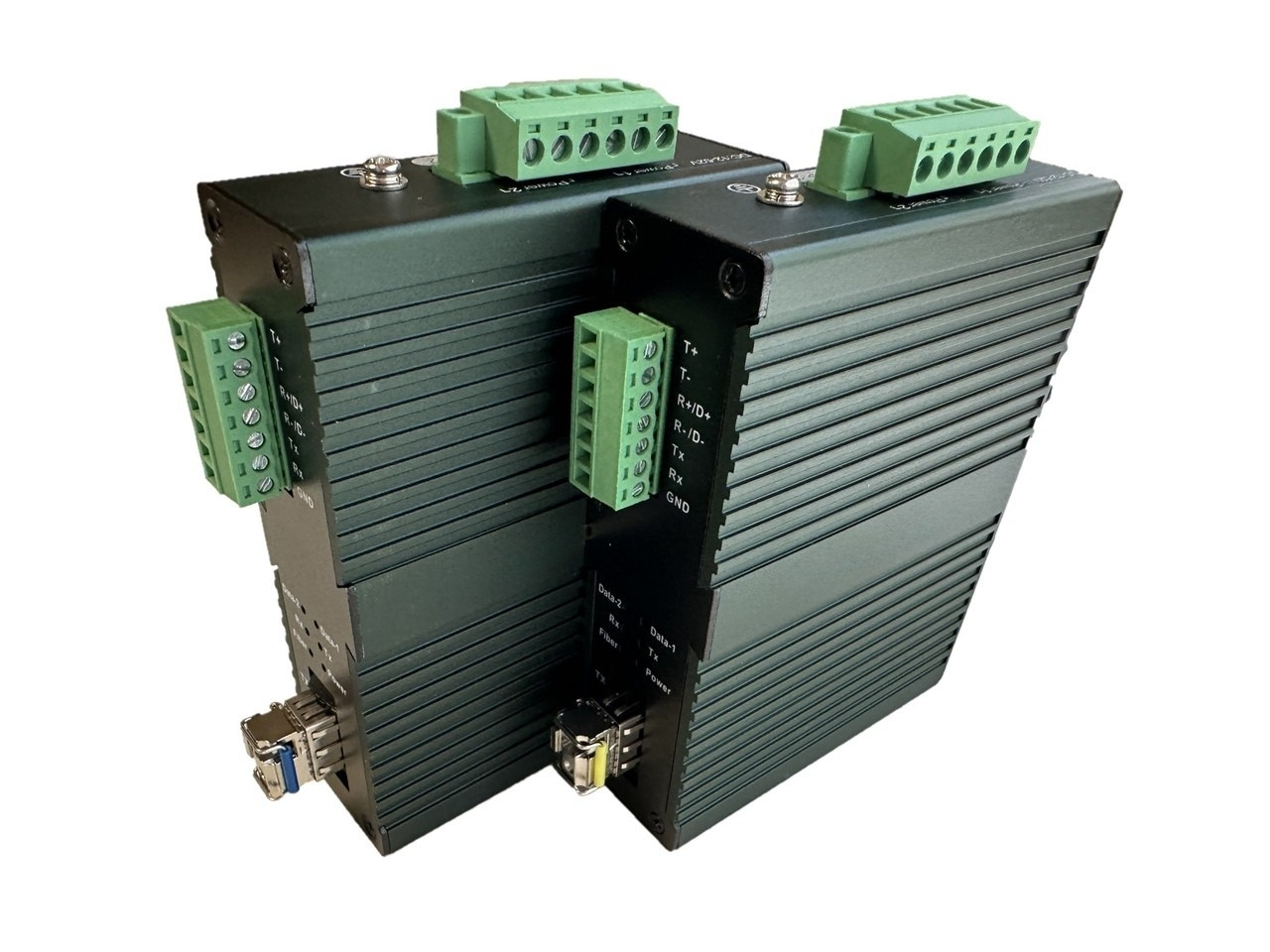

The HC-SERIAL-SFP is a SET of TWO industrial grade fiber media converters that extend asynchronous RS-232 and RS-485/RS-422 serial interfaces over one strand only of a fiber optic circuit, either SM or MM type.
The set is capable of transporting both RS-232 and RS-485/422 interfaces simultaneously and independently of one another.
Interfaces for connection to RS-232 (3 wire) and RS-485 (2 or 4 wire, half or full duplex)/RS-422 (4 wire, full duplex) and available separately on the 7 pin block connector on the front panel of the media converter.
The HC-SERIAL-SFP Series secures asynchronous serial data transmissions over EMI resistant fiber at speeds up to 256kbps.
HC-SERIAL-SFP media converter units have each two redundant DC power inputs.
The media converter's industrial design is perfect for keeping your industrial automation applications running smoothly and continuously.
The HC-SERIAL-SFP media converter set is available with an extended -40° to 75°C operating temperature range.
Features:
- Wide temperature -40°C~75°C
- Extends serial transmission distance up to 20km over a single strand of SMF or up to 500m over one strand of MMF
- Redundant dual power inputs (12~60VDC)
- Supports RS-232 and RS-422/485(2/4 wire) simultaneous transmission over fiber
- Enhanced serial baudrate up to 256kpbs
- 8KV isolation for serial signal
- Hardened housing with IP30 protection

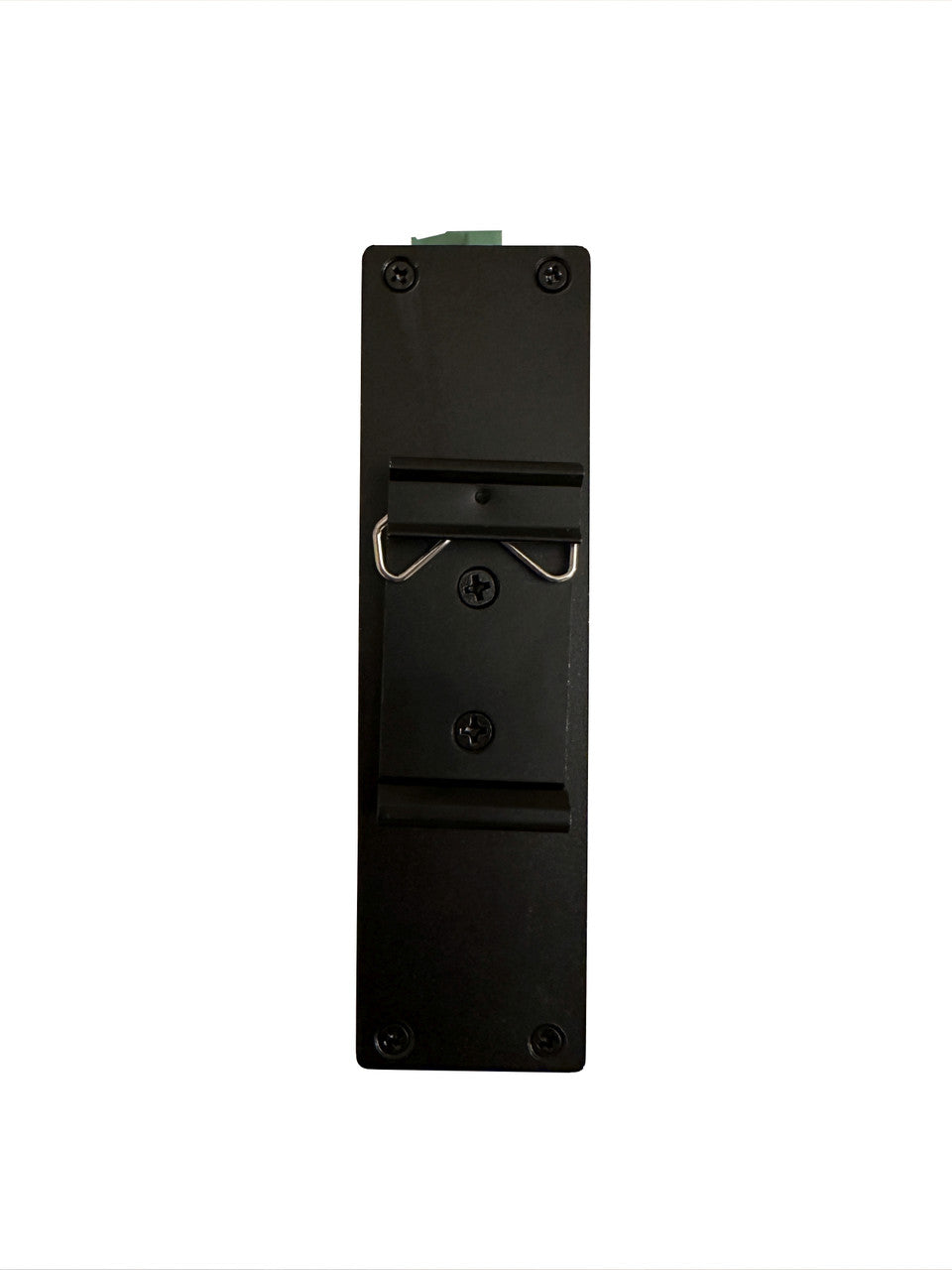

- Fan-less and DIN-Rail design for harsh industrial environment
- Adjustable pull high/low resistor and terminator for RS-422/485 transmission
Technical specifications:
| Interfaces: | 7 pin screw block connector for RS-485/RS-232/RS-422 serial asynchronous port and SFP slot for 155M fiber port |
| Operating wavelength: | 1310nm/1550nm BiDi (SET of TWO complementary units) |
| Operating distance: | up to 20Km over SMF or 500m over MMF |

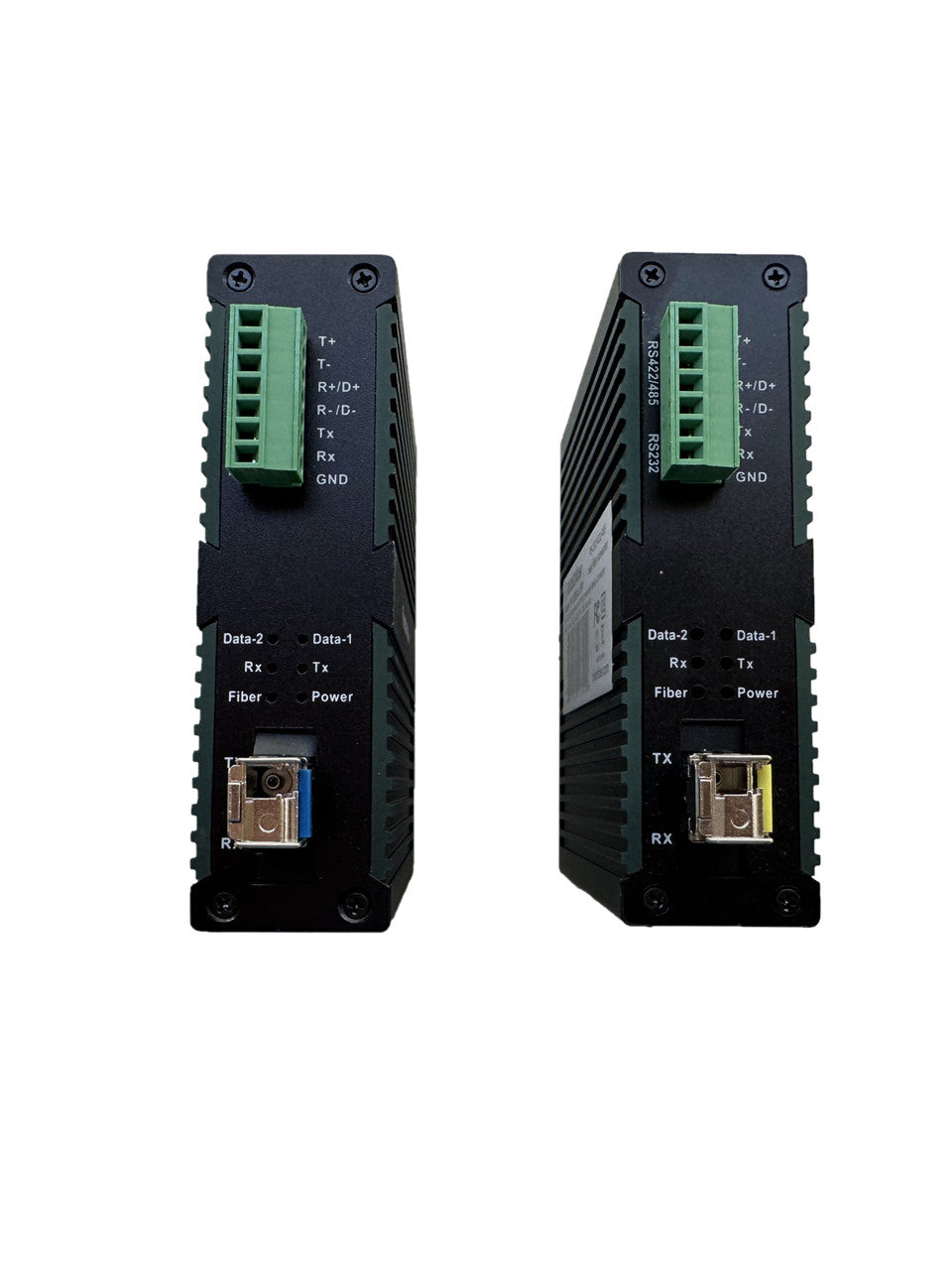

| Optical connector: | simplex LC |

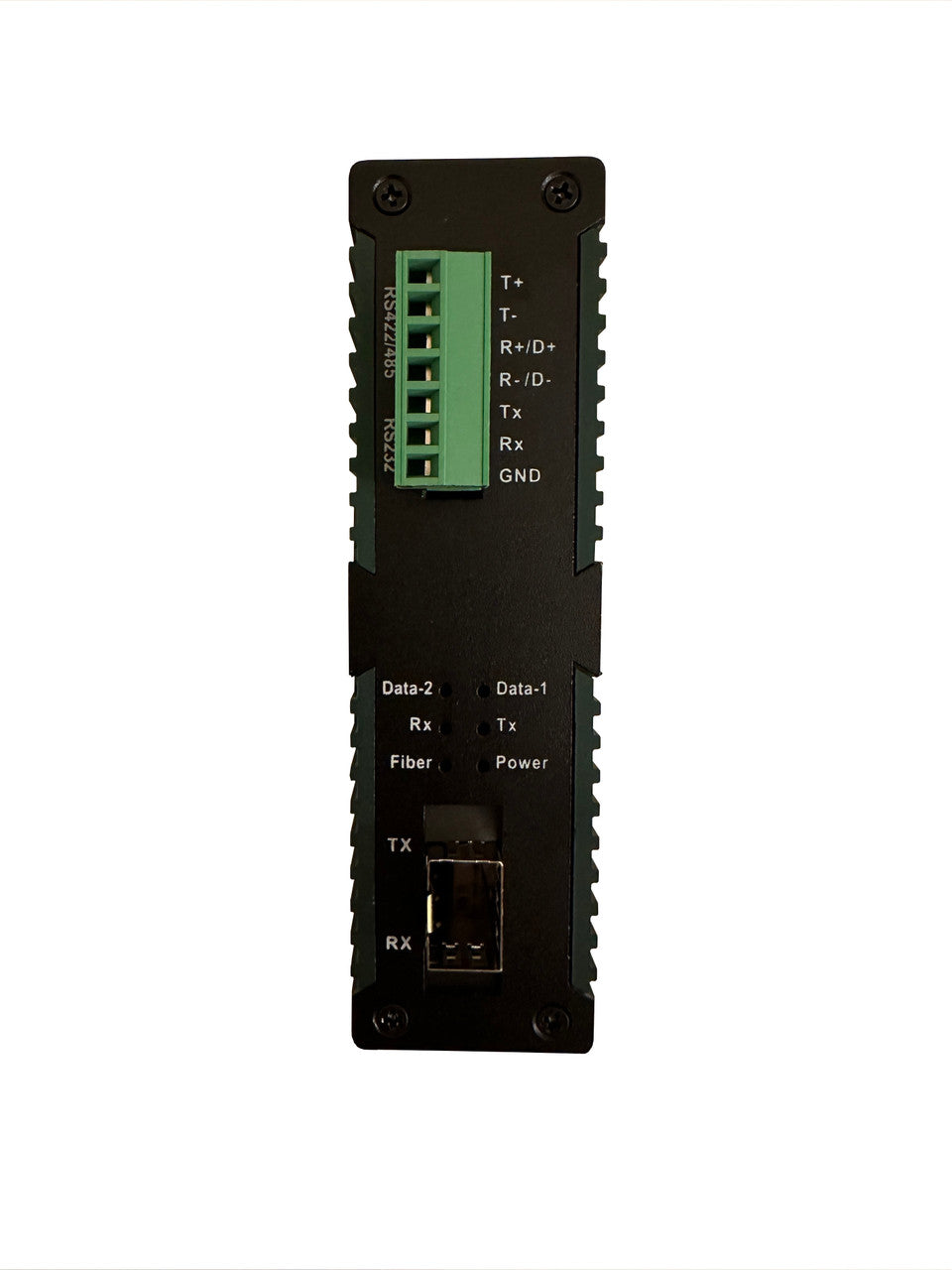

| Front LEDs: | PWR, Fiber Link, TD 232, RD 232, Tx 485, Rx 485 |

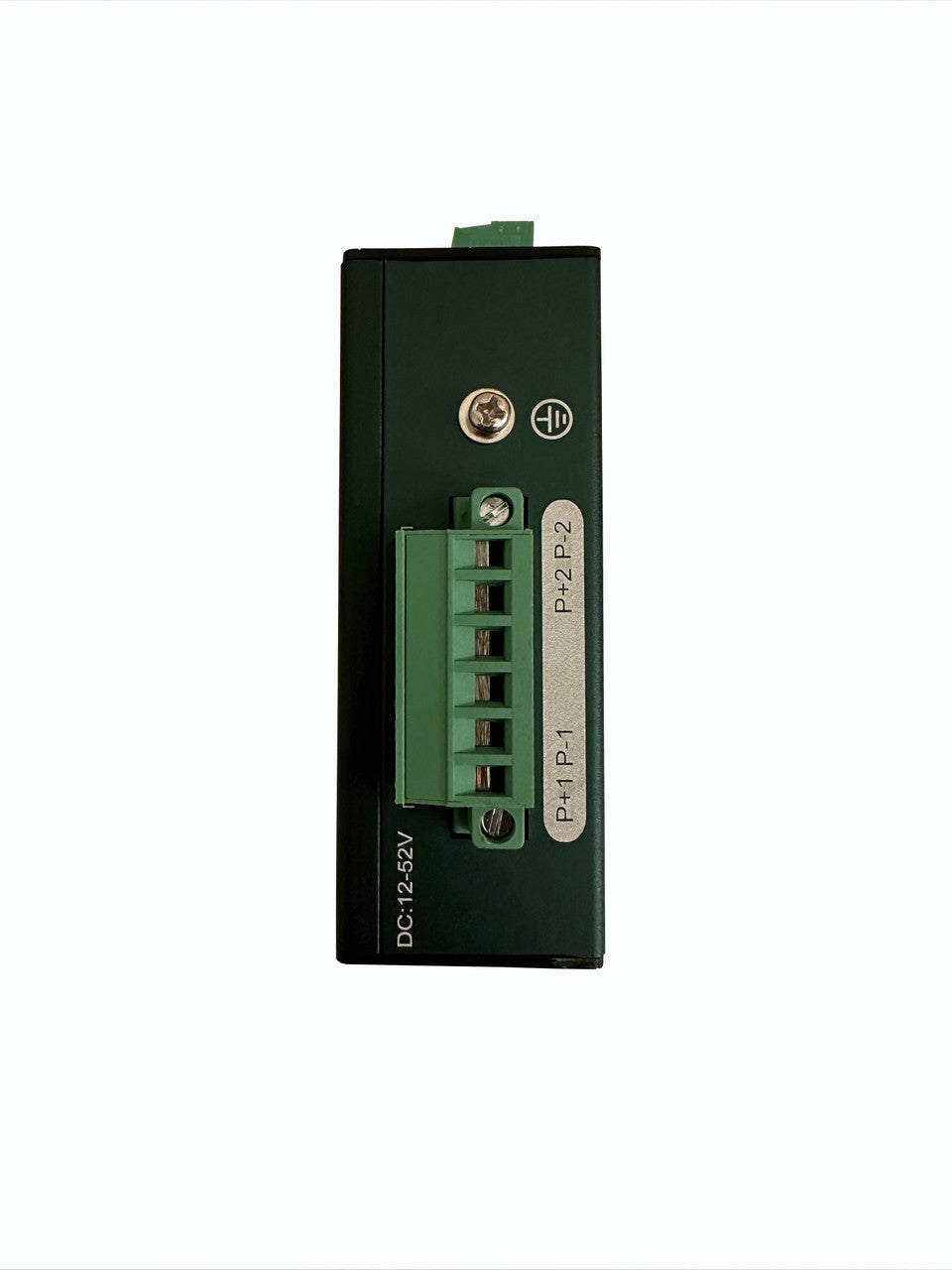

| Power: | dual DC 12~60V input power supplies (screw block connector) |
| Temperature: | -10~60°C (Operating); -40~75°C (Extended Range) |
| Humidity: | 5~95% non condensing |
| Consumption: | less than 3W |
| Dimensions(WxDxH): | 118 x 88 x 33mm |
| Weight: | 370g |
| Compliance: | CE, FCC Class A, EMI: EN55022 Class A, Vibration : IEC 60068-2-6 Shock : IEC 60068-2-27, Free Fall : IEC 60068-2-32 |
| MTBF: | 100,000 hours |
Additional information on HC-SERIAL-SFP fiber media converter:
PDF datasheet.
Note: With the HC-SERIAL-SFP serial extender set a pair of BiDi 1.25G SFP transceivers 20Km reach are included. Any other Gigabit rated SFPs can be used: multimode, singlemode, BiDi, CWDM or DWDM with reach up to 120Km.
