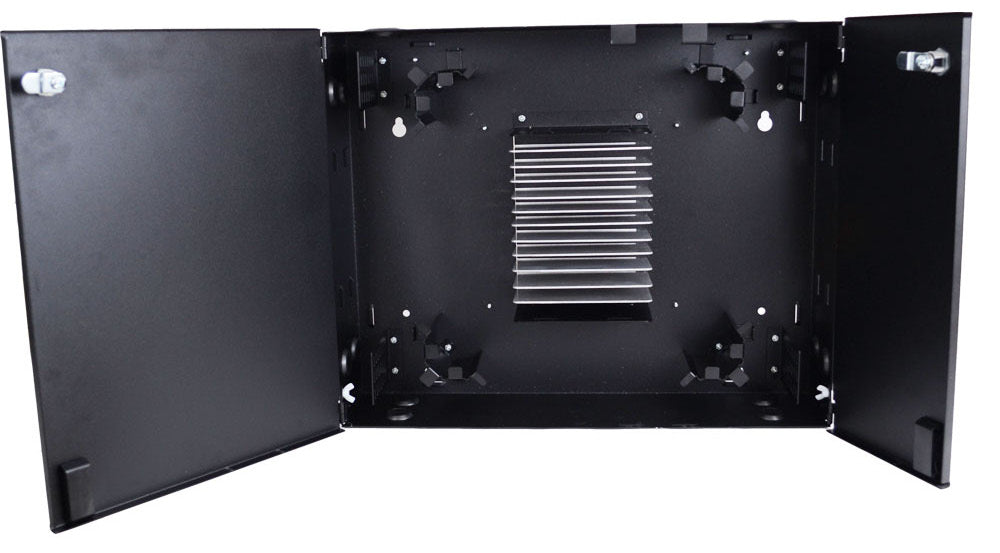

The Wall Mount Splice Enclosure provides a secure splice bay for up to (12) splice trays. Cable entry and exit holes are now located on the tops and sides of the unit, and are protected by 1.25" dust-proof grommets.

Both doors are removable for easy access and lockable for added security. Cable management rings are movable within the unit and cable tie-downs are located throughout the unit.

Constructed from lightweight, sturdy 16 gauge steel for easy installation.

Recommended splice trays is 11.72"L x 4"W (Ex. F1-SPL24).

Splice trays are not included.

Dimensions:

• 17.25" H x 21.25" W x 4.68" D

Features:

• Holds (12) Splice Trays
• Used for Splicing Only
• Dust Proof Entry Grommets
• Top, Bottom, Side Entry Holes
• Moveable Slack Holders and Cable Tie Downs
• 16 Gauge Steel
