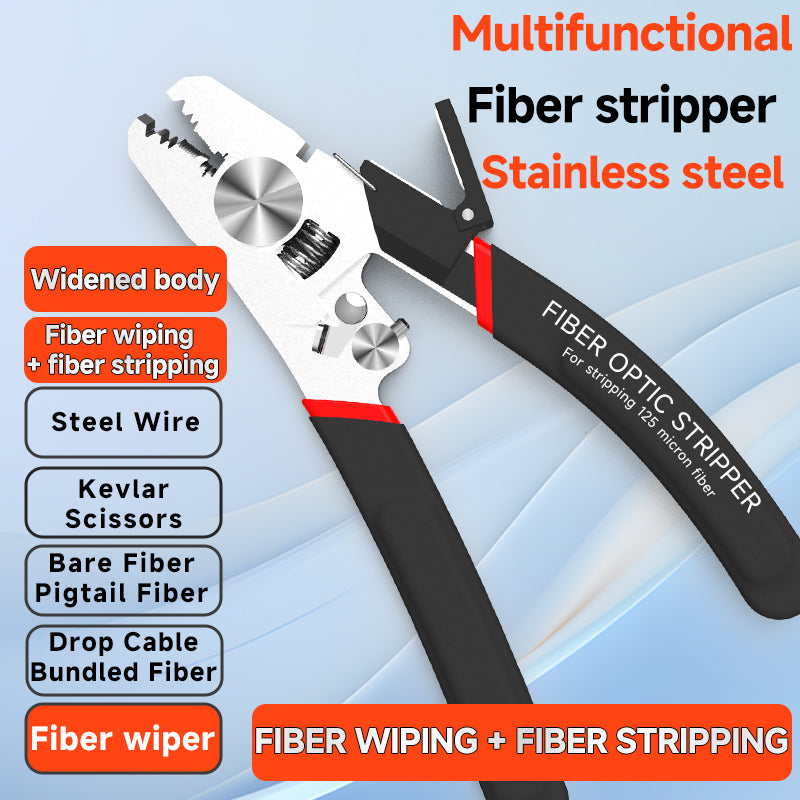

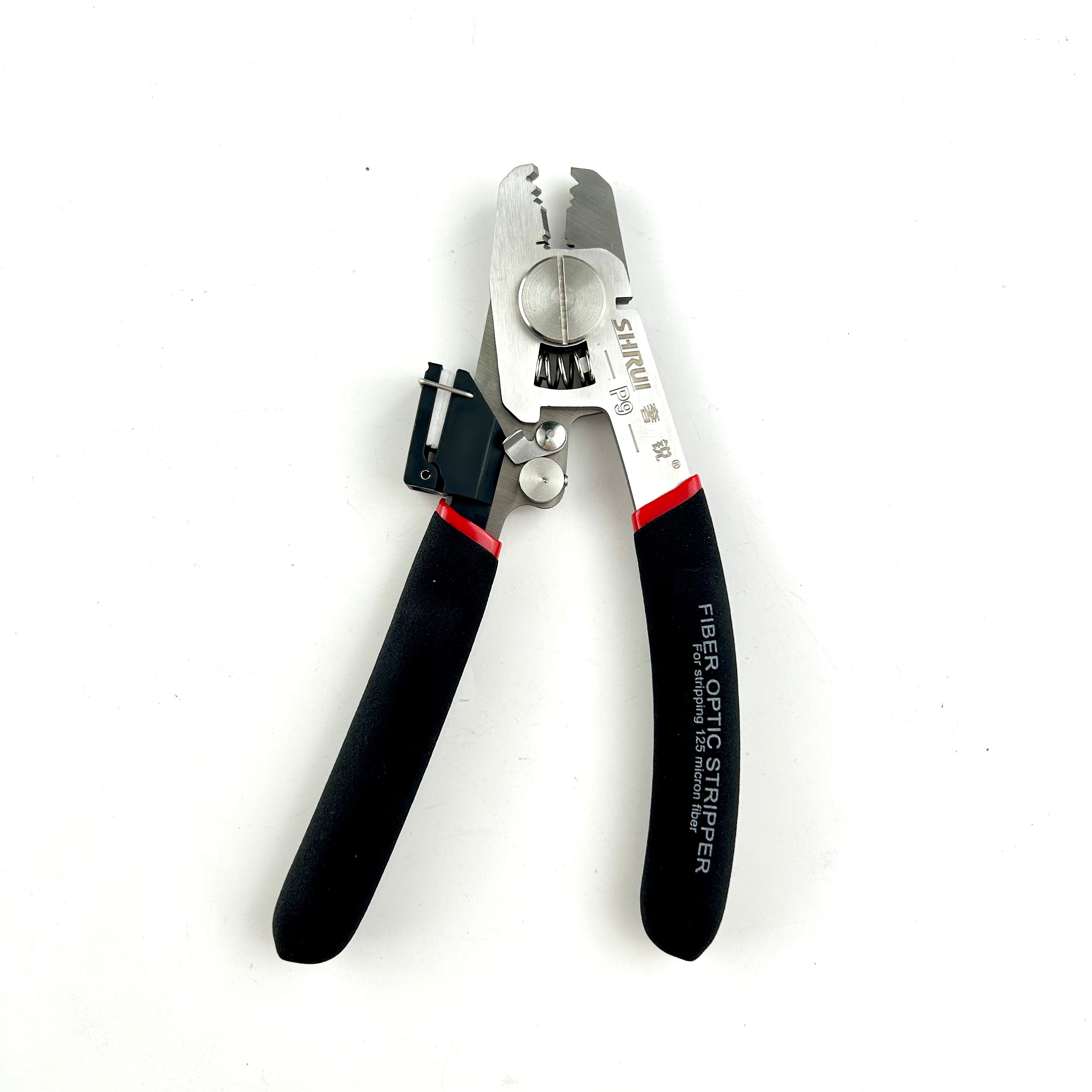

The SH-P9 Fiber Stripper is a high-precision tool designed for stripping bare fibers, drop cables, and pigtails with cladding diameters of 125μm. Crafted from 430 stainless steel and hardened to 58–60 HRC, it ensures long-lasting blade sharpness and consistent performance in both field and lab settings.

The tool features an adjustable blade opening to accommodate various fiber coating thicknesses. With a simple turn of the included 1.5mm hex wrench, you can fine-tune the opening size to avoid coating residue or fiber breakage. Whether you're prepping bare fiber or ribbon cable, the P9 provides clean, efficient stripping every time.

Download Product Spec:

• SH-P9 fiber stripper spec sheet (PDF)

Key Features

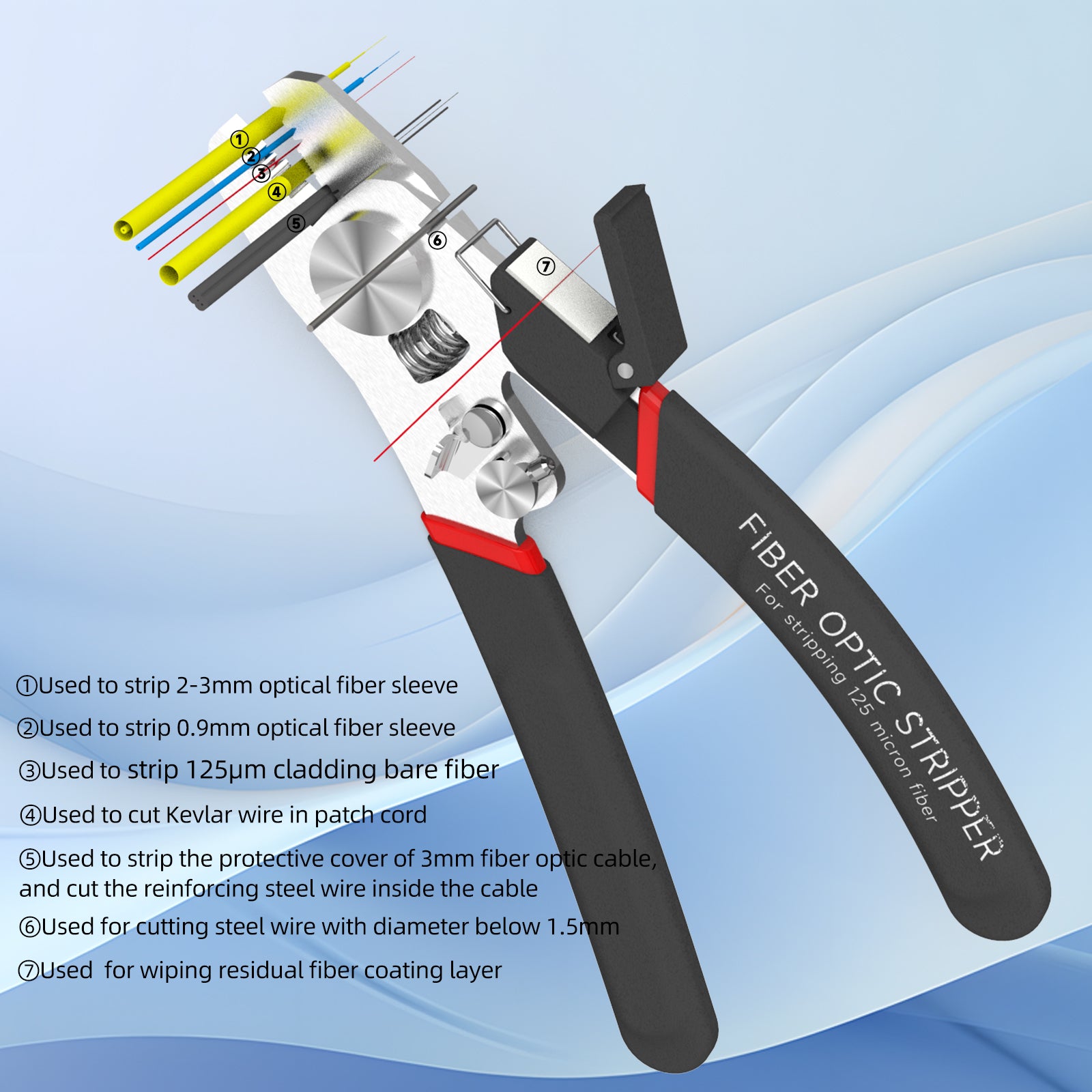

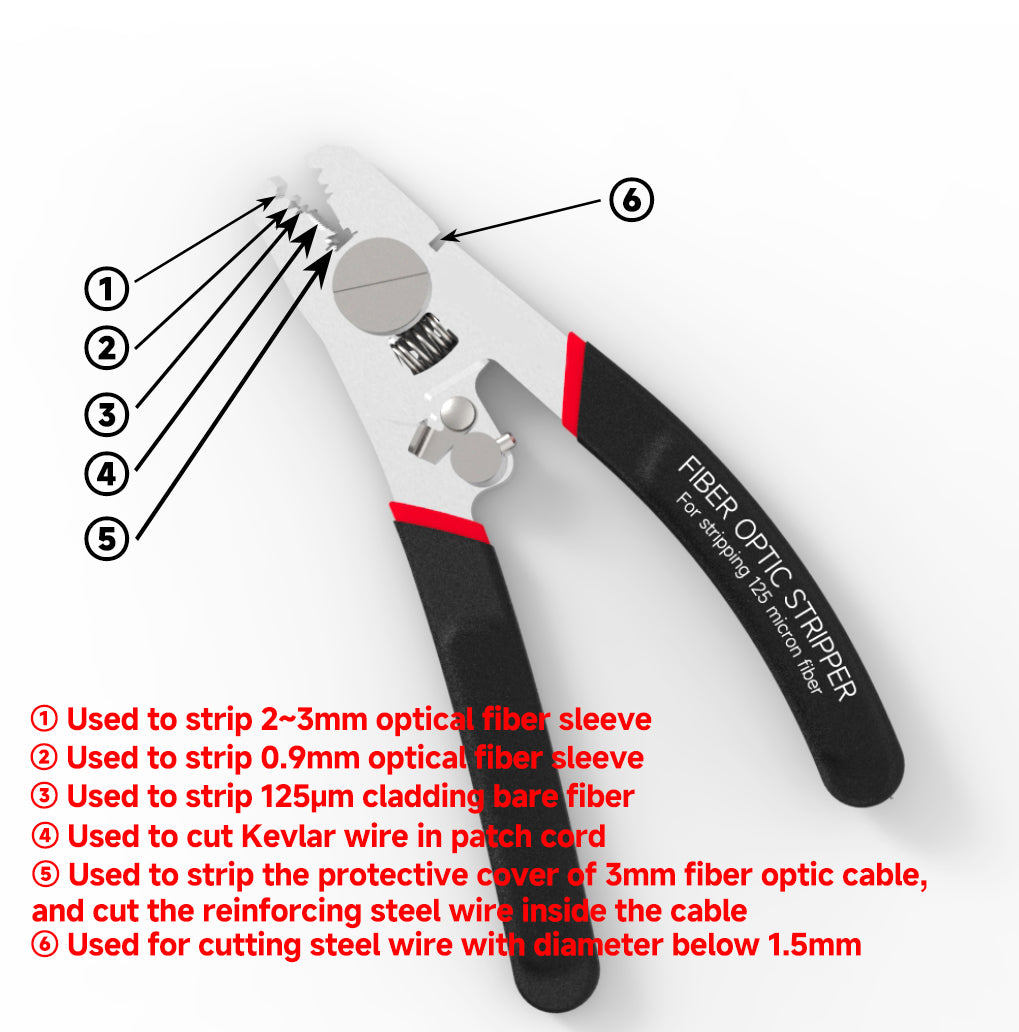

• ✅ Supports bare fiber, drop cable, and pigtail stripping

• ✅ Adjustable blade opening for perfect fit and clean stripping

• ✅ Made of 430 stainless steel, hardened to HRC 58–60

• ✅ Compact and ergonomic — fits easily in your toolkit

• ✅ Includes 1.5mm hex wrench for blade calibration

• ✅ Recommended stripping angle: perpendicular to blade

Technical Specifications

Blade Adjustment Guide

• Use the included 1.5mm hex wrench

• Clockwise: Widen blade gap (for fiber breakage issues)

• Counterclockwise: Narrow blade gap (for incomplete coating removal)

Usage Tips

• Do not use Kevlar blades to cut steel wire, copper, or plastic — this will damage the blade

• Keep the fiber perpendicular to the blade when stripping

• Use your index finger to stabilize the right side of the cable during operation
