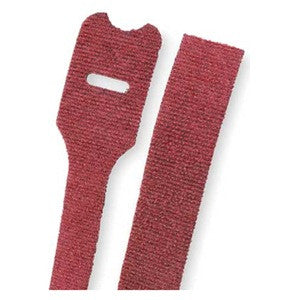

Hook & Loop Cable Tie, UL Listed, Loop Style, 12.0", Intermediate cross section, 10/pk
Features:
- UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
- Highest tensile strength of any plenum-rated Hook & Loop Ties in the industry
- Adjustable, releasable and reusable multiple times - ideal for applications requiring frequent moves, adds or changes
- Hook and loop material maintains network data integrity by protecting against over-tensioning of high performance copper and fiber cables
- Flammability rating: UL94V-2Note: Minimum 2" overlap required to achieve loop tensile rating
Specifications:
Part number | HLTP3I-X12 |
RoHS Compliancy Status | Compliant |
Part Description | Hook & Loop Cable Tie, UL Listed, Loop Style, 12.0", Intermediate cross section |
Product Type | Cable Ties |
Material | Nylon Loop, Polypropylene Hook |
Color | Maroon |
CSA Certified | Yes |
UL Listed (File #E56854) | Yes |
UL Recognized (File #E56854) | No |
Length (In.) | 12.00 |
Length (mm) | 305.0 |
Width (In.) | 0.50 |
Width (mm) | 12.7 |
CE Compliant | No |
Cross Section | Intermediate |
Head Width (In.) | 1.00 |
Head Width (mm) | 25.4 |
Locking Style | Hook & Loop |
Material Flammability Rating | UL 94V-2 |
Max. Bundle Diameter (In.) | 3.18 |
Max. Bundle Diameter (mm) | 81.0 |
Min. Bundle Diameter (In.) | 0.25 |
Min. Bundle Diameter (mm) | 6.4 |
Min. Loop Tensile Strength (Lbs.) | 40 |
Min. Loop Tensile Strength (N) | 178 |
Plenum-Rated | Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D) |
Pricing Description | Hook & Loop Tie, Plenum Loop Style, 12.0"L (305mm), .50"W (12.7mm), Maroon |
Temperature Range | 0øF ? 122øF |
Thickness (In.) | 0.100 |
Thickness (mm) | 2.5 |
