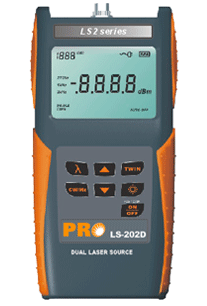

Precision Rated Optics 1310/1550nm Single Mode Laser Light Source with Auto-Wavelength Rec
Auto-Wavelength Recognition
LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.
The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. The output power is adjustable through up & down keystroke. A low battery indicator reminds the user of recharging the battery
Features:
Easy-to-use, straight forward operation
Eye-catching handheld package
LCD backlight for easy operation in darker environments
†ñ3dB Adjustable by the user.
Rechargeable battery inside
850 & 1300 availale for multimode testing
Three-year warranty and recommended calibration interval.
LS2 units can transmit with a wavelength-identification digital encrypted protocol, enabling the PM2 Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.
The LS series offer excellent stability and portability for accurate fiber optic testing. Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. The output power is adjustable through up & down keystroke. A low battery indicator reminds the user of recharging the battery.
Download Spec Sheet: Download PDF spec sheet here
Specifications:
LS-202D | LS-203D | |
Output wavelength (nm) | 1310 & 1550 | 850 & 1300 |
Emitter Type | LD | |
Output stability | Short Term (15 min.): < †ñ0.05dB @1310,1550nm; †ñ0.1dB@850 & 1300 Long Term (8 Hours ): < †ñ0.1dB @1310,1550nm;†ñ0.2dB@850 & 1300 |
|
Central Wavelength | 1310†ñ20nm & 1550†ñ20nm | 850†ñ10nm & 1300†ñ20nm |
Spectral Width | 5 nm | |
Connector | FC/PC, SC/PC, ST/PC interchangeable connectors( APC is available at the time of ordering) | |
Output Frequency (Hz) | 270, 1K, 2K | |
Output Power | - 5 dBm | |
Adjustable Range | †ñ3dB, 0.1dB/step | |
Auto Power-off | Yes | |
Back-light | Yes | |
Operating Temperature | -10 to +50 | |
Storage Temperature | -20 to+70 | |
Power supply | 2pcs * Ni-MH AA(2500mAh) | |
Dimension (mm) | 160L*76W*45H | |
Net Weight | 270 g |
Standard Accessories:
- FC/PC, SC/PC, ST/PC interchangeable connector
- Carrying Bag
- User Manual
- Worldwide compatible AC/DC power adaptor
- Battery
- Test report
Optional Accessories:
- FC/APC Connector
- SC/APC Connector
- Aluminium Carrying Box
