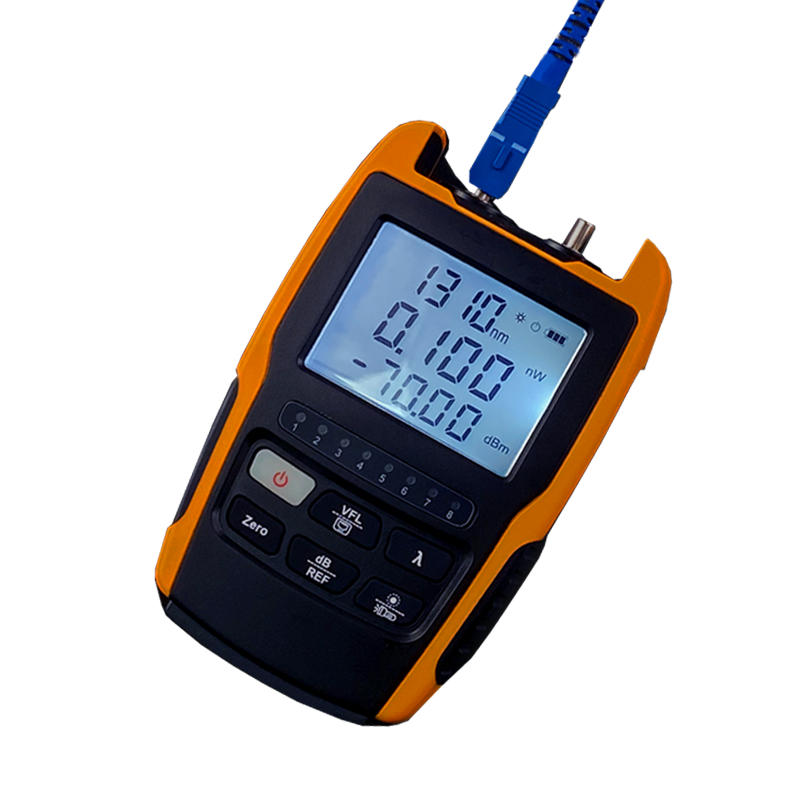

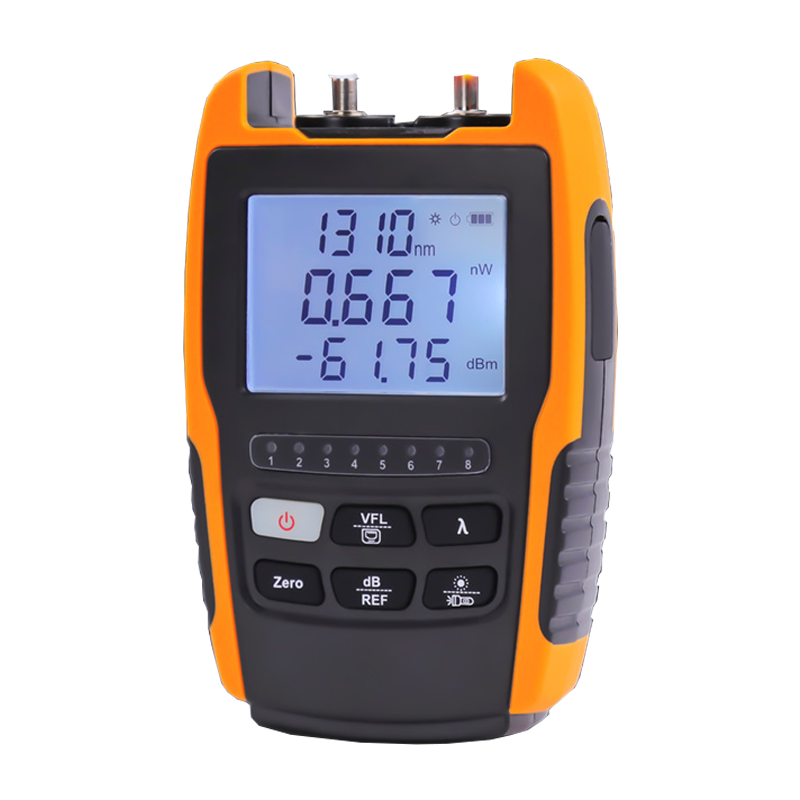

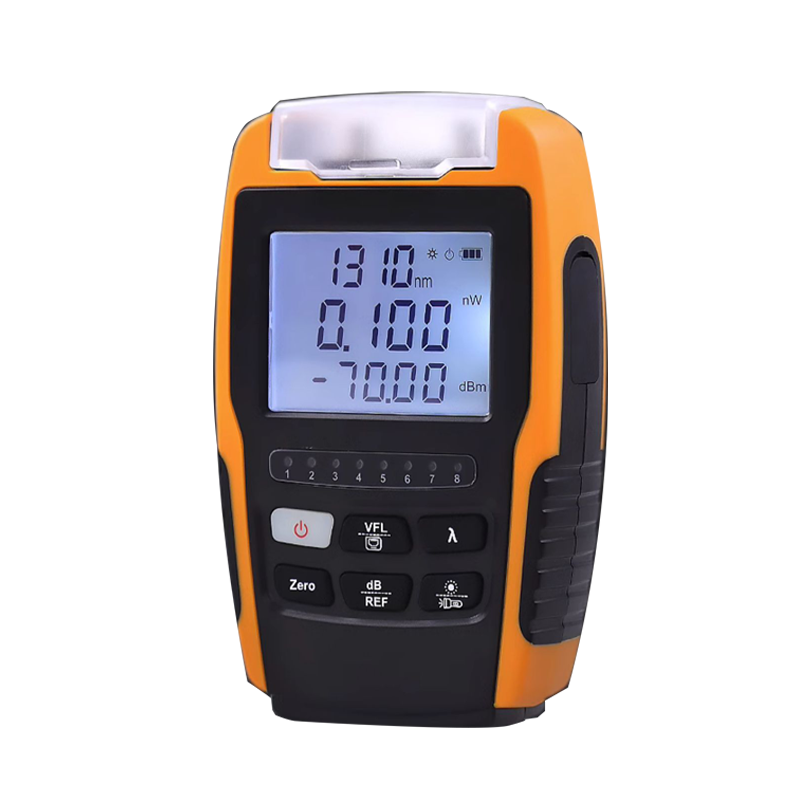

SVP21 Series All-in-One Optical Power Meter (OPM) + Visual Fault Locator (VFL)

Measure. Locate. Diagnose — All in One Compact Tool.

The SVP21 Series is a multifunctional, handheld fiber optic tester that integrates four essential tools into a single rugged device: Optical Power Meter (OPM), Visual Fault Locator (VFL), Network Cable Sequencer, and Light. It is built for professionals who need high precision, portability, and speed in one package — whether for fiber network installation, maintenance, or troubleshooting.

With a wide dynamic power measurement range (up to -70~+26 dBm depending on model) and support for 850 to 1625nm wavelengths, it covers almost all standard telecom, CATV, and LAN applications. Additional features like RJ45 cable testing, wavelength memory, user zeroing, Type-C charging, and super-bright LED backlighting make this device ideal for both field and lab work.

Download Product Spec Sheet:

• SH-SVP21 OPM + VFL spec sheet (PDF)

Key Features

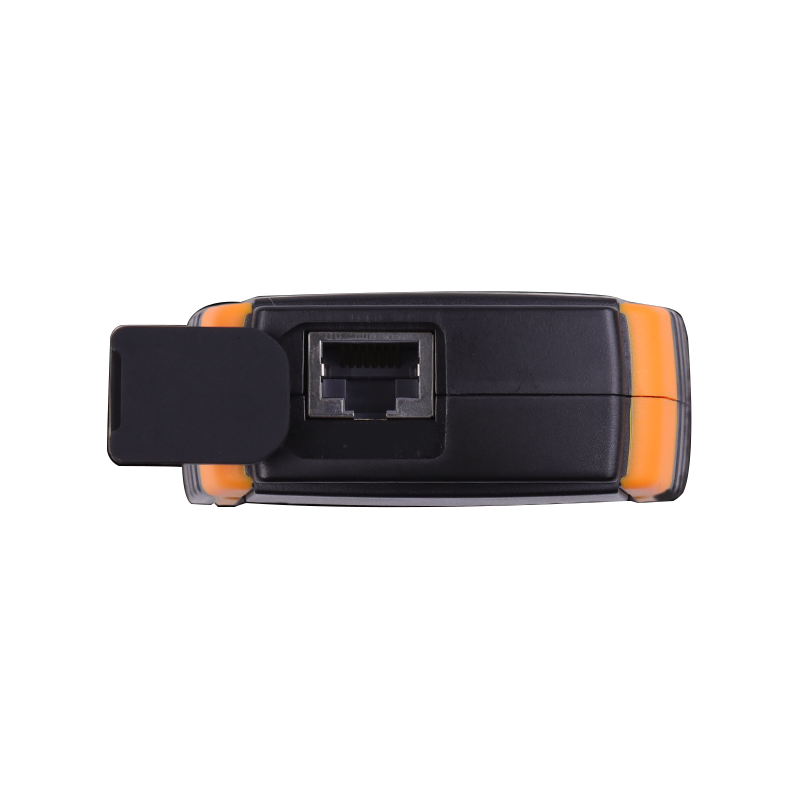

• ✅ Combines OPM, VFL, RJ45 network tester, and sequencer in one unit

• ✅ Supports 850/980/1300/1310/1490/1550/1577/1625nm wavelengths

• ✅ Wide power measurement range from -70 dBm to +26 dBm

• ✅ Red laser VFL output: 10mW / 20mW / 30mW

• ✅ Real-time display of linear and logarithmic readings

• ✅ Wavelength memory & auto power-off

• ✅ LED backlight for night use; supports zero calibration

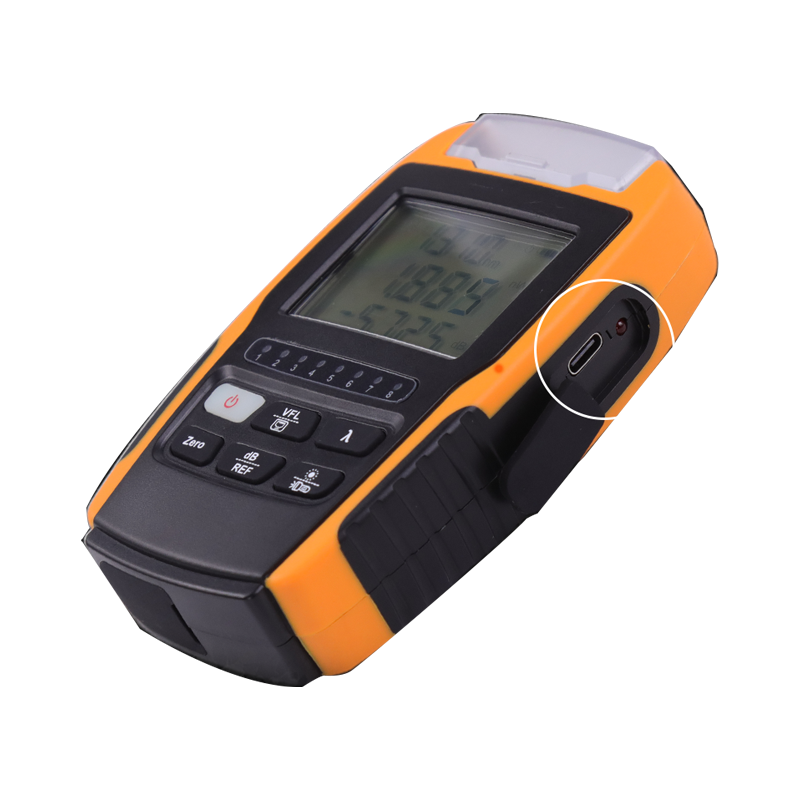

• ✅ Charges via power bank, PC, or wall adapter (Type-C)

• ✅ Compatible with SC, FC, and ST connectors

Model Variants & Measurement Ranges

Technical Specifications
