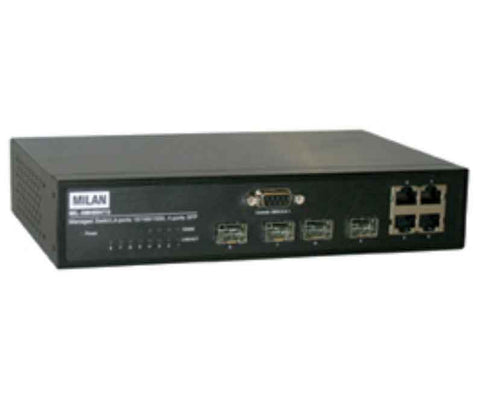

4-port 10/100/1000BASE-T managed switch with four dual-speed 100/1000 SFP/RJ45 ports
Features:
- 4-port 10/100/1000BASE-T
- (4) 100/1000BASE-X SFP ports
- Auto MDI/MDI-X
- Non-blocking switching architecture
- IEEE 802.1q VLAN tagging GVRP/MVR
- IEEE 802.1p Class of Service 4 priority queues
- IGMP query and snooping
- 802.1X Authentication
- Port Mirroring
- 8K MAC Address
- Telnet/Web-based management
- TFTP firmware upgrade
- TFTP firmware upgrade
- Auto-Negotiation
- Forced modes, 10H/10H/100H/100F/1000F
- Auto-MDIX on all ports
- 802.3X Flow control
- Back-pressure
- X-Ring Support
- 1Mbps Buffer
- Broadcast storm filter
- DHCP Client, Relay, Server
- SNTP and SMTP support
- MAC Address Security
- Bandwidth Allocation
- An important feature found on select converters which allows network administrators to set the bandwidth of the converter to 64KB increments via SNMP management.
- QoS port-based/Tag based, IPv4, Tos/Ipv4, IPv6, DiffServ
- Ingress & Egress MAC address filter & static source MAC address lock
- Management: Remote IP-Based Management, Web
- Management, SNMP V1/2/3, Telnet, Menu based CLI
- Firmware update: TFTP firmware upgrade and configuration backup
- System default: Restore function for system default
- Port Trunk: Supports IEEE802.3ad port trunk with link
- aggregation control protocol (LACP). The trunk group up to
- 2 and maximum trunk port member up to 2 ports.
- VLAN: Port based-VLAN; IEEE802.1Q Tag based VLAN (256 entries), VLAN ID up to 4094, QinQ, 256 GVRP groups
- Quality of Service: Support port based, Tag based and IPv4 ToS
- Class of Service: 4 priority queues
- Spanning Tree: Supports IEEE802.1w rapid spanning tree and IEEE 802.1d
- Port Mirror: Supports TX/RX/Bi-Directional packet mirror
- IGMP: Supports IGMP V1, V2
- Storm Control: Bandwidth Allocation on Broadcast
Specifications:
| Standards | IEEE Std. 802.3 10BASE-T; IEEE Std. 802.3u 100BASE-TX; IEEE Std. 802.3z Gigabit fiber; IEEE Std. 802.3ab 1000BASE-T; IEEE Std. 802.3x Flow control and Back-pressure; IEEE Std. 802.3ad Port trunk with LACP; IEEE Std. 802.1d Spanning Tree Protocol; IEEE Std. 802.1w Rapid spanning tree; IEEE Std. 802.1p Class of service IEEE Std. 802.1q VLAN Tagging IEEE Std. 802.1x user authentication |
| Protocols | CSMA/CD |
| Technology | Store and Forward switching architecture |
| Connectors | 10/100/1000 copper: 4x RJ-45 with AutoCross (Auto MDI/MDI-X), 4 100/1000 SFP ports, 1 RS-232 D B-9 Female |
| MAC Address | 8K MAC address table |
| Packet Buffer | 1Mbits |
| Network Cable |
10BASE-T:2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100 m) 100BASE-TX:2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100 m); 1000BASE-T:4-pair UTP/STP Cat. 5e cable; EIA/TIA-568 100-ohm (100 m) |
| Backplane | 16Gbps |
| LEDs |
RJ-45 port:10/100/1000; Link/Activity; Full duplex/Collision Fiber:Link/Activity Power:On/Off |
| Power Supply | Internal power: 100 240VAC 50/60Hz |
| Power Consumption | 15 watts max. |
| Operating Temperature | 0° to 45°C (32° to 113°F) |
| Operating humidity | 10% to 90% (non-condensing) |
| Dimensions |
Width:8.54 [217 mm] Depth:5.51 [140 mm] Height:1.69 [43 mm] |
| EMI | FCC Class A, CE Mark |
| Safety Compliance | UL, cUL |
