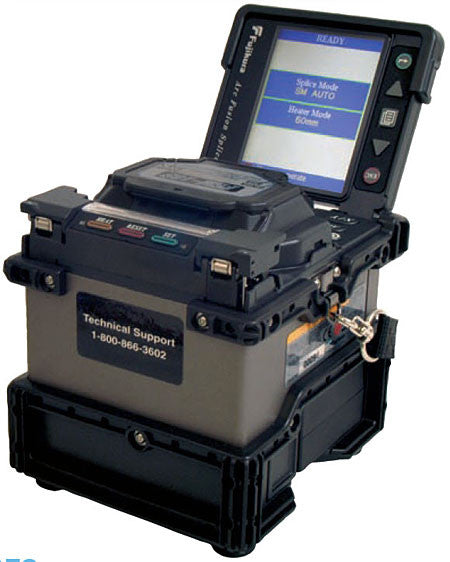

AFL FSM-18S Cladding Alignment Fusion Splicer Kit

AFL Part No.: S014527

  • $ 8,250.00 or
  • per kit



The FSM-18S Fusion Splicer is a low cost, fixed V-groove, single fiber fusion splicer with the same robust features offered in other high end models. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and withstands a 30 drop test.

New features such as automatic tube heater operation, user-selectable clamping method (sheath clamp or fiber holder system), automated monitor image orientation, and battery charge capability during splicer operation provide the end user a reliable productivity tool. New software is included with each splicer and provides the user with the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.

Features:

  • Rugged construction providing shock, dust and moisture resistance
  • Dual monitor position with automatic image orientation
  • Automatic arc calibration
  • User-selectable fiber clamping method sheath clamp or fiber holders
  • Auto-start tube heater
  • Color LCD display and anti-reflective coating for excellent visibility in bright sunlight
  • Simultaneous battery charge and splicer operation
  • Long life battery (up to 150 splice/heat cycles per charge)
  • Detachable work table incorporated into the transit case
  • Data and video download software and splicer upgrade software included; software upgrades through PC application via the internet
  • Green friendly RoHS & WEEE compliant

FSM-18S Fusion Splicer Includes:

  • FSM-18S Fusion Splicer Machine
  • ADC-13 AC Adapter
  • ACC-14 AC Cord
  • Spare Electrodes (pair)
  • Sheath Clamp
  • USB Cable
  • Splicer Carrying Strap
  • Quick Reference Guide
  • Video Instruction Manual
  • JP-05 Splice Sleeve Cooling Tray
  • Transit Case with Carrying Strap
  • 1 Year Warranty

Download Product Spec Sheet:

AFL FSM-18S Cladding Alignment Fusion Splicer Spec Sheet (PDF)
