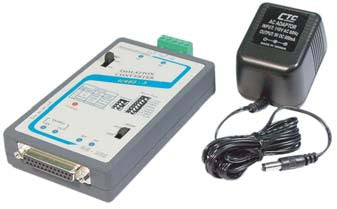

The IC485-3 is a DC powered interface converter that allows full conversion between RS-232 and RS-485 interfaces. The converter requires an external AC adapter. The converter provides a high degree of electrical isolation between the serial interfaces. It has DCE/DTE selection for RS232 port and can operate 2 or 4 wire, full or half duplex on the RS485 port. LEDs report status of both interfaces. One typical application for this converter is extension of an RS-232 interface over longer distances using 2 or 4 wire copper circuits.

Features of IC485-3 interface converter

• Baud Rate: up to 115.2Kbps
• RS-485 2 or 4 wire, Half or Full Duplex operation
• Electrical isolation: 2500V minimum
• DCE/DTE device setting switch
• RTS/CTS control switch for Half/Full duplex operating mode
• Required DC external power

Technical specifications

• Data Rate: 1200, 2400. 4800. 9600. 19.2K, 38.4K, 57.6K or 115.2Kbps
• Connectors: RS-232 DB25 female connector, RS-485 5 screw terminal block
• LEDs: TD/ RD/ External DC power
• Power: External 9V DC/300mA power adapter (provided with the converter)
• Temperature: 0-50§C (Operating), 20-70§C (Storage)
• Humidity: 5%-90% non-condensing
• Dimensions: 80mm x 140mm x 25mm
• Weight: 180g
